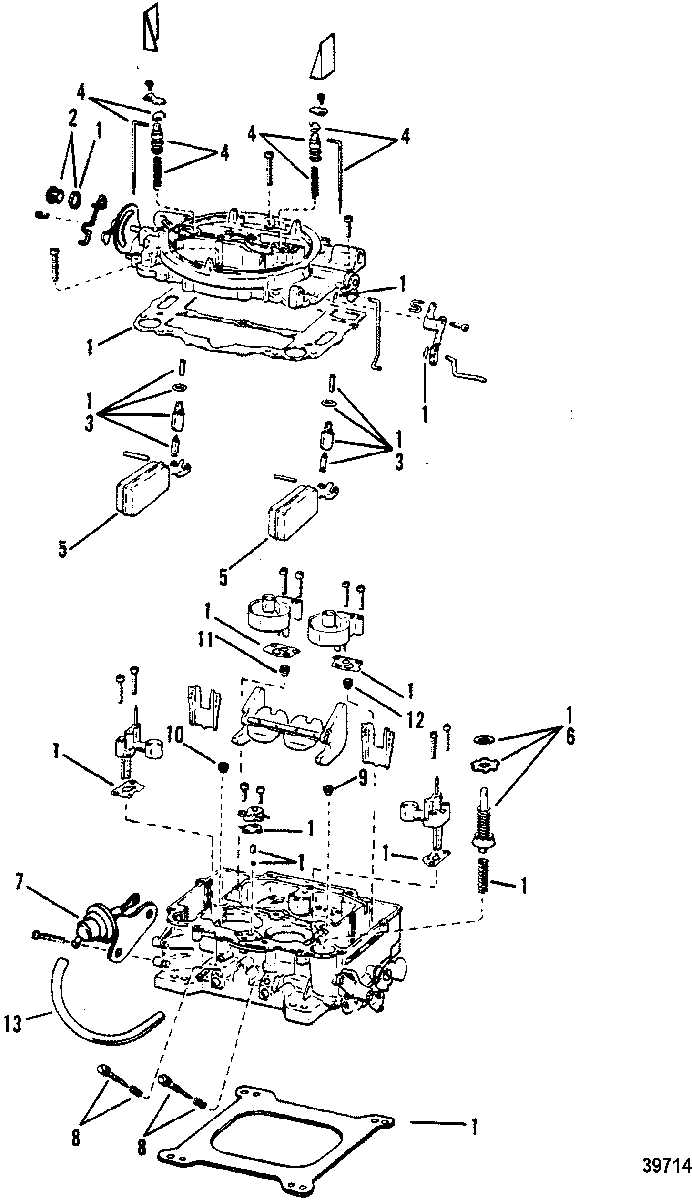

CARBURETOR(WEBER-4 BARREL) для Mercruiser - 4.3LX (GEN II) (4 BBL.) GM 262 V-6 1992-1993 0D714370 THRU 0F001219

  • №
    Артикул
    Название
  • -
    3310-807826R02 CARBURETOR
    CARBURETOR
  • 1
    8M0120196 OVERHAUL KIT
    OVERHAUL KIT
  • 2
    811533 FITTING KIT, Inlet
    FITTING KIT, Inlet
  • 3
    8M0120195 NEEDLE/SEAT KIT, Inlet
    NEEDLE/SEAT KIT, Inlet
  • 4
    811831 METERING ROD KIT
    METERING ROD KIT
  • 5
    8M0120190 FLOAT KIT
    FLOAT KIT
  • 6
    8M0120191 PLUNGER KIT, Pump
    PLUNGER KIT, Pump
  • 7
    811538 CHOKE KIT
    CHOKE KIT
  • 8
    811539 SCREW KIT, Idle Mixture
    SCREW KIT, Idle Mixture
  • 9
    823724 JET, Metering - Secondary (.089)
    JET, Metering - Secondary (.089)
  • 10
    823724 JET, Metering - Secondary (.089)
    JET, Metering - Secondary (.089)
  • 11
    823724 JET, Metering - Secondary (.089)
    JET, Metering - Secondary (.089)
  • 12
    823724 JET, Metering - Secondary (.089)
    JET, Metering - Secondary (.089)
  • 13
    32-1430165 TUBING, (38.00 Inches Bulk)
    TUBING, (38.00 Inches Bulk)
