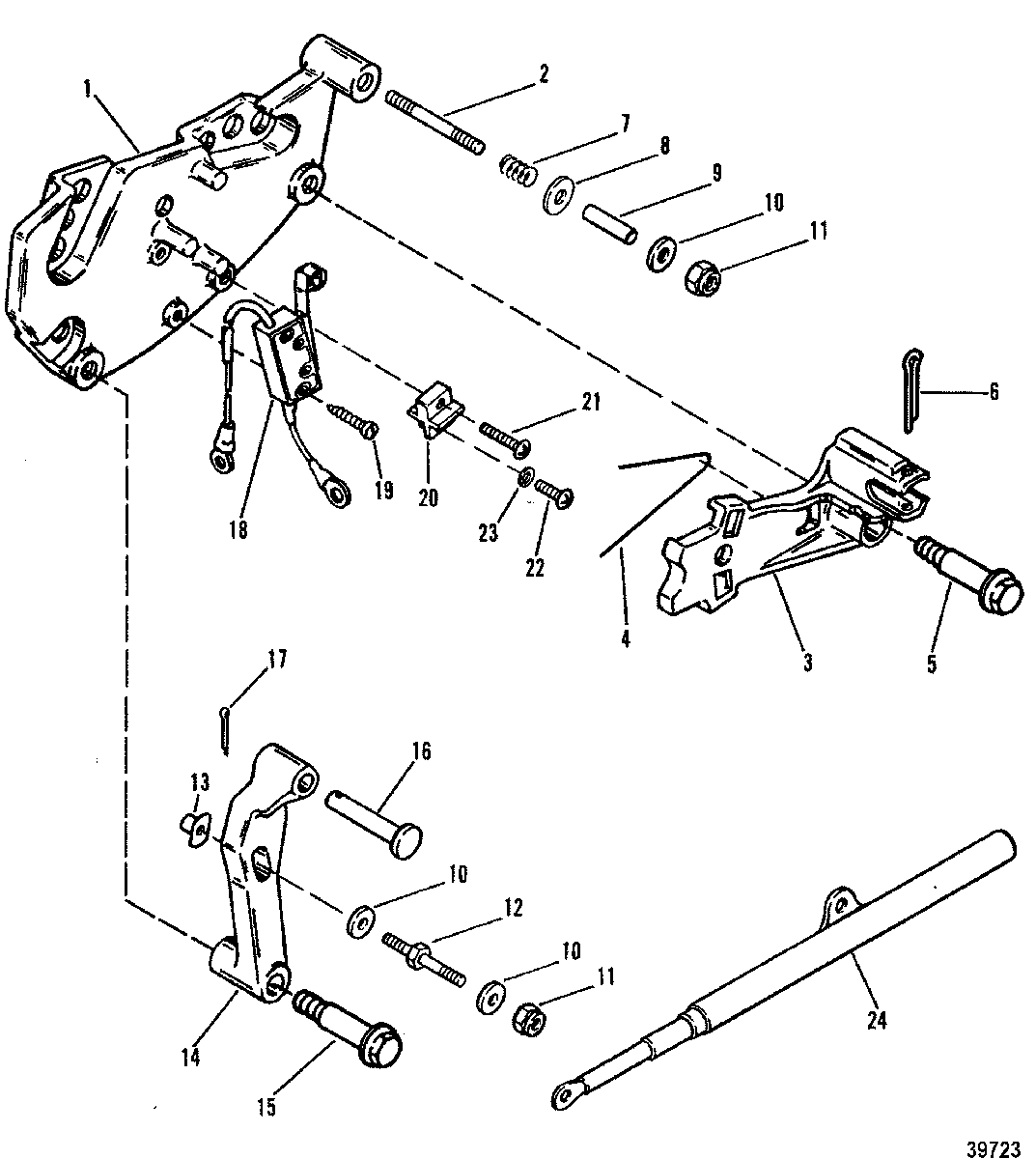

SHIFT BRACKET для Mercruiser - 4.3LX (GEN II) (4 BBL.) GM 262 V-6 1992-1993 0D714370 THRU 0F001219
-
№АртикулНазвание
-
1807962A15 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
2865149A02 STUDSTUD
-
313051A4 LEVER ASSEMBLY, ActuatingLEVER ASSEMBLY, Actuating
-
424-862850 SPRINGSPRING
-
510-865148 SCREW, (.312-18 x 1.843), ShoulderSCREW, (.312-18 x 1.843), Shoulder
-
618-328571 COTTER PINCOTTER PIN
-
724-98880 SPRINGSPRING
-
812-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
9865149A02 SPACERSPACER
-
1012-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1111-8267119 NUT, (.250-28)NUT, (.250-28)
-
1216-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable AnchorSTUD, (.250-28 x 2.00), Throttle Cable Anchor
-
1311-63341 TEE NUTTEE NUT
-
1413898T06 LEVER ASSEMBLY, ShiftLEVER ASSEMBLY, Shift
-
1510-865148 SCREW, (.312-18 x 1.843), ShoulderSCREW, (.312-18 x 1.843), Shoulder
-
1617-814001 PIN, ClevisPIN, Clevis
-
1718-210711 COTTER PINCOTTER PIN
-
1839670A28 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
1910-30902 SCREW, (#6-32 x .750)SCREW, (#6-32 x .750)
-
2086-66986 TERMINAL BLOCKTERMINAL BLOCK
-
2110-96113 SCREW, (#10-32 x .880) Stainless SteelSCREW, (#10-32 x .880) Stainless Steel
-
2210-73287 SCREW, (#10-32 x .380)SCREW, (#10-32 x .380)
-
2313-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
24813995A1 GUIDE ASSEMBLY, SpringGUIDE ASSEMBLY, Spring
