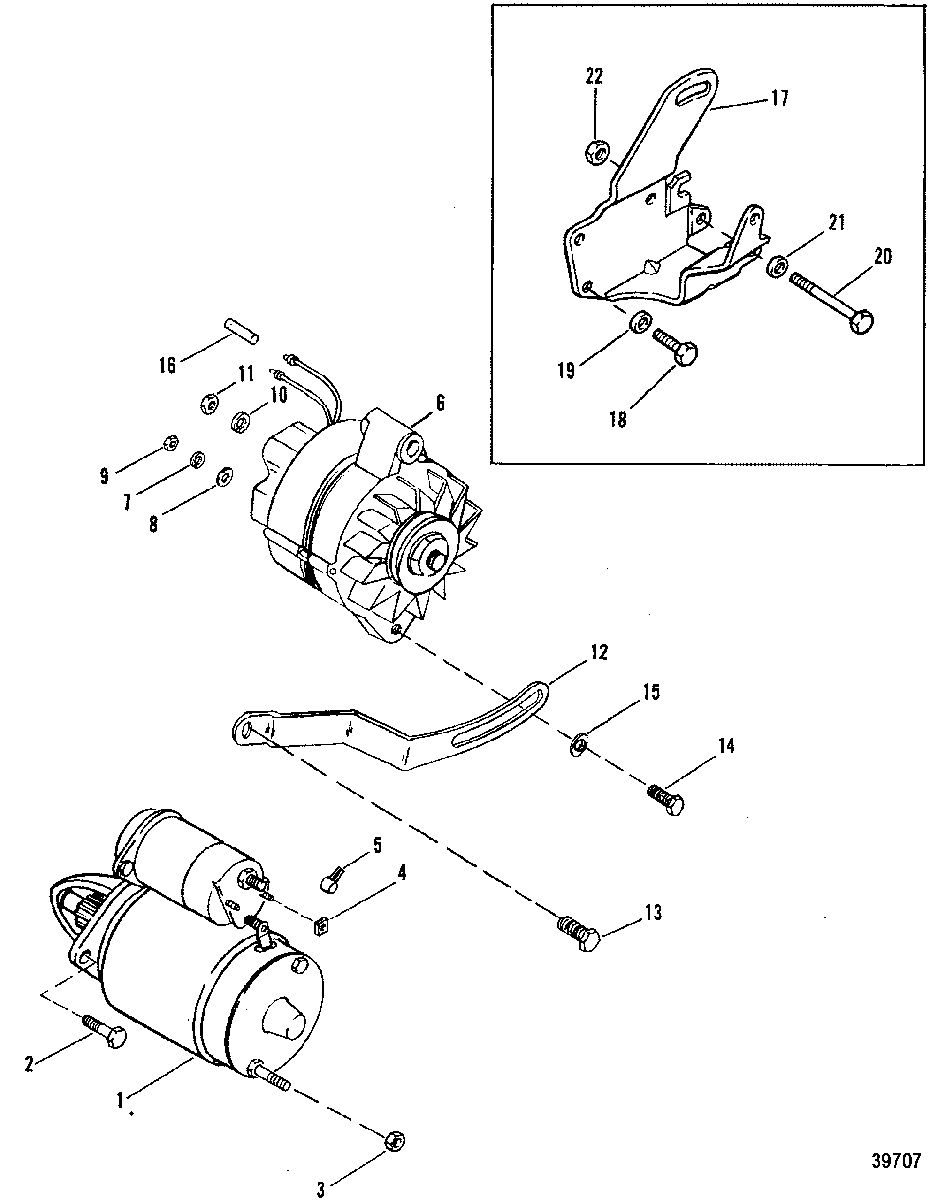

STARTER MOTOR AND ALTERNATOR для Mercruiser - 4.3LX (GEN II) (4 BBL.) GM 262 V-6 1992-1993 0D714370 THRU 0F001219

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY, 3-1/4 Diameter End Cap
    STARTER MOTOR ASSEMBLY, 3-1/4 Diameter End Cap
  • 2
    10-8053432 SCREW
    SCREW
  • 3
    11-15874 NUT, (M10)
    NUT, (M10)
  • 4
    11-400211 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 5
    85-79695T BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 6
    817119A4 ALTERNATOR
    ALTERNATOR
  • 7
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 8
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    WASHER, Phenolic (.27 x .81 x .062)
  • 9
    11-79989 NUT, (#10-24) Stainless Steel
    NUT, (#10-24) Stainless Steel
  • 10
    13-21272 LOCKWASHER, (.250)
    LOCKWASHER, (.250)
  • 11
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 12
    85013T BRACE
    BRACE
  • 13
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 14
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875)
    SCREW AND LOCKWASHER, (.312-18 x .875)
  • 15
    12-26168 WASHER
    WASHER
  • 16
    5790811 SLEEVE, (10.00 Inches Bulk)
    SLEEVE, (10.00 Inches Bulk)
  • 17
    15083T BRACKET
    BRACKET
  • 18
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 19
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 18
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 19
    12-46132 WASHER
    WASHER
  • 20
    10-56743 SCREW, (.375-24 x 3.125)
    SCREW, (.375-24 x 3.125)
  • 21
    12-34714 WASHER
    WASHER
  • 22
    11-23161 NUT, (.375-24)
    NUT, (.375-24)
