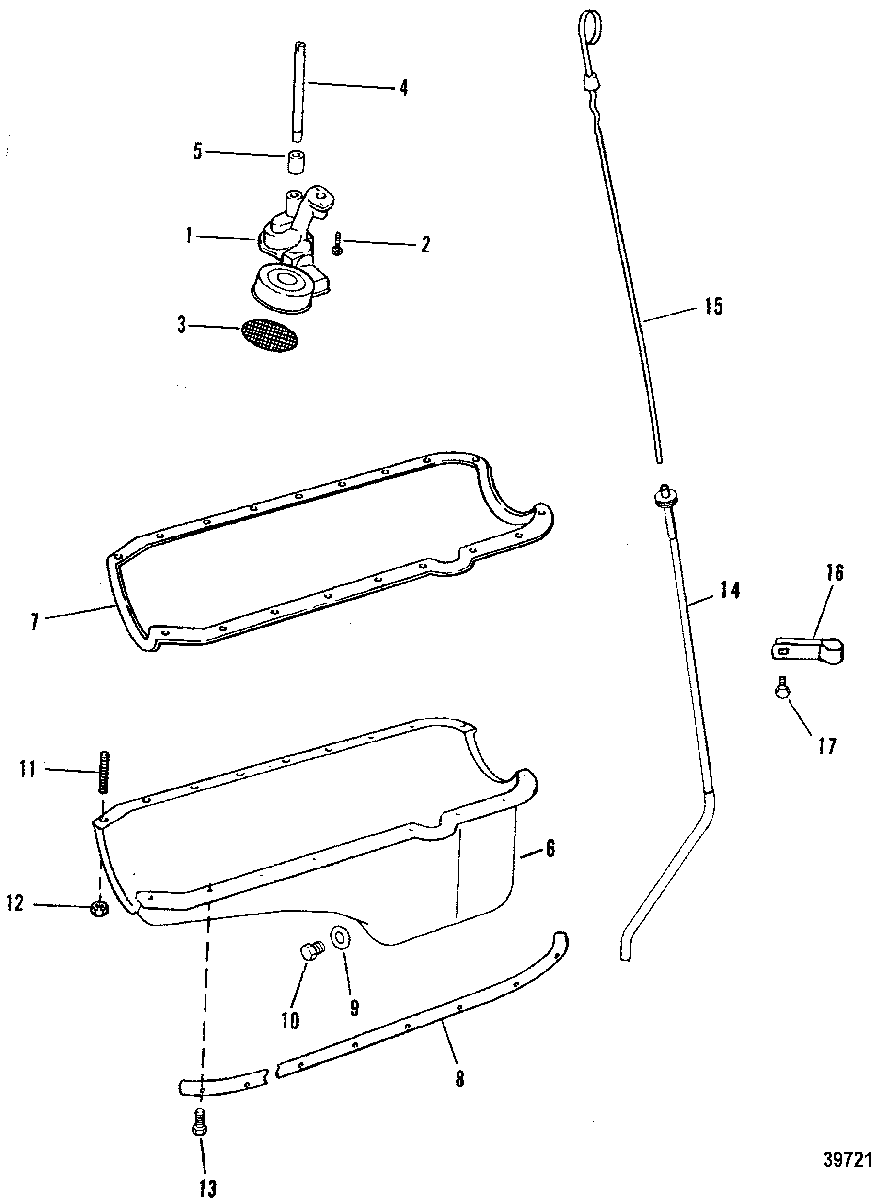

OIL PAN AND OIL PUMP для Mercruiser - 4.3LX (GEN II) (4 BBL.) GM 262 V-6 1992-1993 0D714370 THRU 0F001219

  • №
    Артикул
    Название
  • 1
    17617 PUMP, Oil
    PUMP, Oil
  • 2
    10-17346 SCREW
    SCREW
  • 3
    35354 SCREEN ASSEMBLY
    SCREEN ASSEMBLY
  • 4
    36184 SHAFT
    SHAFT
  • 5
    23-36183 RETAINER
    RETAINER
  • 6
    14244T PAN, Oil
    PAN, Oil
  • 7
    27-883964T GASKET SET
    GASKET SET
  • 8
    14245 REINFORCEMENT (RIGHT)
    REINFORCEMENT (RIGHT)
  • 8
    14246 REINFORCEMENT (LEFT)
    REINFORCEMENT (LEFT)
  • 9
    27-8M0077608 GASKET, Drain
    GASKET, Drain
  • 10
    10-49956 SCREW, Drain
    SCREW, Drain
  • 11
    16-11989 STUD, (.312-18 x 1.6718)
    STUD, (.312-18 x 1.6718)
  • 12
    11-11971 NUT, (.312-18)
    NUT, (.312-18)
  • 13
    10-72607 SCREW, (.250-20 x .375)
    SCREW, (.250-20 x .375)
  • 14
    12117A5 TUBE
    TUBE
  • 15
    86194217 GAUGE, Oil Level (DIPSTICK)
    GAUGE, Oil Level (DIPSTICK)
  • 16
    54-805625 CLIP
    CLIP
  • 17
    10-98253 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
