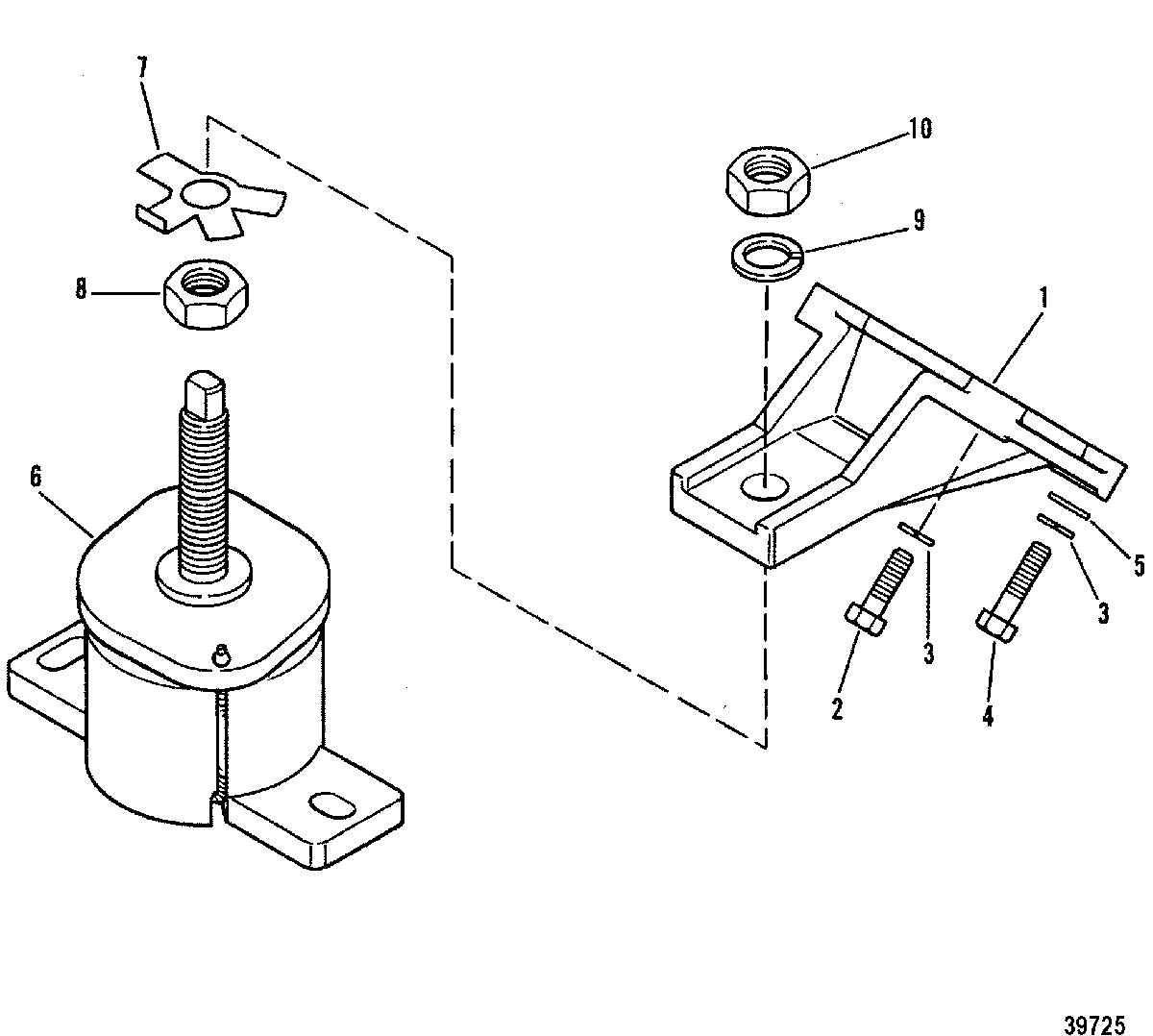

ENGINE MOUNTING для Mercruiser - 4.3LX (GEN II) (4 BBL.) GM 262 V-6 1992-1993 0D714370 THRU 0F001219

  • №
    Артикул
    Название
  • 1
    18645T BRACKET (FRONT)
    BRACKET (FRONT)
  • 2
    10-68101 SCREW, (.375-16 x 1.375)
    SCREW, (.375-16 x 1.375)
  • 3
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 4
    10-48424 SCREW, (.375-16 x 1.620)
    SCREW, (.375-16 x 1.620)
  • 5
    12-46132 WASHER
    WASHER
  • 6
    18098A3 FLUID MOUNT
    FLUID MOUNT
  • 7
    14-12657 TAB WASHER
    TAB WASHER
  • 8
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
  • 9
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 10
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
