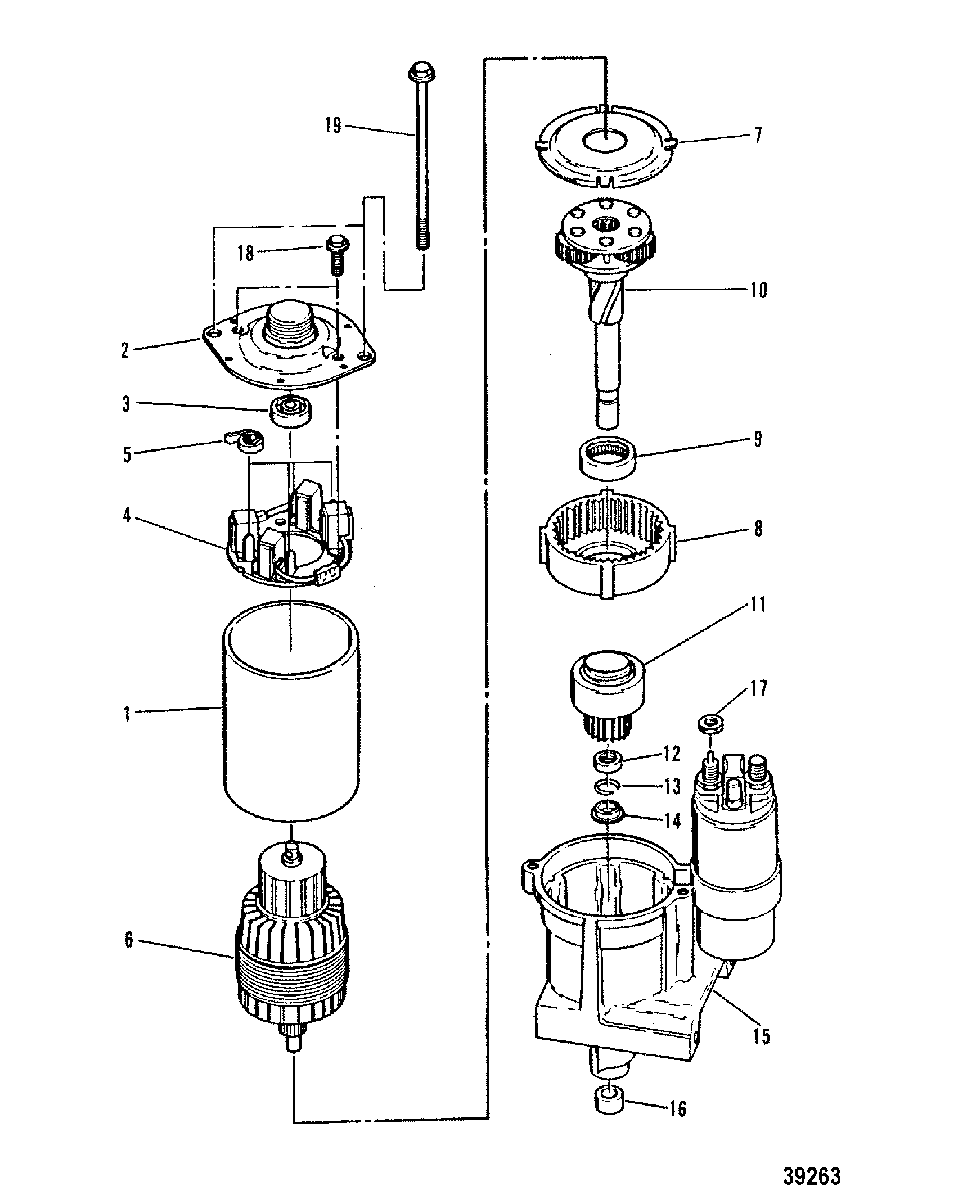

STARTER MOTOR , DELCO REMY #9000762 для Mercruiser - 4.3L (2 BBL.) GM 262 V-6 1988-1992 0B773243 THRU 0D714106

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 2
    814464 FRAME
    FRAME
  • 3
    30-814465 BEARING, Ball
    BEARING, Ball
  • 4
    814466 HOLDER, Brush
    HOLDER, Brush
  • 5
    24-814467 SPRING
    SPRING
  • 6
    814469 ARMATURE
    ARMATURE
  • 7
    811882 SHIELD
    SHIELD
  • 8
    814471 GEAR AND BEARING
    GEAR AND BEARING
  • 9
    814479 BEARING, Roller
    BEARING, Roller
  • 10
    50-863007A1 SHAFT/GEAR ASSEMBLY
    SHAFT/GEAR ASSEMBLY
  • 11
    811896 DRIVE
    DRIVE
  • 12
    33291 COLLAR
    COLLAR
  • 13
    53-33290 RING, Retaining
    RING, Retaining
  • 14
    23-809457 COLLAR
    COLLAR
  • 15
    814475 HOUSING, Drive, Includes starter switch, plunger, return spring and shift lever
    HOUSING, Drive, Includes starter switch, plunger, return spring and shift lever
  • 16
    23-814476 BUSHING
    BUSHING
  • 17
    N.S.S. Not Sold Separate, Nut
    Not Sold Separate, Nut
  • 18
    10-814468 SCREW
    SCREW
  • 19
    10-814477 THRU BOLT
    THRU BOLT
