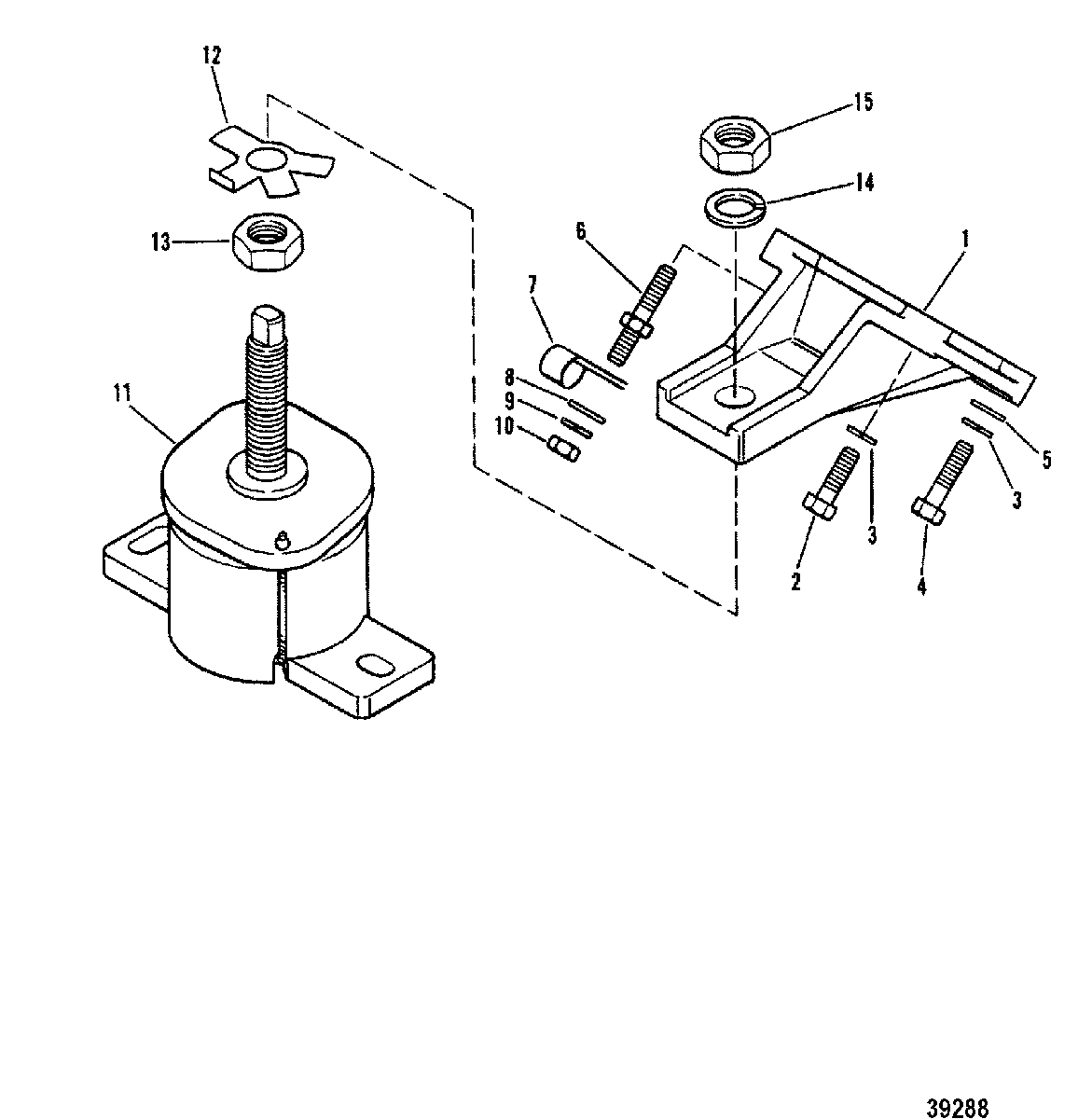

ENGINE MOUNTING, NEW DESIGN - FLUID MOUNT для Mercruiser - 4.3L (2 BBL.) GM 262 V-6 1988-1992 0B773243 THRU 0D714106

  • №
    Артикул
    Название
  • 1
    18645T BRACKET, MOUNTING (FRONT)
    BRACKET, MOUNTING (FRONT)
  • 2
    10-68101 SCREW, (.375-16 x 1.375), MOUNTING BRACKET
    SCREW, (.375-16 x 1.375), MOUNTING BRACKET
  • 3
    13-35048 LOCKWASHER, (.375), BRACKET SCREW
    LOCKWASHER, (.375), BRACKET SCREW
  • 4
    10-48424 SCREW, (.375-16 x 1.620), MOUNTING BRACKET
    SCREW, (.375-16 x 1.620), MOUNTING BRACKET
  • 5
    12-46132 WASHER, BRACKET TO SCREW
    WASHER, BRACKET TO SCREW
  • 6
    16-861316 STUD, (.375-16 x 2.750) Special, MOUNTING BRACKET
    STUD, (.375-16 x 2.750) Special, MOUNTING BRACKET
  • 7
    54-78945 J CLAMP, Harness Support
    J CLAMP, Harness Support
  • 8
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 9
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 10
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 11
    18098A3 FLUID MOUNT
    FLUID MOUNT
  • 12
    14-12657 TAB WASHER
    TAB WASHER
  • 13
    11-20739 NUT, (.750-16), JAM
    NUT, (.750-16), JAM
  • 14
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 15
    11-20739 NUT, (.750-16), JAM
    NUT, (.750-16), JAM
