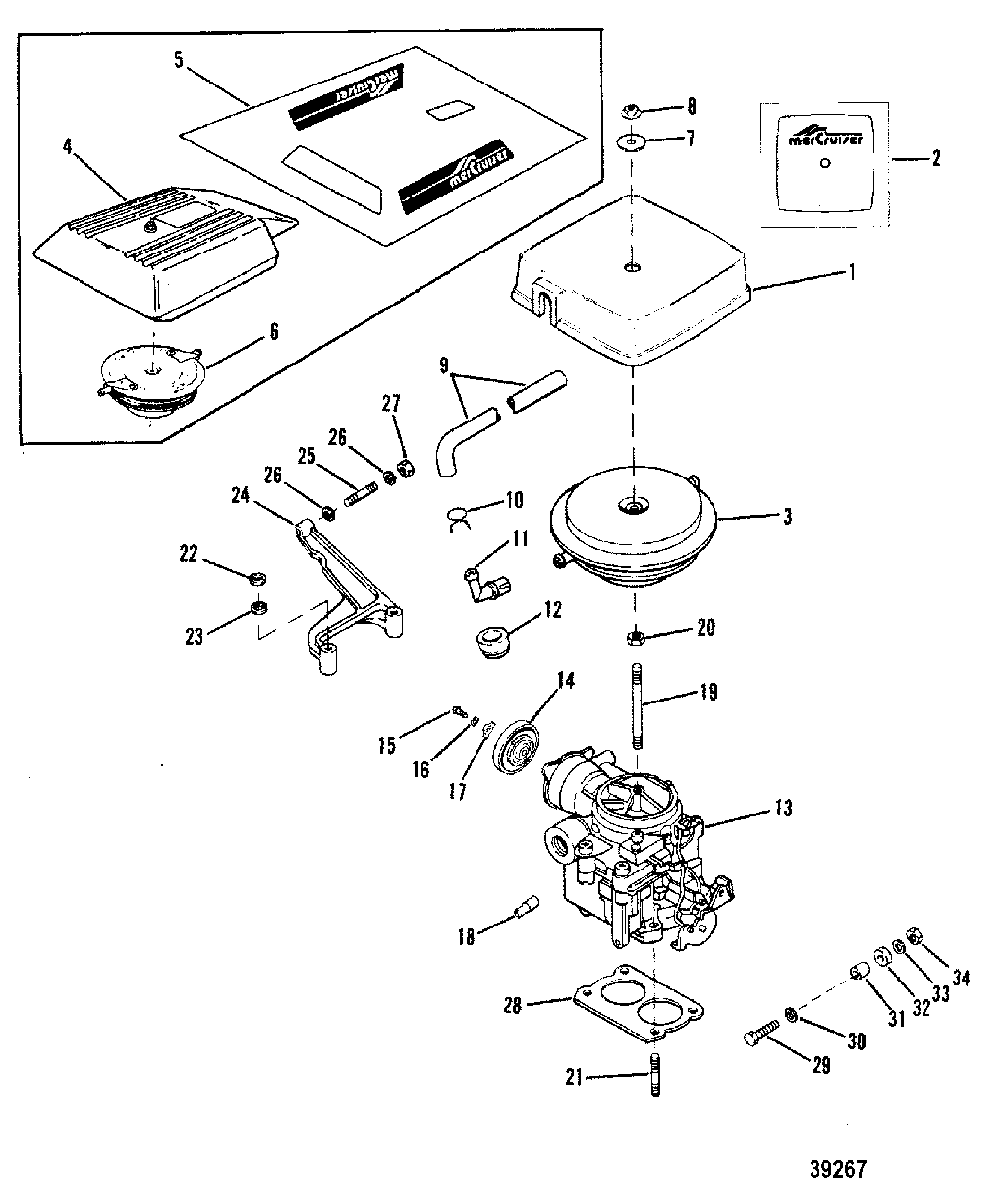

CARBURETOR AND THROTTLE LINKAGE(175 - 4.3L) для Mercruiser - 4.3L (2 BBL.) GM 262 V-6 1988-1992 0B773243 THRU 0D714106

  • №
    Артикул
    Название
  • 1
    15414A7 COVER, CARBURETOR
    DESIGN I
    COVER, CARBURETOR
    DESIGN I
  • 2
    37-1372320 DECAL, CARBURETOR COVER
    175 ALPHA ONE - DESIGN I
    DECAL, CARBURETOR COVER
    175 ALPHA ONE - DESIGN I
  • 2
    37-1372329 DECAL, CARBURETOR COVER
    4.3L - DESIGN I
    DECAL, CARBURETOR COVER
    4.3L - DESIGN I
  • 3
    86271 FLAME ARRESTOR, CARBURETOR
    DESIGN I
    FLAME ARRESTOR, CARBURETOR
    DESIGN I
  • 4
    18484A3 COVER, CARBURETOR
    DESIGN II
    COVER, CARBURETOR
    DESIGN II
  • 5
    37-812776A1 DECAL SET, COVER
    DESIGN II
    DECAL SET, COVER
    DESIGN II
  • 6
    805016A1 FLAME ARRESTOR
    DESIGN II
    FLAME ARRESTOR
    DESIGN II
  • 7
    12-86400 WASHER, SEALING
    WASHER, SEALING
  • 8
    11-826709109 NUT, (.250-28), SILENCER ADAPTER
    NUT, (.250-28), SILENCER ADAPTER
  • 9
    32-8M0062669 HOSE (11-1/4")
    HOSE (11-1/4")
  • 9
    32-8M0086022 HOSE, Breather (CORRUGATED)
    HOSE, Breather (CORRUGATED)
  • 10
    54-53101 CLAMP, VENT HOSE
    CLAMP, VENT HOSE
  • 11
    97850T ELBOW, 90 Degree, Breather - VENT HOSE
    ELBOW, 90 Degree, Breather - VENT HOSE
  • 11
    47957 CONNECTOR, VENT HOSE (STRAIGHT)
    CONNECTOR, VENT HOSE (STRAIGHT)
  • 12
    23-8M0071559 GROMMET, ROCKER COVER
    GROMMET, ROCKER COVER
  • 13
    3310-807764A1 CARBURETOR ASSEMBLY (MERCARB)
    CARBURETOR ASSEMBLY (MERCARB)
  • 14
    70125A02 COVER, Choke
    COVER, Choke
  • 15
    10-33047 SCREW, CHOKE COVER
    SCREW, CHOKE COVER
  • 16
    13-26995 LOCKWASHER, (#8) Stainless Steel, COVER SCREW
    LOCKWASHER, (#8) Stainless Steel, COVER SCREW
  • 17
    54-33036 RETAINER, COVER SCREW
    RETAINER, COVER SCREW
  • 18
    22-54090 ELBOW, CARBURETOR
    ELBOW, CARBURETOR
  • 19
    16-97012 STUD, FLAME ARRESTOR
    STUD, FLAME ARRESTOR
  • 20
    11-8267139 NUT, JAM - FLAME ARRESTOR
    NUT, JAM - FLAME ARRESTOR
  • 21
    16-8M0113177 STUD, (.312 x 1.500), CARBURETOR
    STUD, (.312 x 1.500), CARBURETOR
  • 21
    16-70237 STUD, (.312-18/.312-24 x 2.620), CARBURETOR
    STUD, (.312-18/.312-24 x 2.620), CARBURETOR
  • 22
    11-862902 NUT, (.9375-24), CARBURETOR STUD
    NUT, (.9375-24), CARBURETOR STUD
  • 23
    12-20084 WASHER, (.328 x .562 x .062), CARBURETOR STUD
    WASHER, (.328 x .562 x .062), CARBURETOR STUD
  • 24
    805489T BRACKET, THROTTLE CABLE
    BRACKET, THROTTLE CABLE
  • 25
    16-38525 STUD, THROTTLE CABLE
    STUD, THROTTLE CABLE
  • 26
    12-24664 WASHER, (M4 x 20), THROTTLE CABLE STUD
    WASHER, (M4 x 20), THROTTLE CABLE STUD
  • 27
    11-826709109 NUT, (.250-28), THROTTLE CABLE STUD
    NUT, (.250-28), THROTTLE CABLE STUD
  • 28
    27-8079821 GASKET, CARBURETOR TO INTAKE MANIFOLD
    GASKET, CARBURETOR TO INTAKE MANIFOLD
  • 29
    10-98509 SCREW, THROTTLE CABLE TO CARBURETOR
    SCREW, THROTTLE CABLE TO CARBURETOR
  • 30
    12-56681 WASHER, (.203 x .500 x .032), THROTTLE CABLE SCREW
    WASHER, (.203 x .500 x .032), THROTTLE CABLE SCREW
  • 31
    23-57938 BUSHING, THROTTLE CABLE SCREW
    BUSHING, THROTTLE CABLE SCREW
  • 32
    23-34948 SPACER, THROTTLE CABLE SCREW
    SPACER, THROTTLE CABLE SCREW
  • 33
    12-847883 WASHER, THROTTLE CABLE SCREW
    WASHER, THROTTLE CABLE SCREW
  • 34
    11-8267086 NUT, (#10-32), THROTTLE CABLE SCREW
    NUT, (#10-32), THROTTLE CABLE SCREW
  • -
    27-11977A92 GASKET SET
    GASKET SET
