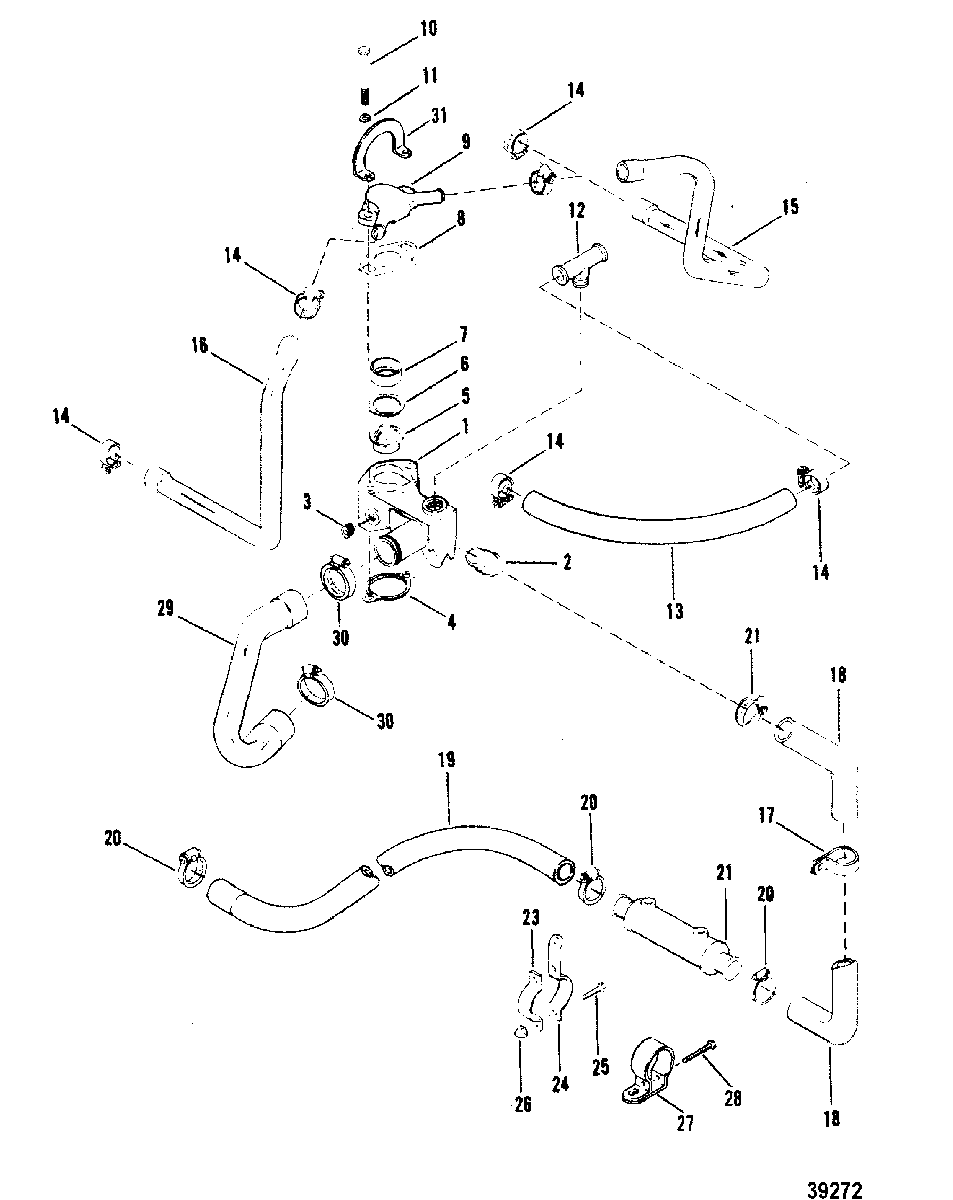

STANDARD COOLING SYSTEM , OLD DESIGN для Mercruiser - 4.3L (2 BBL.) GM 262 V-6 1988-1992 0B773243 THRU 0D714106

  • №
    Артикул
    Название
  • 1
    87290A4 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 2
    23-47511 SLEEVE, THERMOSTAT HOUSING
    SLEEVE, THERMOSTAT HOUSING
  • 3
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 4
    27-530451 GASKET, THERMOSTAT HOUSING
    GASKET, THERMOSTAT HOUSING
  • 5
    8M0089715 THERMOSTAT, (140 Degrees) (143 DEGREES)
    THERMOSTAT, (140 Degrees) (143 DEGREES)
  • 6
    27-47510 GASKET, THERMOSTAT
    GASKET, THERMOSTAT
  • 7
    23-47508T SLEEVE, THERMOSTAT
    SLEEVE, THERMOSTAT
  • 8
    27-41812 GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 9
    47441A1 COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 10
    10-48130 SCREW, (.375-16 x 4.500), THERMOSTAT HOUSING
    SCREW, (.375-16 x 4.500), THERMOSTAT HOUSING
  • 11
    13-35048 LOCKWASHER, (.375), THERMOSTAT HOUSING SCREW
    LOCKWASHER, (.375), THERMOSTAT HOUSING SCREW
  • 12
    22-98477A2 VALVE ASSEMBLY
    VALVE ASSEMBLY
  • 13
    32-8M0062614 HOSE, (48.00 Inches Bulk), TEE TO EXHAUST ELBOWS (17")
    HOSE, (48.00 Inches Bulk), TEE TO EXHAUST ELBOWS (17")
  • 14
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 15
    32-160211 HOSE, THERMOSTAT COVER TO EXH. MANIFOLD (PORT)
    HOSE, THERMOSTAT COVER TO EXH. MANIFOLD (PORT)
  • 16
    32-41940 HOSE, THERMOSTAT COVER TO EXH. MANIFOLD (STARBOARD)
    HOSE, THERMOSTAT COVER TO EXH. MANIFOLD (STARBOARD)
  • 17
    54-47715 CLIP, HOSE ATTACHING
    CLIP, HOSE ATTACHING
  • 18
    32-88794 HOSE, THERMOSTAT HOUSING TO FLUID COOLER
    HOSE, THERMOSTAT HOUSING TO FLUID COOLER
  • 19
    32-41642A3 HOSE, FLUID COOLER (3/4" I.D.)
    HOSE, FLUID COOLER (3/4" I.D.)
  • 20
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 21
    99356A2 COOLER ASSEMBLY, POWER STEERING FLUID
    COOLER ASSEMBLY, POWER STEERING FLUID
  • 23
    56328A1 BRACKET, FLUID COOLER (SHORT)
    2 PIECE BRACKET
    BRACKET, FLUID COOLER (SHORT)
    2 PIECE BRACKET
  • 24
    63820F3 BRACKET, FLUID COOLER (LONG)
    2 PIECE BRACKET
    BRACKET, FLUID COOLER (LONG)
    2 PIECE BRACKET
  • 25
    10-60300 SCREW, (.250-28 x .750), FLUID COOLER BRACKET
    2 PIECE BRACKET
    SCREW, (.250-28 x .750), FLUID COOLER BRACKET
    2 PIECE BRACKET
  • 26
    11-30506 NUT, (.250-28)
    2 PIECE BRACKET
    NUT, (.250-28)
    2 PIECE BRACKET
  • 27
    65970T1 BRACKET, FLUID COOLER
    1 PIECE BRACKET
    BRACKET, FLUID COOLER
    1 PIECE BRACKET
  • 28
    10-41408 SCREW, (#10-32 x 1.50), CLAMPING
    1 PIECE BRACKET
    SCREW, (#10-32 x 1.50), CLAMPING
    1 PIECE BRACKET
  • 29
    32-861590A05 HOSE, Molded, THERMOSTAT HOUSING TO WATER PUMP
    HOSE, Molded, THERMOSTAT HOUSING TO WATER PUMP
  • 30
    54-815504232 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 31
    12552 LIFTING EYE
    LIFTING EYE
  • -
    27-11977A92 GASKET SET
    GASKET SET
