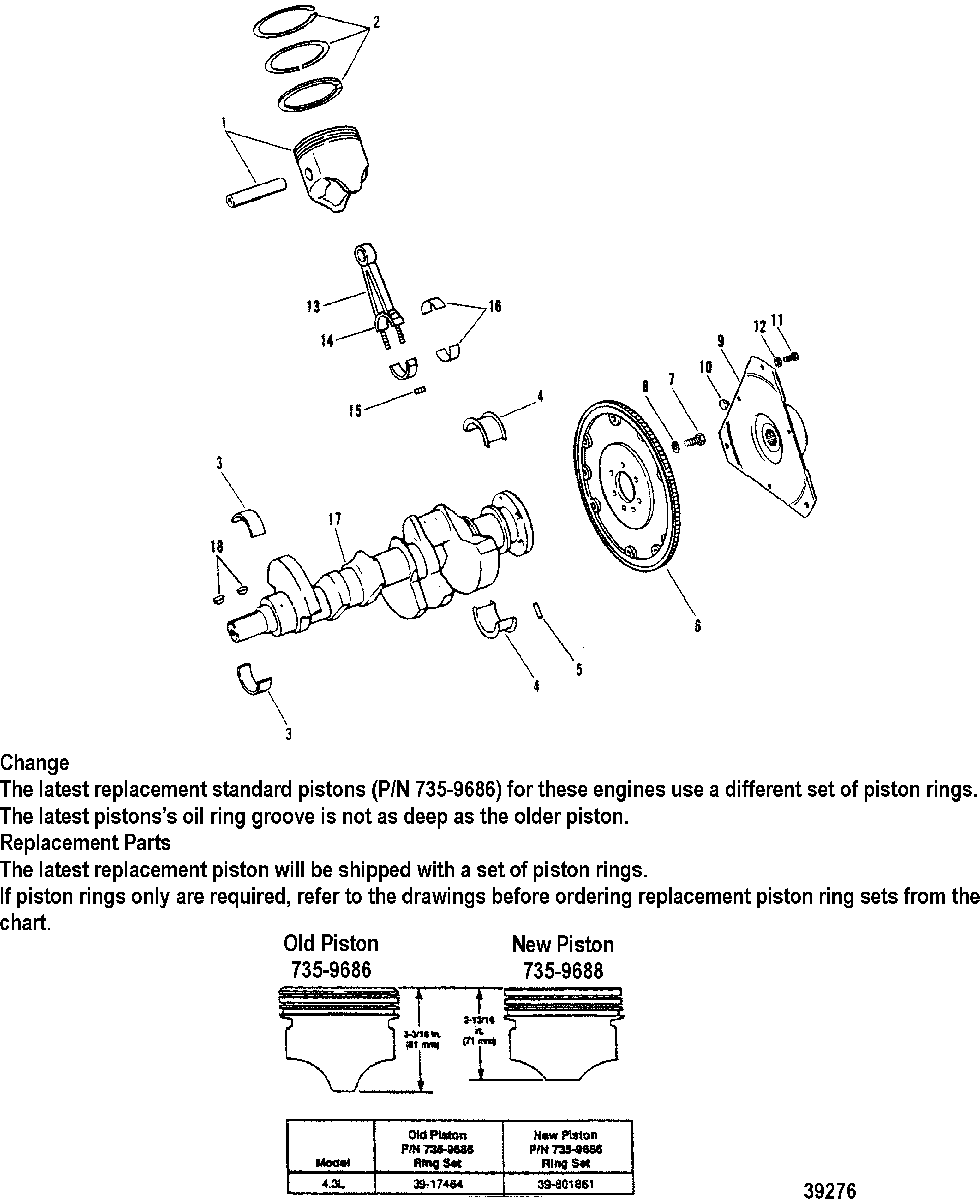

CRANKSHAFT AND PISTONS для Mercruiser - 4.3L (2 BBL.) GM 262 V-6 1988-1992 0B773243 THRU 0D714106

  • №
    Артикул
    Название
  • 1
    735-850097 PISTON ASSEMBLY
    (STANDARD)
    PISTON ASSEMBLY
    (STANDARD)
  • 1
    735-850098 PISTON ASSEMBLY
    (.030 O.S.)
    PISTON ASSEMBLY
    (.030 O.S.)
  • 2
    39-17464 RING SET, Piston (Standard)
    RING SET, Piston (Standard)
  • 2
    39-17465 RING, Piston
    (.030 O.S.)
    RING, Piston
    (.030 O.S.)
  • 3/4
    23-818465 BEARING SET, 5 Pair
    (STANDARD)
    BEARING SET, 5 Pair
    (STANDARD)
  • 3/4
    23-818466 BEARING SET, 5 Pair
    (.001 USA)
    BEARING SET, 5 Pair
    (.001 USA)
  • 3/4
    23-818467 BEARING SET, 5 Pair
    (.010 USA)
    BEARING SET, 5 Pair
    (.010 USA)
  • 3/4
    23-818468 BEARING SET, 5 Pair
    (.020 USA)
    BEARING SET, 5 Pair
    (.020 USA)
  • 5
    17-843378 PIN, Dowel (1/4 In. Diameter)
    PIN, Dowel (1/4 In. Diameter)
  • 6
    222-9518 FLYWHEEL
    FLYWHEEL
  • 7
    10-845757 SCREW, (.437-20 x 1.00)
    SCREW, (.437-20 x 1.00)
  • 8
    13-39131 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 9
    18643A7 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 10
    269011 BUMPER
    BUMPER
  • 10
    18644 BUMPER, Rubber
    (USE W/FLUID MOUNTS)
    BUMPER, Rubber
    (USE W/FLUID MOUNTS)
  • 11
    10-14883 SCREW, (.375-16 x 1.12)
    SCREW, (.375-16 x 1.12)
  • 12
    12-13510 WASHER
    WASHER
  • 13
    614-811839T02 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 14
    10-11969 BOLT
    BOLT
  • 15
    11-37493 NUT, (.375-24)
    NUT, (.375-24)
  • 16
    23-11992001 BEARING
    (STANDARD - PAIR)
    BEARING
    (STANDARD - PAIR)
  • 16
    23-11993 BEARING
    (.001 USA - PAIR)
    BEARING
    (.001 USA - PAIR)
  • 16
    23-811858001 BEARING
    (.010 USA - PAIR)
    BEARING
    (.010 USA - PAIR)
  • 16
    23-811859 BEARING
    (.020 USA - PAIR)
    BEARING
    (.020 USA - PAIR)
  • 17
    429-9517A1 CRANKSHAFT
    CRANKSHAFT
  • 18
    28-34466 KEY
    (OLD DESIGN)
    KEY
    (OLD DESIGN)
  • 18
    28-818485 KEY
    (NEW DESIGN)
    KEY
    (NEW DESIGN)
