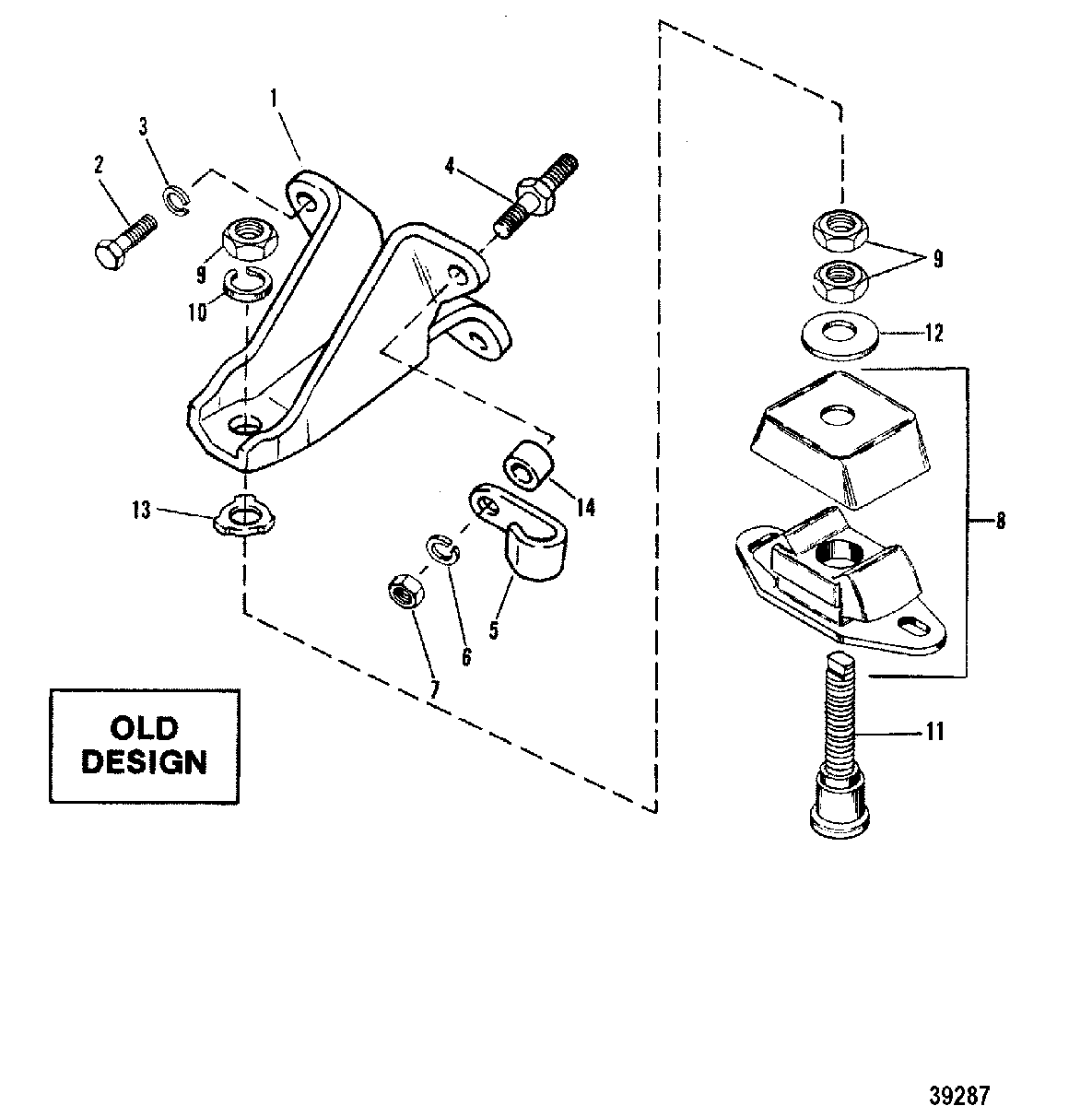

ENGINE MOUNTING, OLD DESIGN для Mercruiser - 4.3L (2 BBL.) GM 262 V-6 1988-1992 0B773243 THRU 0D714106

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET ASSEMBLY, MOUNTING - ENGINE (FRONT)
    BRACKET ASSEMBLY, MOUNTING - ENGINE (FRONT)
  • 2
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 3
    13-35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREW
    LOCKWASHER, (.375), MOUNTING BRACKET SCREW
  • 3
    12-46132 WASHER, MOUNTING BRACKET SCREW
    WASHER, MOUNTING BRACKET SCREW
  • 4
    16-861316 STUD, (.375-16 x 2.750) Special, MOUNTING BRACKET TO ENGINE
    STARBOARD
    STUD, (.375-16 x 2.750) Special, MOUNTING BRACKET TO ENGINE
    STARBOARD
  • 5
    54-92850 CLAMP, WIRING HARNESS
    STARBOARD
    CLAMP, WIRING HARNESS
    STARBOARD
  • 6
    13-35048 LOCKWASHER, (.375), MOUNTING BRACKET STUD
    STARBOARD
    LOCKWASHER, (.375), MOUNTING BRACKET STUD
    STARBOARD
  • 7
    11-32219 NUT, (.375-16), MOUNTING BRACKET STUD
    STARBOARD
    NUT, (.375-16), MOUNTING BRACKET STUD
    STARBOARD
  • 8
    98323A6 BASE ASSEMBLY, ENGINE MOUNT
    BASE ASSEMBLY, ENGINE MOUNT
  • 9
    11-20739 NUT, (.750-16), JAM - ENGINE MOUNT BASE
    NUT, (.750-16), JAM - ENGINE MOUNT BASE
  • 10
    13-68102 LOCKWASHER, (.750), MOUNTING BRACKET
    LOCKWASHER, (.750), MOUNTING BRACKET
  • 11
    16-41012 STUD, ENGINE MOUNTING
    STUD, ENGINE MOUNTING
  • 12
    12-41150 WASHER, SUPPORT
    WASHER, SUPPORT
  • 13
    14-12657 TAB WASHER
    TAB WASHER
  • 14
    23-57369 SPACER, MOUNTING STUD
    SPACER, MOUNTING STUD
