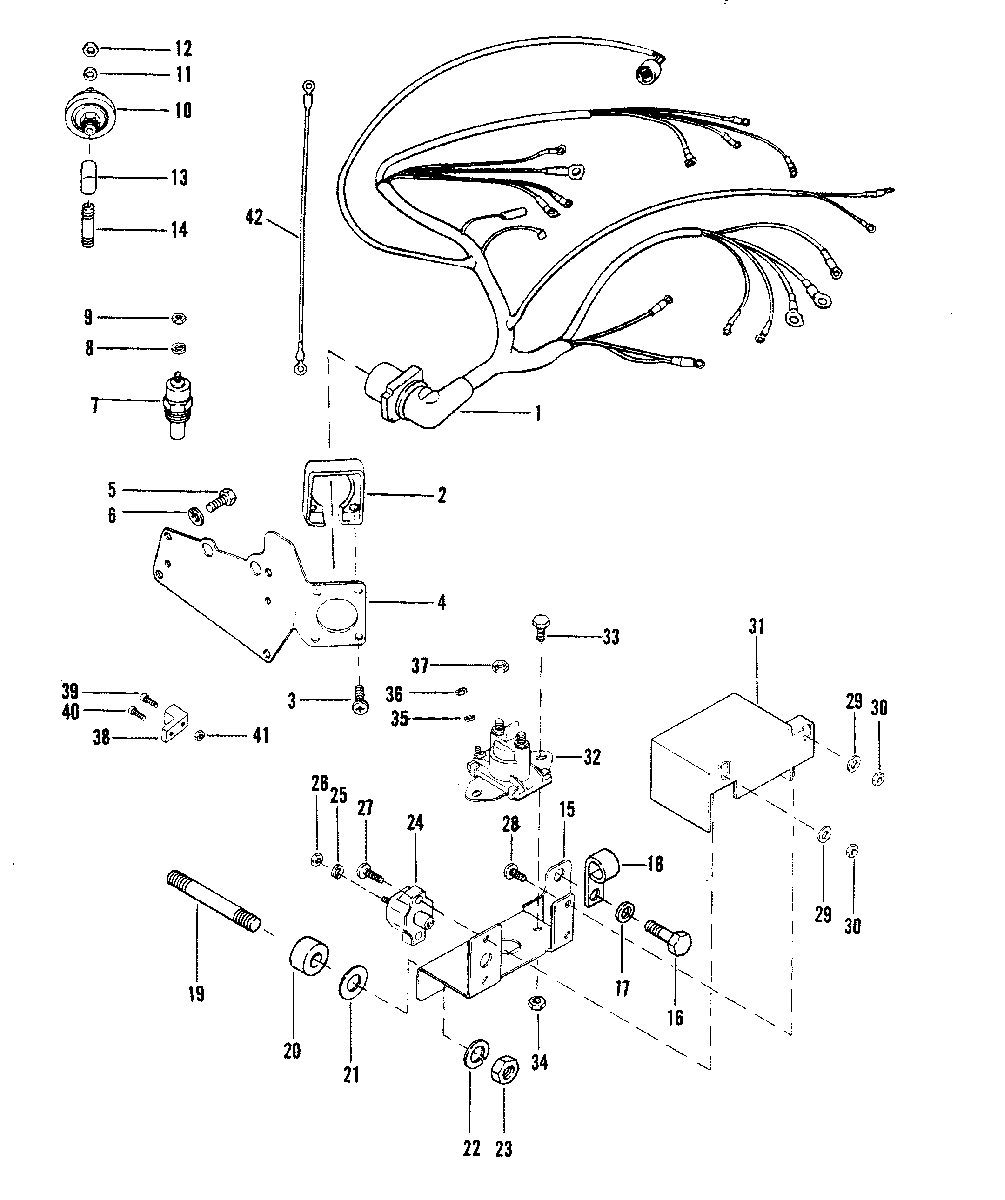

WIRING HARNESS AND ELECTRICAL COMPONENTS для Mercruiser - 185 (4 BBL.) GM 229 V-6 1983-1984 6330183 THRU 6919655

  • №
    Артикул
    Название
  • 1
    84-99510A2 WIRING HARNESS
    WIRING HARNESS
  • 2
    26079A2 PLATE, WIRING HARNESS TO MOUNTING BRACKET
    PLATE, WIRING HARNESS TO MOUNTING BRACKET
  • 3
    10-34696 SCREW, WIRING HARNESS PLATE (3/4")
    SCREW, WIRING HARNESS PLATE (3/4")
  • 4
    98493A2 BRACKET, MONTING
    BRACKET, MONTING
  • 5
    10-49668 SCREW, MOUNTING BRACKET
    SCREW, MOUNTING BRACKET
  • 6
    13-26992 LOCKWASHER, MOUNTING BRACKET
    LOCKWASHER, MOUNTING BRACKET
  • 7
    97258A1 WATER TEMPERATURE SENDER ASSEMBLY
    WATER TEMPERATURE SENDER ASSEMBLY
  • 7
    49734 WATER TEMPERATURE SENDER ASSEMBLY (DUAL)
    WATER TEMPERATURE SENDER ASSEMBLY (DUAL)
  • 8
    13-26996 LOCKWASHER, WATER TMEPERATURE SENDER TERMINAL (#10)
    LOCKWASHER, WATER TMEPERATURE SENDER TERMINAL (#10)
  • 9
    11-68219 NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
    NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
  • 10
    8M0068784 OIL PRESSURE SENDER ASSMEBLY
    OIL PRESSURE SENDER ASSMEBLY
  • 10
    37293T OIL PRESSURE SENDER ASSEMBLY (DUAL)
    OIL PRESSURE SENDER ASSEMBLY (DUAL)
  • 11
    13-26996 LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
    LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
  • 12
    11-68219 NUT, OIL PRESSURE SENDER TERMINAL (#10)
    NUT, OIL PRESSURE SENDER TERMINAL (#10)
  • 13
    22-46932 ELBOW, OIL PRESSURE SENDER
    ELBOW, OIL PRESSURE SENDER
  • 14
    22-885153 NIPPLE, OILPRESSURE SENDER
    NIPPLE, OILPRESSURE SENDER
  • 15
    41170T BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 16
    10-98260 SCREW, MOUNTIG BRACKET (5/8")
    SCREW, MOUNTIG BRACKET (5/8")
  • 17
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 18
    54-78945 CLAMP, BRACKET SCREW
    CLAMP, BRACKET SCREW
  • 19
    16-56826 STUD, MOUNTING BRACKET
    STUD, MOUNTING BRACKET
  • 20
    23-57369 SPACER, MOUNTING BRACKET STUD
    SPACER, MOUNTING BRACKET STUD
  • 21
    12-20572 WASHER, MOUNTING BRACKET STUD
    WASHER, MOUNTING BRACKET STUD
  • 22
    13-35048 LOCKWASHER, MOUNTING BRACKET STUD
    LOCKWASHER, MOUNTING BRACKET STUD
  • 23
    11-46335 NUT, MOUNTING BRACKET STUD
    NUT, MOUNTING BRACKET STUD
  • 24
    88-93582 CIRCUIT BREAKER (60 AMP)
    CIRCUIT BREAKER (60 AMP)
  • 24
    88-11178A01 CIRCUIT BREAKER (50 AMP)
    CIRCUIT BREAKER (50 AMP)
  • 25
    13-26996 LOCKWASHER, CIRCUIT BREAKER TERMINAL
    LOCKWASHER, CIRCUIT BREAKER TERMINAL
  • 26
    11-68219 NUT, CIRCUIT BREAKER TERMINAL
    NUT, CIRCUIT BREAKER TERMINAL
  • 27
    10-45862 SCREW, CIRCUIT BREAKER (7/8")
    SCREW, CIRCUIT BREAKER (7/8")
  • 28
    10-45218 SCREW, INSULTOR (3/8")
    SCREW, INSULTOR (3/8")
  • 29
    12-56681 WASHERM CICUIT BREAKER SCREW
    WASHERM CICUIT BREAKER SCREW
  • 30
    11-46438 NUT, INSULATOR SCREW
    NUT, INSULATOR SCREW
  • 31
    85-96819T INSULATOR, CIRCUIT BREAKER
    INSULATOR, CIRCUIT BREAKER
  • 32
    89-96054T STARTER SOLENOID
    STARTER SOLENOID
  • 33
    10-96138 SCREW, STARTER SOLENOID (5/8")
    SCREW, STARTER SOLENOID (5/8")
  • 34
    11-20088 NUT, STARTER SOLENOID SCREW
    NUT, STARTER SOLENOID SCREW
  • 35
    13-26992 LOCKWASHER, STARTER SOLENOID TERMINAL
    LOCKWASHER, STARTER SOLENOID TERMINAL
  • 36
    11-26419 NUT, STARTER SOLENOID TERMINAL (10-32)
    NUT, STARTER SOLENOID TERMINAL (10-32)
  • 37
    11-94330 NUT, STARTER SOLENOID TERMINAL (1/4-20)
    NUT, STARTER SOLENOID TERMINAL (1/4-20)
  • 38
    86-45915 TERMINAL BLOCK
    TERMINAL BLOCK
  • 39
    10-62568 SCREW, TERMINAL BLOCK LEADS
    SCREW, TERMINAL BLOCK LEADS
  • 40
    10-22028 SCREW, TERMINAL BLOCK
    SCREW, TERMINAL BLOCK
  • 41
    11-46438 NUT, TERMINAL BLOCK SCREW
    NUT, TERMINAL BLOCK SCREW
  • 42
    84-94227A2 RESISTANCE WIRE KIT (TO REPLACE RESISTOR WIRE)
    RESISTANCE WIRE KIT (TO REPLACE RESISTOR WIRE)
