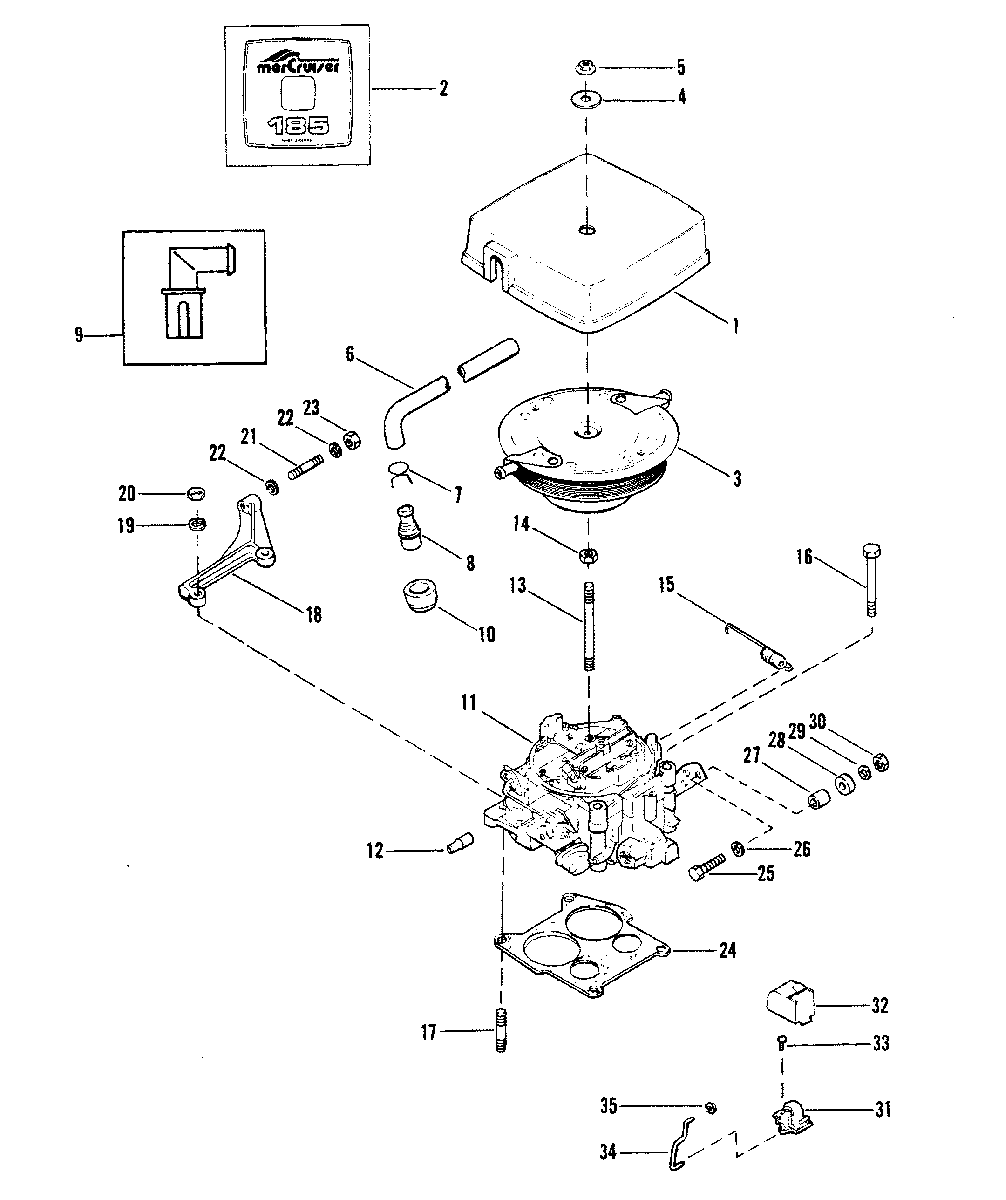

CARBURETOR AND THROTTLE LINKAGE для Mercruiser - 185 (4 BBL.) GM 229 V-6 1983-1984 6330183 THRU 6919655

  • №
    Артикул
    Название
  • 1
    15414A7 COVER, CARBURETOR (TOP)
    COVER, CARBURETOR (TOP)
  • 2
    37-137237 DECAL, CARBURETOR COVER (185)
    DECAL, CARBURETOR COVER (185)
  • 3
    805298A1 FLAME ARRESTOR, CARBURETOR
    FLAME ARRESTOR, CARBURETOR
  • 4
    12-86400 WASHER, SEALING
    WASHER, SEALING
  • 5
    11-826709109 NUT, SILENCER ADAPTER
    NUT, SILENCER ADAPTER
  • 6
    32-8M0062669 HOSE, VENT-CARBURETOR (11-1/4")
    HOSE, VENT-CARBURETOR (11-1/4")
  • 7
    54-53101 CLAMP, VENT HOSE
    CLAMP, VENT HOSE
  • 8
    47957 CONNECTOR, VENT HOSE TO ROCKER COVER (PORT)
    CONNECTOR, VENT HOSE TO ROCKER COVER (PORT)
  • 9
    97850T ELBOW, VENT HOSE TO ROCKER COVER (STARBOARD)
    ELBOW, VENT HOSE TO ROCKER COVER (STARBOARD)
  • 10
    23-8M0071559 GROMMET, ROCKER COVER
    GROMMET, ROCKER COVER
  • 11
    3300-8886A2 CARBURETOR ASSEMBLY
    CARBURETOR ASSEMBLY
  • 12
    22-97282 CONNECTOR, CARBURETOR
    CONNECTOR, CARBURETOR
  • 13
    16-91842 STUD, FLAME ARRESTOR
    STUD, FLAME ARRESTOR
  • 14
    11-8267139 NUT, JAM-FLAME ARRESTOR
    NUT, JAM-FLAME ARRESTOR
  • 15
    24-897454 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 16
    10-74822 SCREW, CARBURETOR
    SCREW, CARBURETOR
  • 17
    16-46857 STUD, CARBURETOR
    STUD, CARBURETOR
  • 18
    805359A02 BRACKET, THROTTLE CABLE
    BRACKET, THROTTLE CABLE
  • 19
    12-20084 WASHER, CARBURETOR STUD
    WASHER, CARBURETOR STUD
  • 20
    11-29250 NUT, CARBURETOR STUD
    NUT, CARBURETOR STUD
  • 21
    16-38525 STUD, THROTTLE CABLE
    STUD, THROTTLE CABLE
  • 22
    12-24664 WASHER, THROTTLE CABLE STUD
    WASHER, THROTTLE CABLE STUD
  • 23
    11-826709109 NUT, THROTTLE CABLE STUD
    NUT, THROTTLE CABLE STUD
  • 24
    27-524572 GASKET, CARBURETOR TO INTAKE MANIFOLD
    GASKET, CARBURETOR TO INTAKE MANIFOLD
  • 25
    10-98509 SCREW, THROTTLE CABLE (1-1/8")
    SCREW, THROTTLE CABLE (1-1/8")
  • 26
    12-847883 WASHER, THROTTLE CABLE SCREW
    WASHER, THROTTLE CABLE SCREW
  • 27
    23-57938 BUSHING, THROTTLE CABLE SCREW
    BUSHING, THROTTLE CABLE SCREW
  • 28
    23-34948 BUSHING, THROTTLE CABLE SCREW
    BUSHING, THROTTLE CABLE SCREW
  • 29
    12-56681 WASHER, THROTTLE CABLE SCREW
    WASHER, THROTTLE CABLE SCREW
  • 30
    11-8267086 NUT, THROTTLE CABLE SCREW
    NUT, THROTTLE CABLE SCREW
  • 31
    71464A01 CHOKE, AUTOMATIC-CARBURETOR
    CHOKE, AUTOMATIC-CARBURETOR
  • 32
    63922 COVER, AUTOMATIC CHOKE
    COVER, AUTOMATIC CHOKE
  • 33
    10-69235 SCREW, AUTOMATIC CHOKE THERMOSTAT
    SCREW, AUTOMATIC CHOKE THERMOSTAT
  • 34
    61112 LEVER, CHOKE
    LEVER, CHOKE
  • 35
    54-59989 CLIP, AUTOMATIC CHOKE ROD
    CLIP, AUTOMATIC CHOKE ROD
