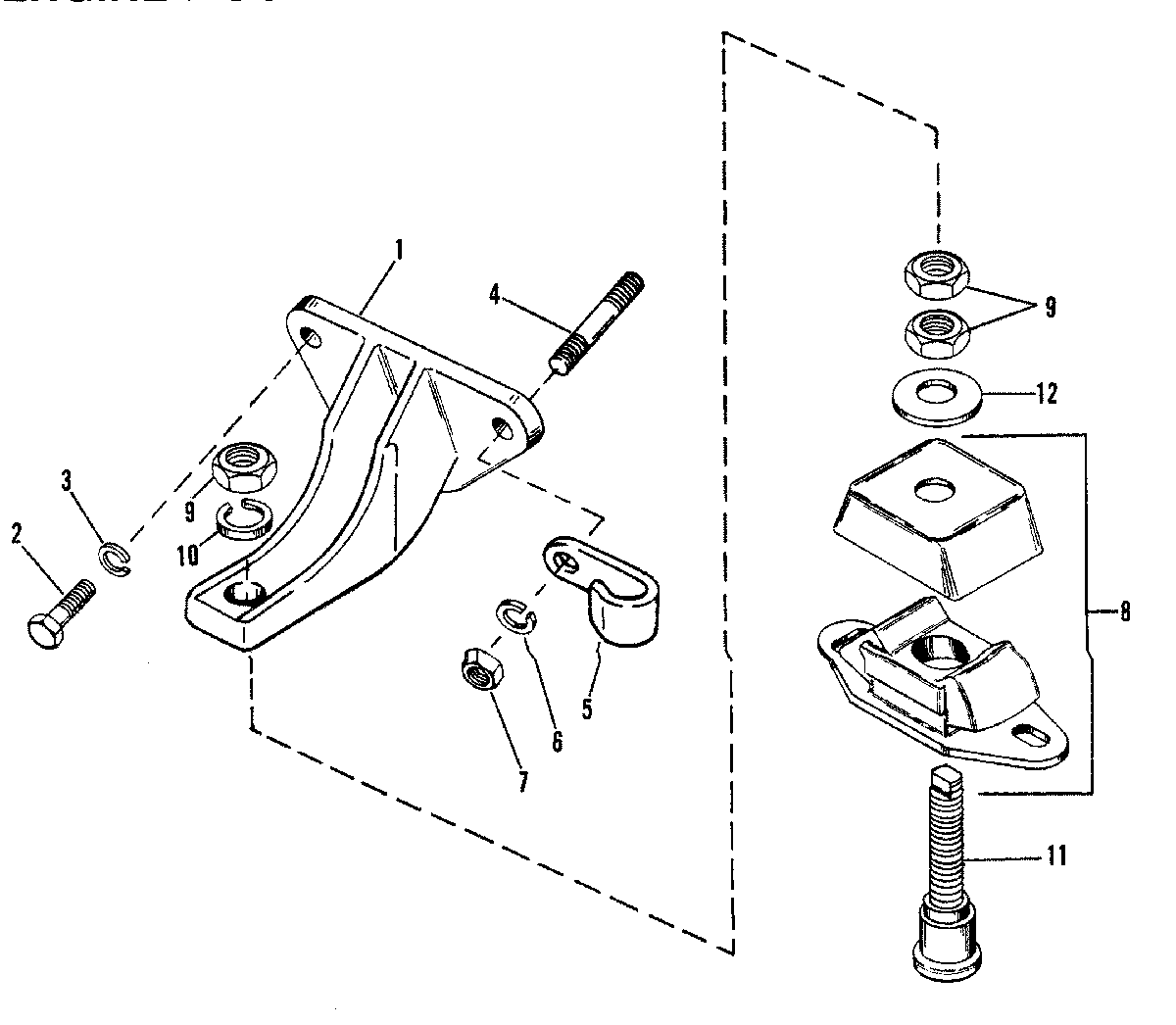

ENGINE MOUNTING для Mercruiser - 185 (4 BBL.) GM 229 V-6 1983-1984 6330183 THRU 6919655

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET, MOUNTING - ENGINE (FRONT)
    BRACKET, MOUNTING - ENGINE (FRONT)
  • 2
    10-37612 SCREW, MOUNTING BRACKET TO ENGINE (1-1/4") PORT
    SCREW, MOUNTING BRACKET TO ENGINE (1-1/4") PORT
  • 3
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW PORT
    LOCKWASHER, MOUNTING BRACKET SCREW PORT
  • 2
    10-68101 SCREW, MOUNTING BRACKET TO ENGINE (1-3/8") PORT
    SCREW, MOUNTING BRACKET TO ENGINE (1-3/8") PORT
  • 3
    12-46132 WASHER, MOUNTING BRACKET SCREW PORT
    WASHER, MOUNTING BRACKET SCREW PORT
  • 2
    10-37612 SCREW, MOUNTING BRACKET TO ENGINE (1-1/4") STARBOARD
    SCREW, MOUNTING BRACKET TO ENGINE (1-1/4") STARBOARD
  • 3
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW STARBOARD
    LOCKWASHER, MOUNTING BRACKET SCREW STARBOARD
  • 4
    16-861316 STUD, MOUNTING BRACKET TO ENGINE STARBOARD
    STUD, MOUNTING BRACKET TO ENGINE STARBOARD
  • 5
    54-92850 CLIP, WIRING HARNESS STARBOARD
    CLIP, WIRING HARNESS STARBOARD
  • 6
    13-35048 LOCKWASHER, MOUNTING BRACKET STUD STARBOARD
    LOCKWASHER, MOUNTING BRACKET STUD STARBOARD
  • 7
    11-32219 NUT, MOUNTING BRACKET STUD STARBOARD
    NUT, MOUNTING BRACKET STUD STARBOARD
  • 8
    98323A6 BASE, ENGINE MOUNT
    BASE, ENGINE MOUNT
  • 9
    11-20739 NUT, JAM - ENGINE MOUNT BASE
    NUT, JAM - ENGINE MOUNT BASE
  • 10
    13-68102 LOCKWASHER, MOUNTING BRACKET
    LOCKWASHER, MOUNTING BRACKET
  • 11
    16-41012 STUD, ENGINE MOUNTING
    STUD, ENGINE MOUNTING
  • 12
    12-41150 WASHER, SUPPORT
    WASHER, SUPPORT
