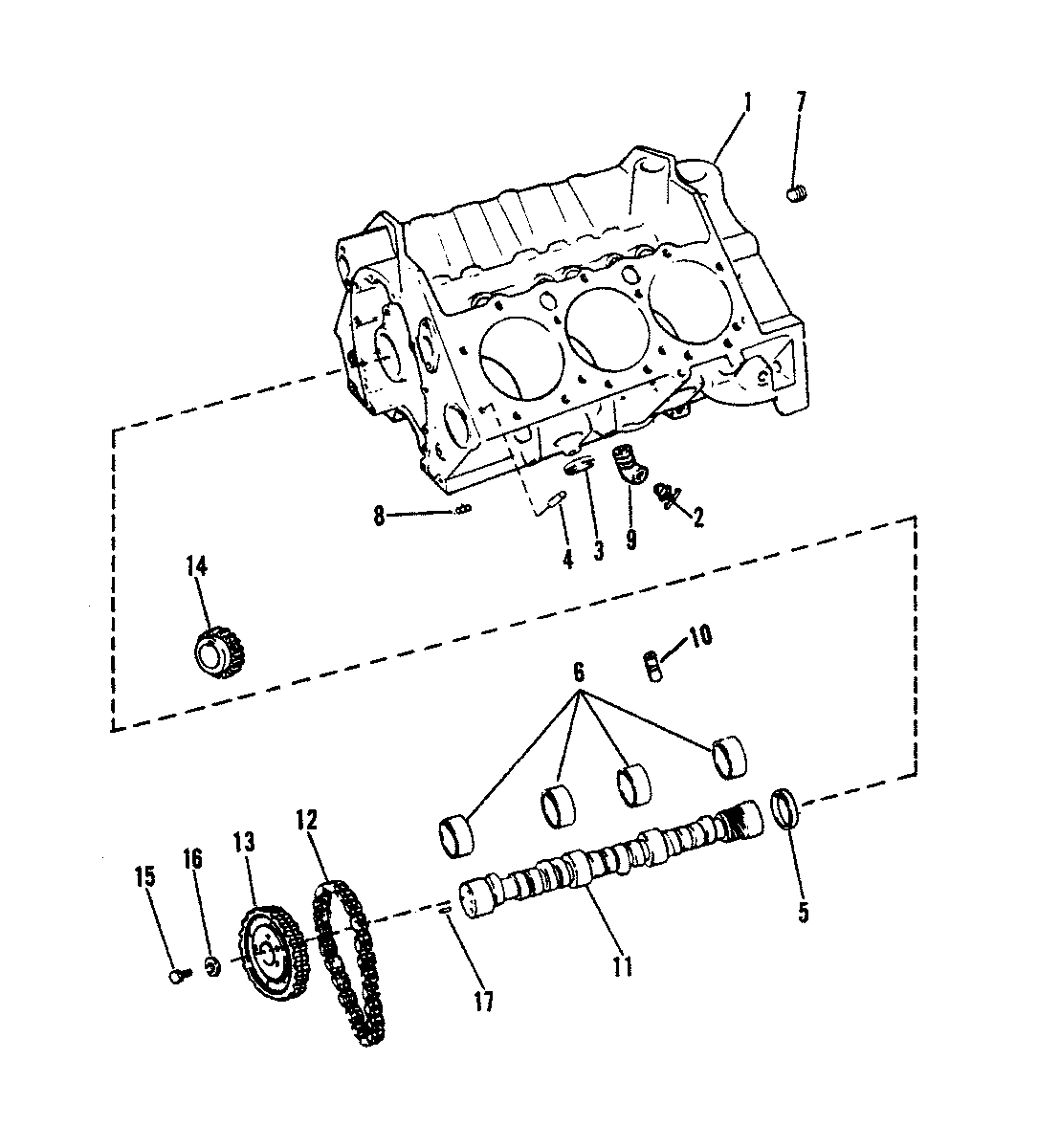

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 185 (4 BBL.) GM 229 V-6 1983-1984 6330183 THRU 6919655

  • №
    Артикул
    Название
  • 1
    841-9848 CYLINDER BLOCK ASSEMBY
    CYLINDER BLOCK ASSEMBY
  • 2
    22-16951Q1 DRAIN COCK, CYLINDER BLOCK
    DRAIN COCK, CYLINDER BLOCK
  • 3
    19-34270 PLUG, EXPANSION - CYLINDER BLOCK (1-5/8" DIAMETER)
    PLUG, EXPANSION - CYLINDER BLOCK (1-5/8" DIAMETER)
  • 4
    17-35465 PIN, DOWEL - BLOCK TO HEAD (5/16" DIAMETER)
    PIN, DOWEL - BLOCK TO HEAD (5/16" DIAMETER)
  • 5
    22-72640 PLUG, EXPANSION - CAMSHAFT BEARING HOLE
    PLUG, EXPANSION - CAMSHAFT BEARING HOLE
  • 6
    23-85674 BEARING UNIT, CAMSHAFT (SET)
    BEARING UNIT, CAMSHAFT (SET)
  • 7
    22-32561 /PLUG, OIL GALLERY (7/16" SQUARE)
    /PLUG, OIL GALLERY (7/16" SQUARE)
  • 8
    22-42796 BY-PASS VALVE, OIL FILTER
    BY-PASS VALVE, OIL FILTER
  • 9
    22-37682 ELBOW, DRAIN COCK (45`)
    ELBOW, DRAIN COCK (45`)
  • 10
    72638 LIFTER, HYDRAULIC VALVE
    LIFTER, HYDRAULIC VALVE
  • 11
    431-8968 CAMSHAFT
    CAMSHAFT
  • 12
    11985 CHAIN, CAMSHAFT TIMING
    CHAIN, CAMSHAFT TIMING
  • 13
    43-42754 SPROCKET, CAMSHAFT TIMING
    SPROCKET, CAMSHAFT TIMING
  • 14
    43-42755T SPROCKET, CRANKSHAFT TIMING
    SPROCKET, CRANKSHAFT TIMING
  • 15
    10-34505 BOLT, CAMSHAFT TIMING SPROCKETS (3/4")
    BOLT, CAMSHAFT TIMING SPROCKETS (3/4")
  • 16
    12-848136 WASHER, CAMSHAFT TIMING SPROCKET BOLT
    WASHER, CAMSHAFT TIMING SPROCKET BOLT
  • 17
    17-843378 PIN, DOWEL - CAMSHAFT SPROCKET (1/4" DIAMETER)
    PIN, DOWEL - CAMSHAFT SPROCKET (1/4" DIAMETER)
