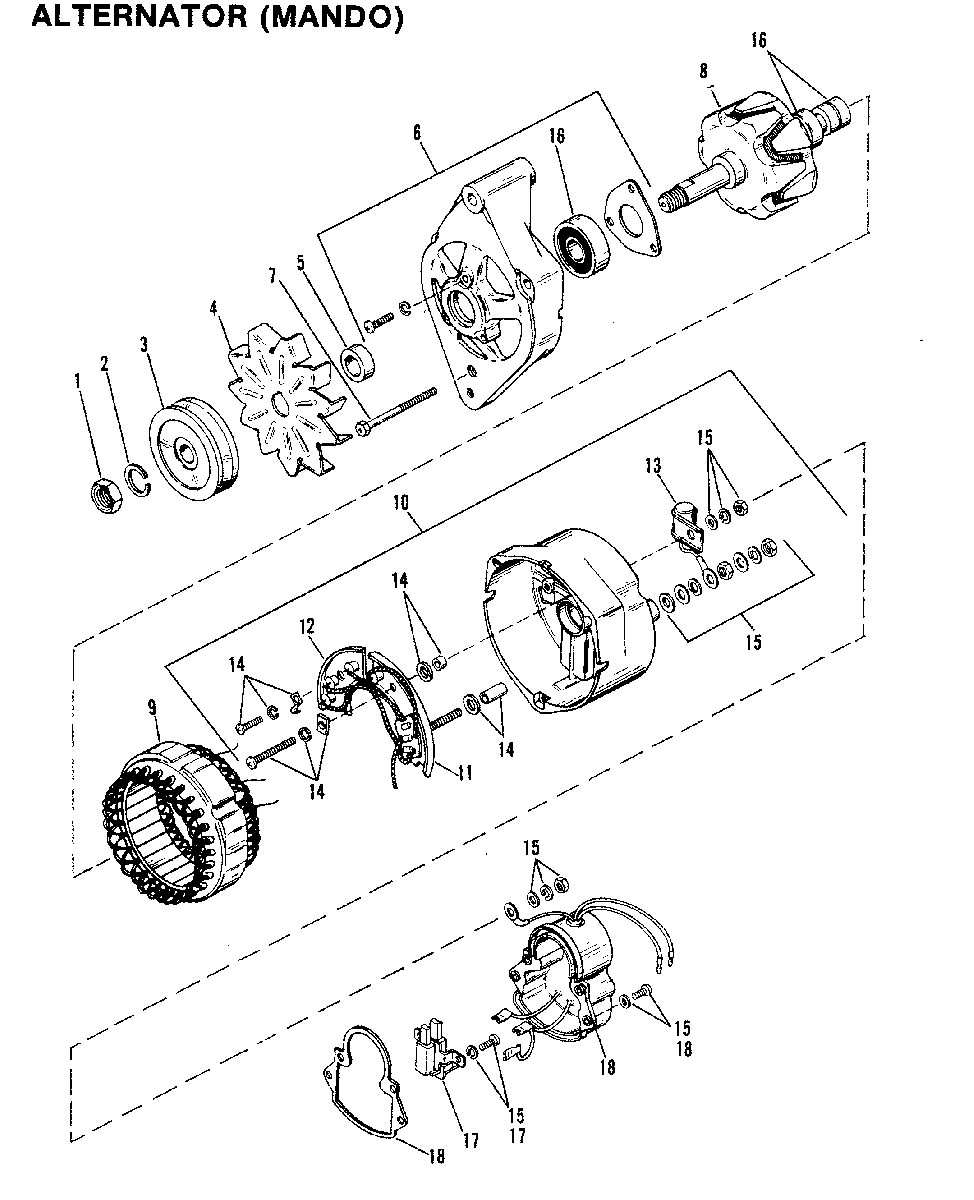

ALTERNATOR (MANDO) для Mercruiser - 185 (4 BBL.) GM 229 V-6 1983-1984 6330183 THRU 6919655

  • №
    Артикул
    Название
  • 1
    11-809136 NUT
    NUT
  • 2
    13-42769 LOCKWASHER
    LOCKWASHER
  • 3
    809134 PULLEY
    PULLEY
  • 4
    42771 FAN
    FAN
  • 5
    23-42772 SPACER
    SPACER
  • 6
    42774 BRACKET ASSEMBLY, FRONT
    BRACKET ASSEMBLY, FRONT
  • 7
    10-42773 BOLT
    BOLT
  • 8
    42775 ROTOR (INCLUDES BEARINGS)
    ROTOR (INCLUDES BEARINGS)
  • 9
    42776 STATOR
    STATOR
  • 10
    42777 BRACKET ASSMEBLY, REAR
    BRACKET ASSMEBLY, REAR
  • 11
    42778 HEAT SINK(POSTIVE)
    HEAT SINK(POSTIVE)
  • 12
    42779 HEAT SINK (NEGATIVE)
    HEAT SINK (NEGATIVE)
  • 13
    42780 CONDENSER ASSEMBLY
    CONDENSER ASSEMBLY
  • 14
    42783 HARDWARE KIT, INTERNAL
    HARDWARE KIT, INTERNAL
  • 15
    42782 HARDWARE KIT, EXERNAL
    HARDWARE KIT, EXERNAL
  • 16
    42781 BEARING KIT
    BEARING KIT
  • 17
    42784 BUSH HOLDER KIT (INCLUDES SPRINGS AND BRUSHES)
    BUSH HOLDER KIT (INCLUDES SPRINGS AND BRUSHES)
  • 18
    42785 REGULATOR KIT
    REGULATOR KIT
