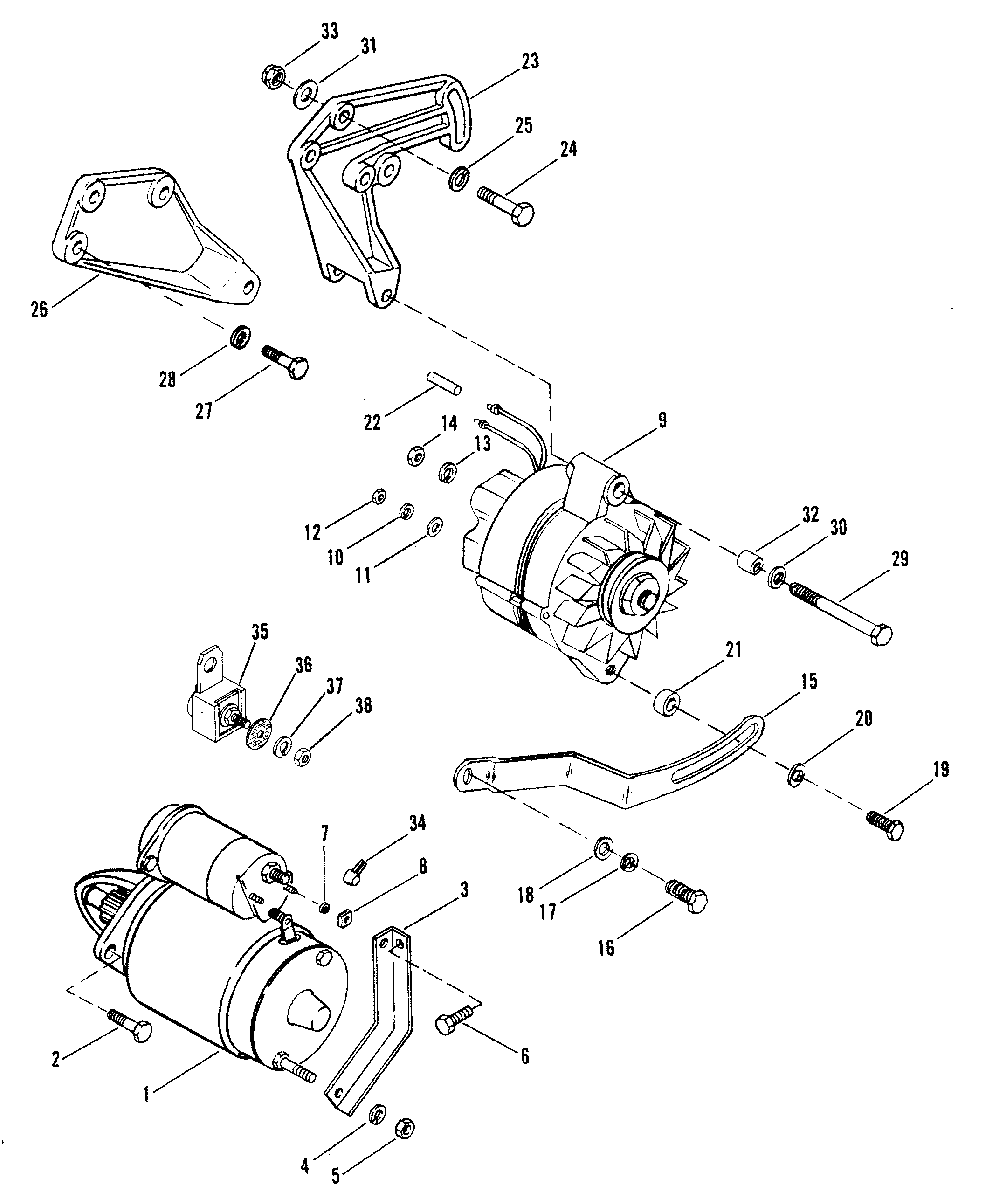

STARTER MOTOR AND ALTERNATOR для Mercruiser - 185 (4 BBL.) GM 229 V-6 1983-1984 6330183 THRU 6919655

  • №
    Артикул
    Название
  • 1
    50-8M0090697 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 2
    10-94435001 SCREW, STARTER MOTOR TO CYLINDER BLOCK (4-21/32")
    SCREW, STARTER MOTOR TO CYLINDER BLOCK (4-21/32")
  • 2
    10-8053433 SCREW, STARTER MOTOR TO CYLNDER BLOCK (1-15/16")
    SCREW, STARTER MOTOR TO CYLNDER BLOCK (1-15/16")
  • 3
    35363 BRACE, STARTER MOTOR
    BRACE, STARTER MOTOR
  • 4
    12-29245 WASHER, STARTER MOTOR STUD
    WASHER, STARTER MOTOR STUD
  • 5
    11-8267088 NUT, STARTER MOTOR STUD
    NUT, STARTER MOTOR STUD
  • 6
    10-35765A1 SCREW, BRACE TO ENGINE (5/8")
    SCREW, BRACE TO ENGINE (5/8")
  • 7
    13-26995 LOCKWASHER, STARTER TERMINAL (#8)
    LOCKWASHER, STARTER TERMINAL (#8)
  • 8
    11-26419 NUT, STARTER TERMINAL (#8)
    NUT, STARTER TERMINAL (#8)
  • 9
    817119A4 ALTERNATOR (55 AMP)
    ALTERNATOR (55 AMP)
  • 10
    13-26996 LOCKWASHER, ALTERNATOR TERMINAL
    LOCKWASHER, ALTERNATOR TERMINAL
  • 11
    12-96457 WASHER, ALTERNATOR TERMINAL
    WASHER, ALTERNATOR TERMINAL
  • 12
    11-30968 NUT, ALTERNATOR TERMINAL(10-24)
    NUT, ALTERNATOR TERMINAL(10-24)
  • 13
    13-26992 LOCKWASHER, ALTERNATOR TERMINAL
    LOCKWASHER, ALTERNATOR TERMINAL
  • 14
    11-20890 NUT, ALTERNATOR TERMINAL (1/4-20)
    NUT, ALTERNATOR TERMINAL (1/4-20)
  • 15
    85013T BRACE, ALTERNATOR ADJUSTING
    BRACE, ALTERNATOR ADJUSTING
  • 16
    10-98261 SCREW, ALTERNATOR BRACE
    SCREW, ALTERNATOR BRACE
  • 17
    13-35048 LOCKWASHER, ALTERNATOR BRACE SCREW
    LOCKWASHER, ALTERNATOR BRACE SCREW
  • 19
    10-74824 SCREW, ALTERNATOR BRACE
    SCREW, ALTERNATOR BRACE
  • 20
    12-26168 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 21
    23-52095 SPACER, ALTERNATOR BRACE SCREW
    SPACER, ALTERNATOR BRACE SCREW
  • 22
    5790811 TUBING, ALTERNATOR LEADS
    TUBING, ALTERNATOR LEADS
  • 23
    87115A1 BRACKET, ALTERNATOR
    W/POWER STEERING
    BRACKET, ALTERNATOR
    W/POWER STEERING
  • 24
    10-37612 SCREW, ALTERNATOR BRACKET (1-1/4")
    W/POWER STEERING
    SCREW, ALTERNATOR BRACKET (1-1/4")
    W/POWER STEERING
  • 24
    10-34354 SCREW, ALTERNATOR BRACKET (1-1/2")
    W/POWER STEERING
    SCREW, ALTERNATOR BRACKET (1-1/2")
    W/POWER STEERING
  • 25
    13-35048 LOCKWASHER, ALTERNATOR BRACKET SCREW
    W/POWER STEERING
    LOCKWASHER, ALTERNATOR BRACKET SCREW
    W/POWER STEERING
  • 26
    93175T BRACKET, ALTERNATOR
    W/O POWER STEERING
    BRACKET, ALTERNATOR
    W/O POWER STEERING
  • 27
    10-37612 SCREW, ALTERNATOR BRACKET (1-1/4")
    W/O POWER STEERING
    SCREW, ALTERNATOR BRACKET (1-1/4")
    W/O POWER STEERING
  • 28
    13-35048 LOCKWASHER, ALTERNATOR BRACKET SCREW
    W/O POWER STEERING
    LOCKWASHER, ALTERNATOR BRACKET SCREW
    W/O POWER STEERING
  • 29
    10-48308 SCREW, ALTERNATOR (3-3/4")
    SCREW, ALTERNATOR (3-3/4")
  • 30
    12-20553 WASHER, ALTERNATOR BRACKET SCREW (3/4")
    WASHER, ALTERNATOR BRACKET SCREW (3/4")
  • 31
    12-34714 WASHER, ALTERNATOR BRACKET SCREW (13/16 O.D.)
    WASHER, ALTERNATOR BRACKET SCREW (13/16 O.D.)
  • 32
    23-33186 BUSHING, ALTERNATOR BRACKET SCREW
    BUSHING, ALTERNATOR BRACKET SCREW
  • 33
    11-23161 NUT, ALTERNATOR BRACKET SCREW
    NUT, ALTERNATOR BRACKET SCREW
  • 34
    85-79695T INSULATOR, BOOT-STARTER TERMINAL
    INSULATOR, BOOT-STARTER TERMINAL
  • 35
    88-79023A91 FUSE ASSEMBLY (90 AMP)
    FUSE ASSEMBLY (90 AMP)
  • 36
    12-96457 WASHER, FUSE TERMINAL
    WASHER, FUSE TERMINAL
  • 37
    13-26992 LOCKWASHER, FUSE TERMINAL
    LOCKWASHER, FUSE TERMINAL
  • 38
    11-21825 NUT, FUSE TEMINAL
    NUT, FUSE TEMINAL
