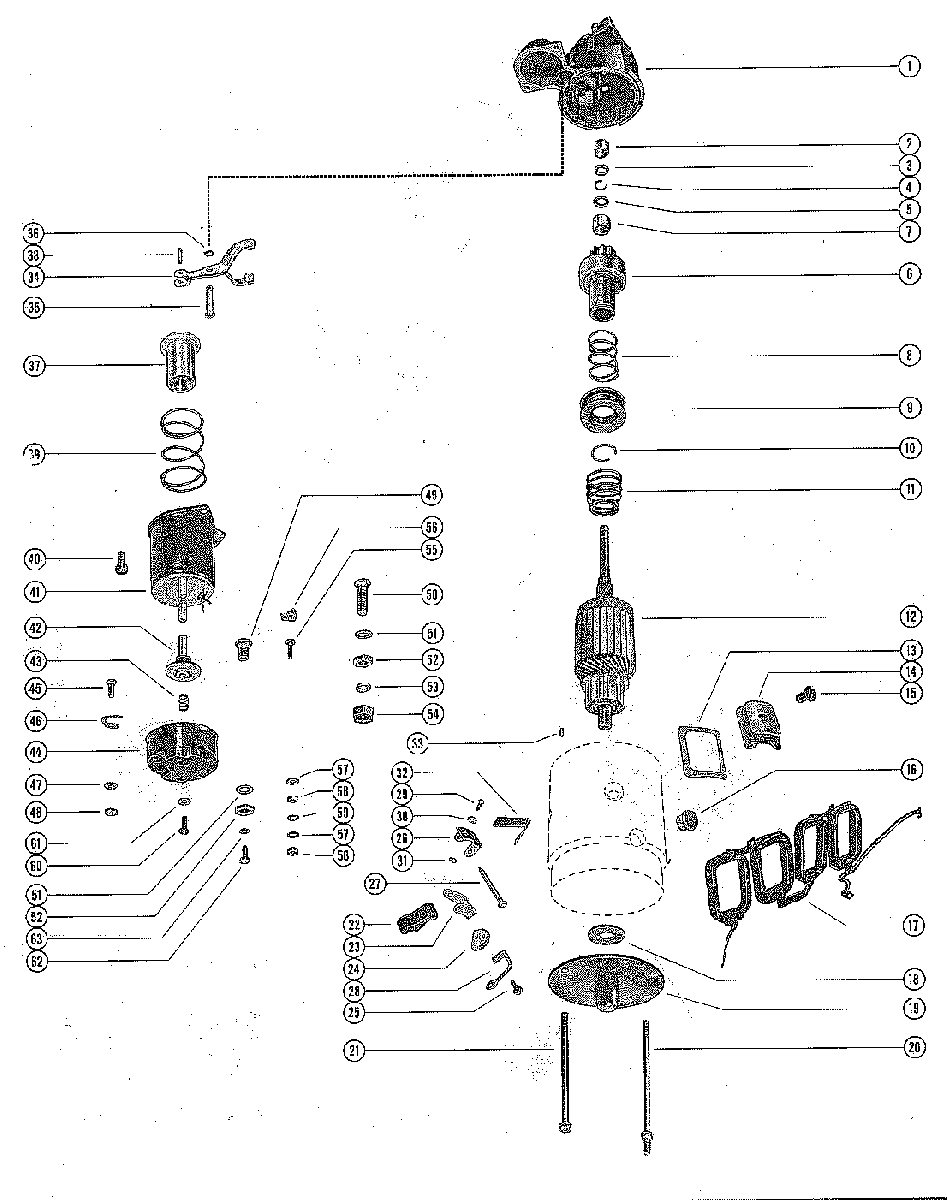

STARTER MOTOR ASSEMBLY для Mercruiser - 150 GM 230 I/L6 1964-1966 1666495 THRU 2048046
-
№АртикулНазвание
-
-50-8M0090697 STARTER MOTOR ASSEMBLY, COMPLETESTARTER MOTOR ASSEMBLY, COMPLETE
-
146890 HOUSING, DRIVE ENDHOUSING, DRIVE END
-
223-33278 BUSHING, DRIVE END HOUSINGBUSHING, DRIVE END HOUSING
-
323-809457 COLLAR, THRUST - DRIVE END HOUSINGCOLLAR, THRUST - DRIVE END HOUSING
-
453-33290 RING, RETAINING - PINION STOP COLLARRING, RETAINING - PINION STOP COLLAR
-
533291 COLLAR, PINION STOP - DRIVE END HOUSINGCOLLAR, PINION STOP - DRIVE END HOUSING
-
679205T DRIVE ASSEMBLY, CLUTCH - ARMATUREDRIVE ASSEMBLY, CLUTCH - ARMATURE
-
723-33369 BUSHING, GEAR END - CLUTCH DRIVEBUSHING, GEAR END - CLUTCH DRIVE
-
824-33368 SPRING, CLUTCH DRIVESPRING, CLUTCH DRIVE
-
933366 COLLAR, CLUTCH DRIVECOLLAR, CLUTCH DRIVE
-
1033367 LOCKWIRE, COLLAR AND SPRING RETAININGLOCKWIRE, COLLAR AND SPRING RETAINING
-
1124-33306 SPRING, SHIFT LEVER TENSION - ARMATURESPRING, SHIFT LEVER TENSION - ARMATURE
-
1233320 ARMATUREARMATURE
-
1333293 INSULATION, POLE SHOE TO FIELD COILINSULATION, POLE SHOE TO FIELD COIL
-
1433282 SHOE, POLE - FIELD COILSHOE, POLE - FIELD COIL
-
1510-60684 SCREW, POLE SHOE TO FIELD COILSCREW, POLE SHOE TO FIELD COIL
-
1625-33302 GROMMET, FIELD COIL - FIELD FRAMEGROMMET, FIELD COIL - FIELD FRAME
-
1746891 FIELD COIL ASSEMBLYFIELD COIL ASSEMBLY
-
1812-33258 WASHER, LEATHER - COMMUTATOR END FRAMEWASHER, LEATHER - COMMUTATOR END FRAME
-
1979211 FRAME, COMMUTATOR END - LOWERFRAME, COMMUTATOR END - LOWER
-
2010-33296 BOLT, THRU - COMMUTATOR END FRAME TO DRIVE END HOUSINGBOLT, THRU - COMMUTATOR END FRAME TO DRIVE END HOUSING
-
2110-33286 BOLT, THUR - COMMUTATOR END FRAME TO DRIVE END HOUSINGBOLT, THUR - COMMUTATOR END FRAME TO DRIVE END HOUSING
-
2233284 HOLDER, INSULATED - FIELD FRAME BRUSHHOLDER, INSULATED - FIELD FRAME BRUSH
-
2333283 HOLDER, FIELD FRAME BRUSH GROUNDHOLDER, FIELD FRAME BRUSH GROUND
-
2433270 BRUSH, FIELD FRAMEBRUSH, FIELD FRAME
-
2510-48409 SCREW, BRUSH LEAD TO FIELD FRAME BRUSHSCREW, BRUSH LEAD TO FIELD FRAME BRUSH
-
2633294 SUPPORT PACKAGE, GROUND AND INSULATED HOLDERSSUPPORT PACKAGE, GROUND AND INSULATED HOLDERS
-
2717-33280 PIN, GROUND AND INSULATED HOLDER TO SUPPORTPIN, GROUND AND INSULATED HOLDER TO SUPPORT
-
2833294 LEAD, FIELD FRAME BRUSHLEAD, FIELD FRAME BRUSH
-
2910-33250 SCREW, SUPPORT TO FIELD FRAMESCREW, SUPPORT TO FIELD FRAME
-
3013-26996 LOCKWASHER, SUPPORT SCREWLOCKWASHER, SUPPORT SCREW
-
3111-30968 NUT, SUPPORT SCREWNUT, SUPPORT SCREW
-
3224-33285 SPRING, FIELD FRAME BRUSHSPRING, FIELD FRAME BRUSH
-
3317-33257 PIN, DOWEL - FIELD FRAME TO DRIVE END HOUSINGPIN, DOWEL - FIELD FRAME TO DRIVE END HOUSING
-
3433297 LEVER, SHIFT - DRIVE END HOUSINGLEVER, SHIFT - DRIVE END HOUSING
-
3533310 SHAFT, SHIFT LEVER TO DRIVE END HOUSINGSHAFT, SHIFT LEVER TO DRIVE END HOUSING
-
3653-33354 RING, RETAINING - SHIFT LEVER TO DRIVE END HOUSING SHAFTRING, RETAINING - SHIFT LEVER TO DRIVE END HOUSING SHAFT
-
3733317 PLUNGER, SHIFT LEVER - SOLENOID SWITCHPLUNGER, SHIFT LEVER - SOLENOID SWITCH
-
3817-24198 PIN, PLUNGER TO SHIFT LEVERPIN, PLUNGER TO SHIFT LEVER
-
3924-46889 SPRING, PLUNGER RETURN - SOLENOID SWITCHSPRING, PLUNGER RETURN - SOLENOID SWITCH
-
4010-28713 SCREW, SOLENOID SWITCH TO DRIVE END HOUSINGSCREW, SOLENOID SWITCH TO DRIVE END HOUSING
-
4133261 SOLENOID SWITCH ASSEMBLYSOLENOID SWITCH ASSEMBLY
-
4233261 CONTACT AND PUSH ROD ASSEMBLYCONTACT AND PUSH ROD ASSEMBLY
-
4324-33265 SPRING, CONTACT AND PUSH ROD TENSIONSPRING, CONTACT AND PUSH ROD TENSION
-
4433303 COVER, SOLENOID SWITCHCOVER, SOLENOID SWITCH
-
4516-33304 STUD, RESISTOR TERMINAL (10-32)STUD, RESISTOR TERMINAL (10-32)
-
4633305 CONTACT, RESISTOR TERMINAL STUDCONTACT, RESISTOR TERMINAL STUD
-
4713-26996 LOCKWASHER, RESISTOR TERMINAL STUD (#10)LOCKWASHER, RESISTOR TERMINAL STUD (#10)
-
4811-68219 NUT, RESISTOR TERMINAL STUD (10-32)NUT, RESISTOR TERMINAL STUD (10-32)
-
--13-26995 LOCKWASHER, SWITCH TERMINAL STUD (#8)LOCKWASHER, SWITCH TERMINAL STUD (#8)
-
--11-21923T NUT, SWITCH TERMINAL STUD (8-32)NUT, SWITCH TERMINAL STUD (8-32)
-
4916-33299 STUD, MOTOR TERMINAL (3/8-16)STUD, MOTOR TERMINAL (3/8-16)
-
5016-33288 STUD, BATTERY TERMINAL (3/8-16)STUD, BATTERY TERMINAL (3/8-16)
-
5112-33289 WASHER, BATTERY AND MOTOR TERMINAL STUD (3/8)WASHER, BATTERY AND MOTOR TERMINAL STUD (3/8)
-
5211-32219 NUT, BATTERY AND MOTOR TERMINAL STUD (3/8-16)NUT, BATTERY AND MOTOR TERMINAL STUD (3/8-16)
-
5313-35048 LOCKWASHER, BATTERY TERMINAL STUD (3/8)LOCKWASHER, BATTERY TERMINAL STUD (3/8)
-
5411-32219 NUT, BATTERY TERMINAL STUD (3/8-16)NUT, BATTERY TERMINAL STUD (3/8-16)
-
5516-33262 STUD, SWITCH TERMINAL (8-32)STUD, SWITCH TERMINAL (8-32)
-
5654-33307 CLIP, SWITCH TERMINAL STUDCLIP, SWITCH TERMINAL STUD
-
5712-33279 WASHER, PLASTIC - SWITCH TERMINAL STUD (#8)WASHER, PLASTIC - SWITCH TERMINAL STUD (#8)
-
5811-68219 NUT, SWITCH TERMINAL STUD (8-32)NUT, SWITCH TERMINAL STUD (8-32)
-
5913-26995 LOCKWASHER, SWITCH TERMINAL STUD (#8)LOCKWASHER, SWITCH TERMINAL STUD (#8)
-
6010-33248 SCREW, COVER TO SOLENOID SWITCHSCREW, COVER TO SOLENOID SWITCH
-
6112-33279 WASHER, PLASTIC - COVER SCREWWASHER, PLASTIC - COVER SCREW
-
6210-48266 SCREW, FIELD COIL LEAD TO SOLENOID SWITCHSCREW, FIELD COIL LEAD TO SOLENOID SWITCH
-
6313-26995 LOCKWASHER, FIELD COIL LEAD SCREWLOCKWASHER, FIELD COIL LEAD SCREW
