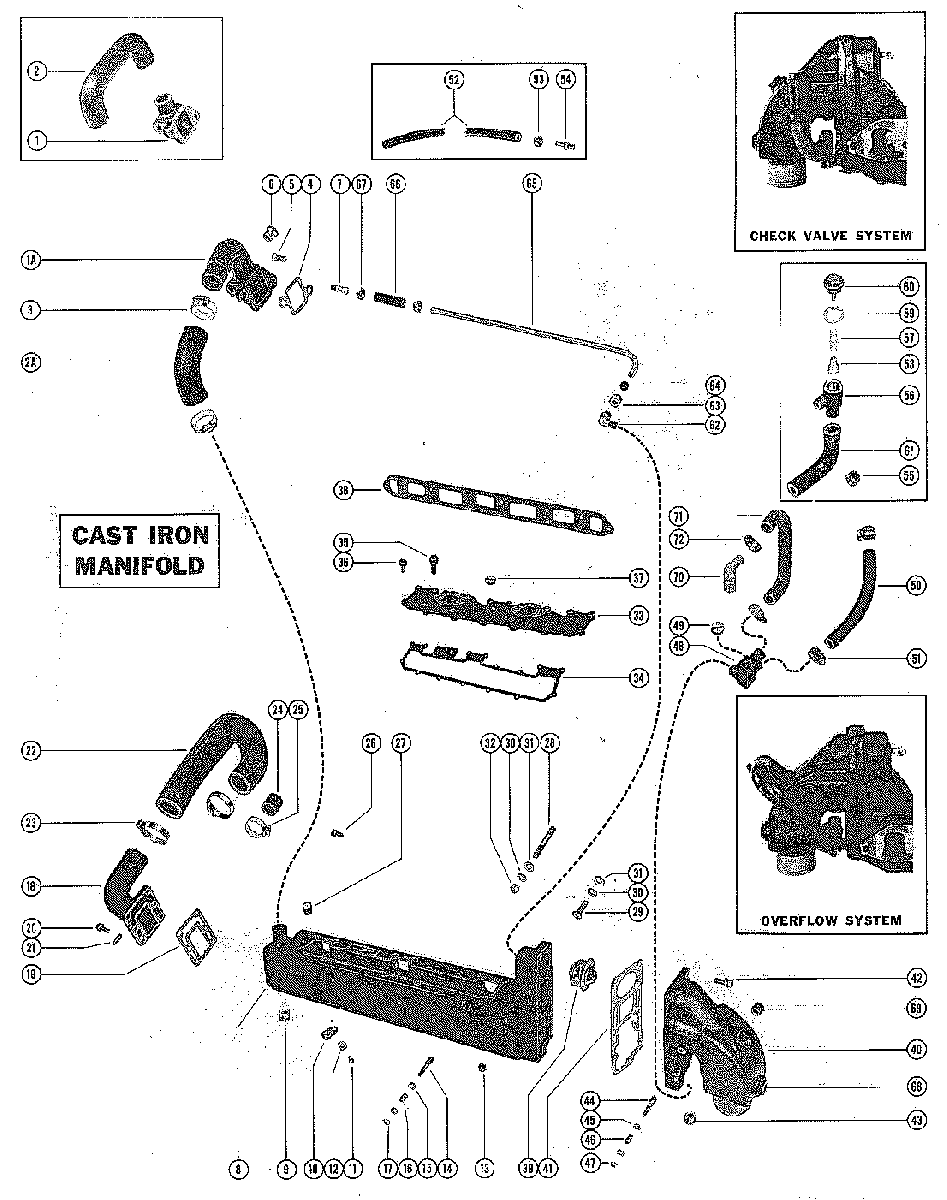

EXHAUST MANIFOLD ASSEMBLY(CAST IRON MANIFOLD) для Mercruiser - 150 GM 230 I/L6 1964-1966 1666495 THRU 2048046

  • №
    Артикул
    Название
  • 1
    38057T ELBOW, WATER OUTLET - CYLINDER HEAD
    SERIAL 00000000-01823075
    ELBOW, WATER OUTLET - CYLINDER HEAD
    SERIAL 00000000-01823075
  • 2
    32-33485 HHOSE, WATER OUTLET ELBOW TO EXHAUST MANIFOLD
    SERIAL 00000000-01823075
    HHOSE, WATER OUTLET ELBOW TO EXHAUST MANIFOLD
    SERIAL 00000000-01823075
  • 1A
    38057T ELBOW, WATER OUTLET - CYLINDER HEAD
    SERIAL 01823076-09999999
    ELBOW, WATER OUTLET - CYLINDER HEAD
    SERIAL 01823076-09999999
  • 2A
    32-38066 HOSE, WATER OUTLET ELBOW TO EXHAUST MANIFOLD
    SERIAL 01823076-09999999
    HOSE, WATER OUTLET ELBOW TO EXHAUST MANIFOLD
    SERIAL 01823076-09999999
  • 3
    54-815504220 CLAMP, HOSE TO WATER OUTLET ELBOW AND EXHAUST MANIFOLD
    CLAMP, HOSE TO WATER OUTLET ELBOW AND EXHAUST MANIFOLD
  • 4
    27-8146801 GASKET, WATER OUTLET ELBOW
    GASKET, WATER OUTLET ELBOW
  • 5
    10-21077 SCREW, WATER OUTLET ELBOW TO CYLINDER HEAD (7/8")
    SCREW, WATER OUTLET ELBOW TO CYLINDER HEAD (7/8")
  • 6
    22-32804 PLUG, PIPE - WATER OUTLET ELBOW
    PLUG, PIPE - WATER OUTLET ELBOW
  • 7
    22-33060 NIPPLE, BLEED HOSE TO WATER OUTLET ELBOW
    NIPPLE, BLEED HOSE TO WATER OUTLET ELBOW
  • 8
    58759A11 BODY, EXHAUST MANIFOLD
    BODY, EXHAUST MANIFOLD
  • 9
    22-384071 PLUG, PIPE - EXHAUST MANIFOLD BODY (1/2 - 14)
    PLUG, PIPE - EXHAUST MANIFOLD BODY (1/2 - 14)
  • 10
    54-22627 CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD BODY (1/2)
    CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD BODY (1/2)
  • 11
    10-32228 SCREW, WIRING HARNESS CLAMP SCREW (5/8")
    SCREW, WIRING HARNESS CLAMP SCREW (5/8")
  • 12
    8M0084613 "D" WASHER, WIRING HARNESS CLAMP SCREW
    "D" WASHER, WIRING HARNESS CLAMP SCREW
  • 13
    22-328022 PLUG, PIPE - EHAUST MANIFOLD BODY (1/8 - 27)
    PLUG, PIPE - EHAUST MANIFOLD BODY (1/8 - 27)
  • 14
    16-35897 TTLE LEVER TO EXHAUST MANIFOLD BODY USE WITH DUAL CARBURETOR
    TTLE LEVER TO EXHAUST MANIFOLD BODY USE WITH DUAL CARBURETOR
  • 15
    12-69056 WASHER, THROTTLE LEVER STUD USE WITH DUAL CARBURETOR ONLY
    WASHER, THROTTLE LEVER STUD USE WITH DUAL CARBURETOR ONLY
  • 16
    23-32796 BUSHUNG, THROTTLE LEVER STUD USE WITH DUAL CARBURETOR ONLY
    BUSHUNG, THROTTLE LEVER STUD USE WITH DUAL CARBURETOR ONLY
  • 17
    11-826709109 NUT, THROTTLE LEVER STUD USE WITH DUAL CARBURETOR
    NUT, THROTTLE LEVER STUD USE WITH DUAL CARBURETOR
  • 18
    35893 ELBOW, WATER OUTLET - EXHAUST MANIFOLD BODY
    ELBOW, WATER OUTLET - EXHAUST MANIFOLD BODY
  • 19
    27-35895 GASKET, WATER OUTLET ELBOW
    GASKET, WATER OUTLET ELBOW
  • 20
    10-39970 SCREW, WATER OUTLET ELBOW TO EXHAUST MANIFOLD BODY (1")
    SCREW, WATER OUTLET ELBOW TO EXHAUST MANIFOLD BODY (1")
  • 21
    53-78201 RETAINER, WATER OUTLET ELBOW SCREW - THROTTLE RETURN SPRING
    RETAINER, WATER OUTLET ELBOW SCREW - THROTTLE RETURN SPRING
  • 22
    32-33484 HOSE, WATER OUTLET ELBOW TO WATER PUMP
    HOSE, WATER OUTLET ELBOW TO WATER PUMP
  • 23
    54-815504228 CLAMP, HOSE TO WATER OUTLET ELBOW AND WATER PUMP
    CLAMP, HOSE TO WATER OUTLET ELBOW AND WATER PUMP
  • 24
    32877 COVER, WATER PUMP
    COVER, WATER PUMP
  • 25
    54-815504412 CLAMP, WATER PUMP COVER TO WATER PUMP
    CLAMP, WATER PUMP COVER TO WATER PUMP
  • 26
    10-25299 SCREW, WATER PUMP FLANGE (3/4")
    SCREW, WATER PUMP FLANGE (3/4")
  • 27
    22-36382 PLUG, PIPE - EXHAUST MANIFOLD BODY (1/4 - 18)
    PLUG, PIPE - EXHAUST MANIFOLD BODY (1/4 - 18)
  • 28
    16-49915 STUD, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (1 1/2")
    STUD, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (1 1/2")
  • 29
    10-21077 SCREW, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (7/8")
    SCREW, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (7/8")
  • 29
    10-37612 SCREW, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (1 1/4")
    SCREW, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (1 1/4")
  • 30
    13-35048 LOCKWASHER, EXHAUST MANIFOLD BODY STUD AND SCREW
    LOCKWASHER, EXHAUST MANIFOLD BODY STUD AND SCREW
  • 31
    12-20553 WASHER, EXHAUST MANIFOLD BODY STUD AND SCREW
    WASHER, EXHAUST MANIFOLD BODY STUD AND SCREW
  • 32
    11-20087 NUT, EXHAUST MANIFOLD BODY STUD
    NUT, EXHAUST MANIFOLD BODY STUD
  • 33
    36113 COVER, INTAKE MANIFOLD
    COVER, INTAKE MANIFOLD
  • 34
    27-39255 GASKET, INTAKE MANIFOLD COVER
    GASKET, INTAKE MANIFOLD COVER
  • 35
    10-35385 SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1 3/4)
    SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1 3/4)
  • 36
    10-39970 SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1")
    SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1")
  • 33
    38981 COVER, INTAKE MANIFOLD - NOT AS SHOWN
    COVER, INTAKE MANIFOLD - NOT AS SHOWN
  • 34
    27-39255 GASKET, INTAKE MANIFOLD COVER
    GASKET, INTAKE MANIFOLD COVER
  • 35
    10-38535 SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1 1/2)
    SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1 1/2)
  • 36
    10-39970 SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1")
    SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1")
  • 37
    22-36382 PLUG, PIPE - INTAKE MANIFOLD COVER
    PLUG, PIPE - INTAKE MANIFOLD COVER
  • 38
    27-46401 GASKET, EXHAUST MANIFOLD BODY TO CYLINDER HEAD
    GASKET, EXHAUST MANIFOLD BODY TO CYLINDER HEAD
  • 39
    8M0089715 THERMOSTAT
    THERMOSTAT
  • 40
    35892A1 ELBOW, EXHAUST - EXHAUST MANIFOLD BODY
    ELBOW, EXHAUST - EXHAUST MANIFOLD BODY
  • 40
    35892A1 ELBOW, EXHAUST - EXHAUST MANIFOLD BODY
    ELBOW, EXHAUST - EXHAUST MANIFOLD BODY
  • 31
    27-35894 GASKET, EXHAUST ELBOW
    GASKET, EXHAUST ELBOW
  • 42
    10-39970 SCREW, EXHAUST ELBOW TO EXHAUST MANIFOLD BODY (1")
    SCREW, EXHAUST ELBOW TO EXHAUST MANIFOLD BODY (1")
  • 43
    22-36373 PLUG, EXHAUST ELBOW (UNDER BEND)
    PLUG, EXHAUST ELBOW (UNDER BEND)
  • 44
    16-35897 STUD, REMOTE CONTROL CABLE TO EXHAUST ELBOW
    STUD, REMOTE CONTROL CABLE TO EXHAUST ELBOW
  • 45
    12-69056 WASHER, REMOTE CONTROL CABLE STUD
    WASHER, REMOTE CONTROL CABLE STUD
  • 46
    23-31866 SPACER, REMOTE CONTROL CABLE STUD
    SPACER, REMOTE CONTROL CABLE STUD
  • 47
    11-826709109 NUT, REMOTE CONTROL CABLE STUD
    NUT, REMOTE CONTROL CABLE STUD
  • 48
    22-36106 TEE, EXHAUST ELBOW
    TEE, EXHAUST ELBOW
  • 49
    22-32803 PLUG, PIPE - EXHAUST ELBOW TEE (3/8 - 18)
    PLUG, PIPE - EXHAUST ELBOW TEE (3/8 - 18)
  • 50
    32-47642 HOSE, WATER INLET - EXHAUST ELBOW TEE (10 1/2")
    HOSE, WATER INLET - EXHAUST ELBOW TEE (10 1/2")
  • 51
    54-815504412 CLAMP, WATER INLET HOSE FASTENING
    CLAMP, WATER INLET HOSE FASTENING
  • 52
    32-8M0108355 HOSE, BLEED - WATER OUTLET ELBOW TO EXHAUST MANIFOLD (28 1/4)
    SERIAL 00000000-01823075
    HOSE, BLEED - WATER OUTLET ELBOW TO EXHAUST MANIFOLD (28 1/4)
    SERIAL 00000000-01823075
  • 53
    54-20386 CLAMP, BLEED HOSE FASTENING
    SERIAL 00000000-01823075
    CLAMP, BLEED HOSE FASTENING
    SERIAL 00000000-01823075
  • 54
    22-33060 NIPPLE, BLEED HOSE TO EXHAUST MANIFOLD BODY
    SERIAL 00000000-01823075
    NIPPLE, BLEED HOSE TO EXHAUST MANIFOLD BODY
    SERIAL 00000000-01823075
  • 55
    22-416223 PLUG, EXHAUST ELBOW
    SERIAL 00000000-01823075
    PLUG, EXHAUST ELBOW
    SERIAL 00000000-01823075
  • 56
    35896A1 BODY ASSEMBLY, RELIEF VALVE - EXHAUST ELBOW
    SERIAL 00000000-01823075
    BODY ASSEMBLY, RELIEF VALVE - EXHAUST ELBOW
    SERIAL 00000000-01823075
  • 57
    24-35087A1 SPRING ASSEMBLY, RELIEF VALVE BODY
    SERIAL 00000000-01823075
    SPRING ASSEMBLY, RELIEF VALVE BODY
    SERIAL 00000000-01823075
  • 58
    35086 BUTTON, RELIEF VALVE BODY
    SERIAL 00000000-01823075
    BUTTON, RELIEF VALVE BODY
    SERIAL 00000000-01823075
  • 59
    27-32019 GASSKET, RELIEF VALVE BODY CAP
    SERIAL 00000000-01823075
    GASSKET, RELIEF VALVE BODY CAP
    SERIAL 00000000-01823075
  • 60
    32729A1 CAP ASSEMBLY, RELEIF VALVE BODY
    SERIAL 00000000-01823075
    CAP ASSEMBLY, RELEIF VALVE BODY
    SERIAL 00000000-01823075
  • 61
    32-36109 HOSE, EXHAUST ELBOW TEE TO RELIEF VALVE BODY
    SERIAL 00000000-01823075
    HOSE, EXHAUST ELBOW TEE TO RELIEF VALVE BODY
    SERIAL 00000000-01823075
  • --
    54-815504310 CLAMP, HOSE TO EXHAUST ELBOW TEE AND RELIEF VALVE BODY
    SERIAL 00000000-01823075
    CLAMP, HOSE TO EXHAUST ELBOW TEE AND RELIEF VALVE BODY
    SERIAL 00000000-01823075
  • 62
    22-30174 ELBOW, BLEED TUBE TO EXHAUST MANIFOLD BODY
    SERIAL 01823076-09999999
    ELBOW, BLEED TUBE TO EXHAUST MANIFOLD BODY
    SERIAL 01823076-09999999
  • 63
    22-30177 NUT, COMPRESSION - BLEED TUBE ELBOW
    SERIAL 01823076-09999999
    NUT, COMPRESSION - BLEED TUBE ELBOW
    SERIAL 01823076-09999999
  • 64
    22-30175 SLEEVE, COMPRESSION - BLEED TUBE ELBOW
    SERIAL 01823076-09999999
    SLEEVE, COMPRESSION - BLEED TUBE ELBOW
    SERIAL 01823076-09999999
  • 65
    32-38064 TUBE, BLEED - BLEED HOSE TO EXHAUST MANIFOLD BODY
    SERIAL 01823076-09999999
    TUBE, BLEED - BLEED HOSE TO EXHAUST MANIFOLD BODY
    SERIAL 01823076-09999999
  • 66
    32-8M0108355 HOSE, BLEED TUBE TO WATER OUTLET ELBOW (2")
    SERIAL 01823076-09999999
    HOSE, BLEED TUBE TO WATER OUTLET ELBOW (2")
    SERIAL 01823076-09999999
  • 67
    54-20386 CLAMP, BLEED HOSE FASTENING
    SERIAL 01823076-09999999
    CLAMP, BLEED HOSE FASTENING
    SERIAL 01823076-09999999
  • 68
    22-416223 PLUG, EXHAUST ELBOW
    SERIAL 01823076-09999999
    PLUG, EXHAUST ELBOW
    SERIAL 01823076-09999999
  • 69
    22-384071 PLUG, PIPE - EXHAUST ELBOW (1/2 -14)
    SERIAL 01823076-09999999
    PLUG, PIPE - EXHAUST ELBOW (1/2 -14)
    SERIAL 01823076-09999999
  • 70
    22-38062 FITTING, EXHAUST ELBOW
    SERIAL 01823076-09999999
    FITTING, EXHAUST ELBOW
    SERIAL 01823076-09999999
  • 71
    32-38065 HOSE, EXHAUST ELBOW TEE TO EXHAUST ELBOW FITTING
    SERIAL 01823076-09999999
    HOSE, EXHAUST ELBOW TEE TO EXHAUST ELBOW FITTING
    SERIAL 01823076-09999999
  • 72
    54-815504310 CLAMP, HOSE TO EXHAUST ELBOW TE AND FITTING
    SERIAL 01823076-09999999
    CLAMP, HOSE TO EXHAUST ELBOW TE AND FITTING
    SERIAL 01823076-09999999
