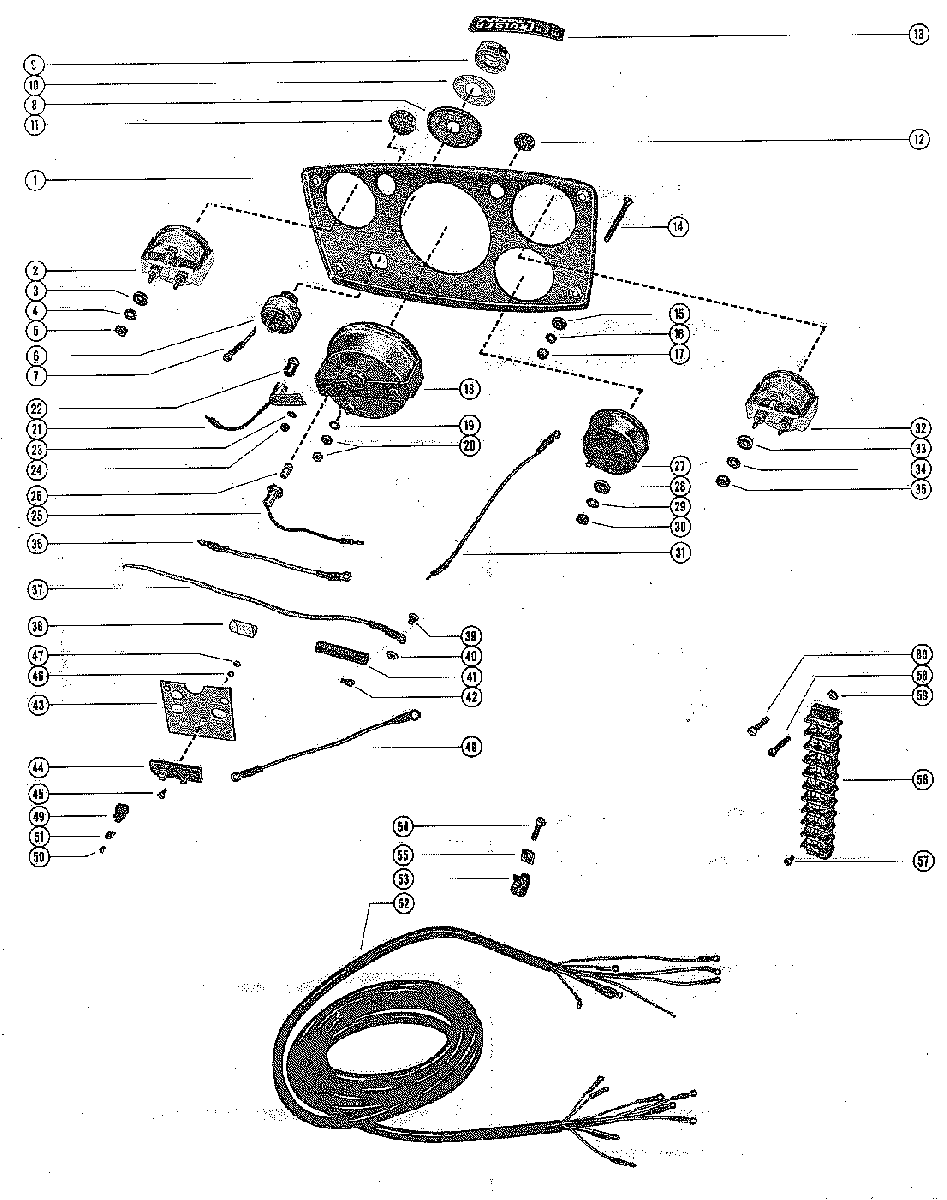

INSTRUMENT PANEL ASSEMBLY для Mercruiser - 150 GM 230 I/L6 1964-1966 1666495 THRU 2048046
-
№АртикулНазвание
-
-34095A6 INSTRUMENT PANEL ASSEMBLY, COMPLETEINSTRUMENT PANEL ASSEMBLY, COMPLETE
-
134102 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
259056A1 OIL PRESSURE GAUGE ASSEMBLYOIL PRESSURE GAUGE ASSEMBLY
-
312-33110 WASHER, FIBER - OIL PRESSURE GAUGE TERMINALWASHER, FIBER - OIL PRESSURE GAUGE TERMINAL
-
412-20878 WASHER, OIL PRESSURE GAUGE TERMINAL (#10)WASHER, OIL PRESSURE GAUGE TERMINAL (#10)
-
511-68219 NUT, OIL PRESSURE GAUGE TERMINAL (#10)NUT, OIL PRESSURE GAUGE TERMINAL (#10)
-
654212A9 SWITCH, IGNITION - INSTRUMENT PANEL (WITH KEY #C-30431)SWITCH, IGNITION - INSTRUMENT PANEL (WITH KEY #C-30431)
-
732870 JUMPER WIRE, IGNITION SWITCH TO OIL PRESSURE GAUGE (WHITE)JUMPER WIRE, IGNITION SWITCH TO OIL PRESSURE GAUGE (WHITE)
-
834093 PLATE, IGNITION SWITCHPLATE, IGNITION SWITCH
-
932861 BEZEL, IGNITION SWITCH TO INSTRUMENT PANEL EARLY STYLEBEZEL, IGNITION SWITCH TO INSTRUMENT PANEL EARLY STYLE
-
937275 BEZEL, IGNITION SWITCH TO INSTRUMENT PANEL LATER STYLEBEZEL, IGNITION SWITCH TO INSTRUMENT PANEL LATER STYLE
-
1038-46971 INSERT, IGNITION SWITCH BEZEL LATER STYLEINSERT, IGNITION SWITCH BEZEL LATER STYLE
-
1119-32863 BUTTON, PLUG - INSTRUMENT PANEL (LARGE)BUTTON, PLUG - INSTRUMENT PANEL (LARGE)
-
1219-32862 BUTTON, PLUG - INSTRUMENT PANEL (SMALL)BUTTON, PLUG - INSTRUMENT PANEL (SMALL)
-
1337-32851 DECAL, INSTRUMENT PANELDECAL, INSTRUMENT PANEL
-
1410-32866 SCREW, INSTRUMENT PANEL TO DASH BOARDSCREW, INSTRUMENT PANEL TO DASH BOARD
-
1512-33110 WASHER, FIBER - INSTRUMENT PANEL TO DASH BOARD SCREWWASHER, FIBER - INSTRUMENT PANEL TO DASH BOARD SCREW
-
1612-20878 WASHER, INSTRUMENT PANEL TO DASH BOARD SCREWWASHER, INSTRUMENT PANEL TO DASH BOARD SCREW
-
1711-8267086 NUT, INSTRUMENT PANEL TO DASH BOARD SCREWNUT, INSTRUMENT PANEL TO DASH BOARD SCREW
-
1879-73675A1 TACHOMETER ASSEMBLYTACHOMETER ASSEMBLY
-
1912-20878 WASHER, TACHOMETER TERMINAL (#10)WASHER, TACHOMETER TERMINAL (#10)
-
2011-68219 NUT, TACHOMETER TERMINAL (#10)NUT, TACHOMETER TERMINAL (#10)
-
2132865 SOCKET, LIGHT BULB - INSTRUMENT PANELSOCKET, LIGHT BULB - INSTRUMENT PANEL
-
2288-67920 LIGHT BULB, INSTRUMENT PANEL SOCKETLIGHT BULB, INSTRUMENT PANEL SOCKET
-
2312-20878 WASHER, TACHOMETER LIGHT SOCKET TERMINAL (#10)WASHER, TACHOMETER LIGHT SOCKET TERMINAL (#10)
-
2411-68219 NUT, TACHOMETER LIGHT SOCKET TERMINAL (#10)NUT, TACHOMETER LIGHT SOCKET TERMINAL (#10)
-
2549917A4 SOCKET, LIGHT BULB - TACHOMETERSOCKET, LIGHT BULB - TACHOMETER
-
2688-67920 LIGHT BULB, TACHOMETER SOCKETLIGHT BULB, TACHOMETER SOCKET
-
2765639A1 AMMETER GAUGE ASSEMBLYAMMETER GAUGE ASSEMBLY
-
2812-33110 WASHER, FIBER - AMMETER GAUGE TERMINALWASHER, FIBER - AMMETER GAUGE TERMINAL
-
2912-20878 WASHER, AMMETER GAUGE TERMINAL (#10)WASHER, AMMETER GAUGE TERMINAL (#10)
-
3011-68219 NUT, AMMETER GAUGE TERMINAL (#10)NUT, AMMETER GAUGE TERMINAL (#10)
-
3134096 JUMPER WIRE, IGNITION SWITCH TO AMMETER GAUGE (RED - 7 3/4")JUMPER WIRE, IGNITION SWITCH TO AMMETER GAUGE (RED - 7 3/4")
-
3259054A1 WATER TEMPERATURE GAUGE ASSEMBLYWATER TEMPERATURE GAUGE ASSEMBLY
-
3312-33110 WASHER, FIBER - WATER TEMPERATURE GAUGE TERMINALWASHER, FIBER - WATER TEMPERATURE GAUGE TERMINAL
-
3412-20878 WASHER, WATER TEMPERTURE GAUGE TERMINAL (#10)WASHER, WATER TEMPERTURE GAUGE TERMINAL (#10)
-
3511-68219 NUT, WATER TEMPERATURE GAUGE TERMINAL (#10)NUT, WATER TEMPERATURE GAUGE TERMINAL (#10)
-
3632871 JUMPER WIRE, WATER GAUGE TO OIL GAUGE (WHITE - 8 3/4")JUMPER WIRE, WATER GAUGE TO OIL GAUGE (WHITE - 8 3/4")
-
3732872 JUMPER WIRE, IGNITION SWITICH TO REMOTE CONTROL (YELLOW - 1)JUMPER WIRE, IGNITION SWITICH TO REMOTE CONTROL (YELLOW - 1)
-
3833865 BINDER, WIRING HARNESS AND JUMPER WIRESBINDER, WIRING HARNESS AND JUMPER WIRES
-
3910-24231 SCREW, JUMP WIRE TO REMOTE CONTROL SWITCH WIRESCREW, JUMP WIRE TO REMOTE CONTROL SWITCH WIRE
-
4011-68219 NUT, JUMPER WIRE SCREWNUT, JUMPER WIRE SCREW
-
4185-623594 SLEEVE, INSTRUMENT PANEL JUMPER WIRESLEEVE, INSTRUMENT PANEL JUMPER WIRE
-
4222924 TERMINAL, INSTRUMENT PANEL JUMPER WIRE (#10)TERMINAL, INSTRUMENT PANEL JUMPER WIRE (#10)
-
4333824 BRACKET, MOUNTING - WIRING HARNESS CLAMPSBRACKET, MOUNTING - WIRING HARNESS CLAMPS
-
4434097 FUSE BLOCK, INSTRUMENT PANELFUSE BLOCK, INSTRUMENT PANEL
-
4510-34123 SCREW, FUSE BLOCK TO MOUNTING BRACKETSCREW, FUSE BLOCK TO MOUNTING BRACKET
-
4613-26994 LOCKWASHER, FUSE BLOCK SCREWLOCKWASHER, FUSE BLOCK SCREW
-
4711-21270 NUT, FUSE BLOCK SCREWNUT, FUSE BLOCK SCREW
-
4834092 JUMPER WIRE, FUSE BLOCK TO AMMETER GAUGE (RED - 6 1/2")JUMPER WIRE, FUSE BLOCK TO AMMETER GAUGE (RED - 6 1/2")
-
4954-24871 CLAMP, WIRING HARNESS TO MOUNTING BRACKETCLAMP, WIRING HARNESS TO MOUNTING BRACKET
-
5010-29762 SCREW, WIRING HARNESS AND BALLAST CLAMP TO MOUNTING BRACKETSCREW, WIRING HARNESS AND BALLAST CLAMP TO MOUNTING BRACKET
-
518M0084613 "D" WASHER, WIRING HARNESS AND BALLAST CLAMP SCREW"D" WASHER, WIRING HARNESS AND BALLAST CLAMP SCREW
-
5234104 WIRING HARNESSWIRING HARNESS
-
5354-24871 CLAMP, WIRING HARNESS TO BOATCLAMP, WIRING HARNESS TO BOAT
-
5410-35401 SCREW, WOOD - WIRING HARNESS CLAMP TO BOATSCREW, WOOD - WIRING HARNESS CLAMP TO BOAT
-
558M0084613 "D" WASHER, WIRING HARNESS CLAMP SCREW"D" WASHER, WIRING HARNESS CLAMP SCREW
-
5632790 TERMINAL BLOCK, WIRING HARNESS LEADSTERMINAL BLOCK, WIRING HARNESS LEADS
-
5710-28739 SCREW, WIRING HARNESS LEADS TO TERMINAL BLOCKSCREW, WIRING HARNESS LEADS TO TERMINAL BLOCK
-
5810-20644 SCREW, TERMINAL BLOCK TO BOATSCREW, TERMINAL BLOCK TO BOAT
-
5911-68219 NUT, TERMINAL BLOCK TO BOAT SCREWNUT, TERMINAL BLOCK TO BOAT SCREW
-
6010-35401 SCREW, WOOD - TERMINAL BLOCK TO BOATSCREW, WOOD - TERMINAL BLOCK TO BOAT
