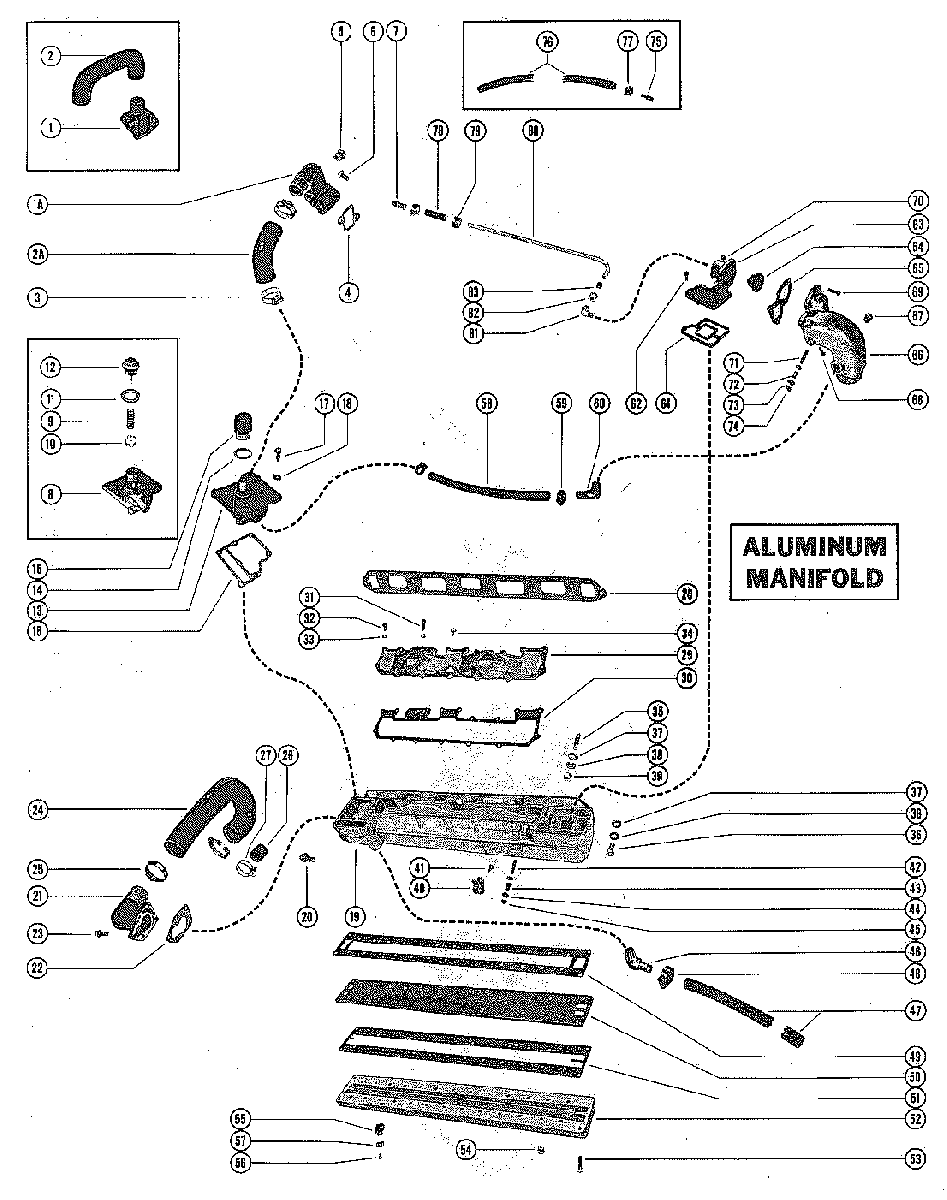

EXHAUST MANIFOLD ASSEMBLY(ALUMINUM MANIFOLD) для Mercruiser - 150 GM 230 I/L6 1964-1966 1666495 THRU 2048046

  • №
    Артикул
    Название
  • 1
    38057T ELBOW, WATER OUTLET - CYLINDER HEAD
    SERIAL 00000000-01823274
    ELBOW, WATER OUTLET - CYLINDER HEAD
    SERIAL 00000000-01823274
  • 2
    32-33485 HOSE, WATER OUTLET ELBOW TO FELIEF VALVE BODY
    SERIAL 00000000-01823274
    HOSE, WATER OUTLET ELBOW TO FELIEF VALVE BODY
    SERIAL 00000000-01823274
  • 1A
    38057T ELBOW, WATER OUTLET - CYLINDER HEAD
    SERIAL 01823275-09999999
    ELBOW, WATER OUTLET - CYLINDER HEAD
    SERIAL 01823275-09999999
  • 2A
    32-38066 HOSE, WATER OUTLET ELBOW TO WATER INLET COVER
    SERIAL 01823275-09999999
    HOSE, WATER OUTLET ELBOW TO WATER INLET COVER
    SERIAL 01823275-09999999
  • 3
    54-815504220 CLAMP, WATER OUTLET ELBOW HOSE FASTENING
    CLAMP, WATER OUTLET ELBOW HOSE FASTENING
  • 4
    27-8146801 GASKET, WATER OUTLET ELBOW
    GASKET, WATER OUTLET ELBOW
  • 5
    22-32804 PLUG, PIPE - WATER OUTLET ELBOW
    PLUG, PIPE - WATER OUTLET ELBOW
  • 6
    10-21077 SCREW, WATER OUTLET ELBOW TO CYLINDER HEAD (7/8")
    SCREW, WATER OUTLET ELBOW TO CYLINDER HEAD (7/8")
  • 7
    22-33060 NIPPLE, BLEED HOSE TO WATER ELBOW
    NIPPLE, BLEED HOSE TO WATER ELBOW
  • 8
    38058A1 BODY ASSEMBLY, RELIEF VALVE
    SERIAL 00000000-01823274
    BODY ASSEMBLY, RELIEF VALVE
    SERIAL 00000000-01823274
  • 9
    24-35087A1 SPRING ASSEMBLY, RELIEF VALVE BODY
    SERIAL 00000000-01823274
    SPRING ASSEMBLY, RELIEF VALVE BODY
    SERIAL 00000000-01823274
  • 10
    35086 BUTTON, CHECK VALVE - RELIEF VALVE BODY
    SERIAL 00000000-01823274
    BUTTON, CHECK VALVE - RELIEF VALVE BODY
    SERIAL 00000000-01823274
  • 11
    27-32019 GASKET, RELIEF VALVE BODY CAP
    SERIAL 00000000-01823274
    GASKET, RELIEF VALVE BODY CAP
    SERIAL 00000000-01823274
  • 12
    32729A1 CAP ASSEMBLY, RELIEF VALVE BODY
    SERIAL 00000000-01823274
    CAP ASSEMBLY, RELIEF VALVE BODY
    SERIAL 00000000-01823274
  • 13
    38058A1 COVER ASSEMBLY, WATER INLET
    SERIAL 01823275-09999999
    COVER ASSEMBLY, WATER INLET
    SERIAL 01823275-09999999
  • 14
    27-38061 GASKET, WATER INLET COVER CAP
    SERIAL 01823275-09999999
    GASKET, WATER INLET COVER CAP
    SERIAL 01823275-09999999
  • 15
    22-38060T CAP, WATER INLET COVER
    SERIAL 01823275-09999999
    CAP, WATER INLET COVER
    SERIAL 01823275-09999999
  • 16
    27-35144 GASKET, RELIEF VALVE BODY OR WATER INLET COVER
    GASKET, RELIEF VALVE BODY OR WATER INLET COVER
  • 17
    10-39970 SCREW, RELIEF VALVE BODY OR WATER INLET COVER TO EXHAUST MAN
    SCREW, RELIEF VALVE BODY OR WATER INLET COVER TO EXHAUST MAN
  • 18
    53-78201 RETAINER, RELIEF VALVE BODY SCREW - THROTTLE RETURN SPRING
    RETAINER, RELIEF VALVE BODY SCREW - THROTTLE RETURN SPRING
  • 19
    58759A11 BODY, EXHAUST MANIFOLD
    BODY, EXHAUST MANIFOLD
  • 20
    10-25299 SCREW, WATER PUMP FLANGE (3/4")
    SCREW, WATER PUMP FLANGE (3/4")
  • 21
    35149 ELBOW, WATER OUTLET - EXHAUST MANIFOLD BODY
    ELBOW, WATER OUTLET - EXHAUST MANIFOLD BODY
  • 22
    27-35150 GASKET, EXHAUST MANIFOLD ELBOW
    GASKET, EXHAUST MANIFOLD ELBOW
  • 23
    10-39970 SCREW, WATER OUTLET ELBOW TO EXHAUST MANIFOLD BODY (1")
    SCREW, WATER OUTLET ELBOW TO EXHAUST MANIFOLD BODY (1")
  • 24
    32-33484 HOSE, WATER OUTLET ELBOW TO WATER PUMP
    HOSE, WATER OUTLET ELBOW TO WATER PUMP
  • 25
    54-815504228 CLAMP, HOSE TO WATER OUTLET AND WATER PUMP
    CLAMP, HOSE TO WATER OUTLET AND WATER PUMP
  • 26
    32877 COVER, WATER PUMP
    COVER, WATER PUMP
  • 27
    54-815504412 CLAMP, WATER PUMP COVER TO WATER PUMP
    CLAMP, WATER PUMP COVER TO WATER PUMP
  • 28
    27-46401 GASKET, EXHAUST MANIFOLD BODY TO CYLINDER HEAD
    GASKET, EXHAUST MANIFOLD BODY TO CYLINDER HEAD
  • 29
    33086 COVER, INTAKE MANIFOLD
    SERIAL 00000000-01830151
    COVER, INTAKE MANIFOLD
    SERIAL 00000000-01830151
  • 30
    27-39256 GASKET, INTAKE MANIFOLD COVER
    SERIAL 00000000-01830151
    GASKET, INTAKE MANIFOLD COVER
    SERIAL 00000000-01830151
  • 31
    10-86885 SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1 5/8)
    SERIAL 00000000-01830151
    SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1 5/8)
    SERIAL 00000000-01830151
  • 32
    10-35582 SCRW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1")
    SERIAL 00000000-01830151
    SCRW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1")
    SERIAL 00000000-01830151
  • 33
    13-26992 LOCKWASHER, INTAKE MANIFOLD COVER SCREW
    SERIAL 00000000-01830151
    LOCKWASHER, INTAKE MANIFOLD COVER SCREW
    SERIAL 00000000-01830151
  • 29
    38980 COVER, INTAKE MANIFOLD - NOT AS SHOWN
    SERIAL 01830152-09999999
    COVER, INTAKE MANIFOLD - NOT AS SHOWN
    SERIAL 01830152-09999999
  • 30
    27-39256 GASKET, INTAKE MANIFOLD COVER
    SERIAL 01830152-09999999
    GASKET, INTAKE MANIFOLD COVER
    SERIAL 01830152-09999999
  • 31
    10-38326 SCREW, INTAKE MANIFOLD TO EXHAUST MANIFOLD BODY (1 5/8")
    SERIAL 01830152-09999999
    SCREW, INTAKE MANIFOLD TO EXHAUST MANIFOLD BODY (1 5/8")
    SERIAL 01830152-09999999
  • 32
    10-28667 SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1")
    SERIAL 01830152-09999999
    SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1")
    SERIAL 01830152-09999999
  • 34
    22-36382 PLUG, PIPE - INTAKE MANIFOLD COVER
    PLUG, PIPE - INTAKE MANIFOLD COVER
  • 35
    16-49915 STUD, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (1 1/2")
    STUD, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (1 1/2")
  • 36
    10-21077 SCREW, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (7/8")
    SCREW, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (7/8")
  • 37
    12-20553 WASHER, EXHAUST MANIFOLD BODY STUD AND SCREW
    WASHER, EXHAUST MANIFOLD BODY STUD AND SCREW
  • 38
    13-35048 LOCKWASHER, EXHAUST MANIFOLD BODY STUD AND SCREW
    LOCKWASHER, EXHAUST MANIFOLD BODY STUD AND SCREW
  • 39
    11-46335 NUT, EXHAUST MANIFOLD BODY STUD
    NUT, EXHAUST MANIFOLD BODY STUD
  • 40
    54-33461 CLAMP, DRAIN HOSE TO EXHAUST MANIFOLD BODY
    CLAMP, DRAIN HOSE TO EXHAUST MANIFOLD BODY
  • 41
    10-32228 SCREW, DRAIN HOSE CLAMP TO EXHAUST MANIFOLD BODY (5/8")
    SCREW, DRAIN HOSE CLAMP TO EXHAUST MANIFOLD BODY (5/8")
  • 42
    16-728091 STUD, REMOTE CONTROL CABLE TO EXHAUST ELBOW
    STUD, REMOTE CONTROL CABLE TO EXHAUST ELBOW
  • 43
    23-31866 SPACER, REMOTE CONTROL CABLE AND STUD
    SPACER, REMOTE CONTROL CABLE AND STUD
  • 44
    12-69056 WASHER, REMOTE CONTROL STUD
    WASHER, REMOTE CONTROL STUD
  • 45
    11-826709109 NUT, REMOTE CONTROL CABLE STUD
    NUT, REMOTE CONTROL CABLE STUD
  • 46
    22-32715 ELBOW, WATER INLET HOSE - EXHAUST MANIFOLD BODY
    ELBOW, WATER INLET HOSE - EXHAUST MANIFOLD BODY
  • 47
    32-47642 HOSE, WATER INLET - EXHAUST MANIFOLD BODY ELBOW TO DRIVE UNI
    HOSE, WATER INLET - EXHAUST MANIFOLD BODY ELBOW TO DRIVE UNI
  • 48
    54-815504310 CLAMP, WATER INLET HOSE FASTENING
    CLAMP, WATER INLET HOSE FASTENING
  • 49
    27-35152 GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD BODY
    GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD BODY
  • 50
    35151T PLATE, BAFFLE - EXHAUST MANIFOLD
    PLATE, BAFFLE - EXHAUST MANIFOLD
  • 51
    27-35154 GASKET, EXHAUST MANIFOLD COVER TO BAFFLE PLATE
    GASKET, EXHAUST MANIFOLD COVER TO BAFFLE PLATE
  • 52
    35153 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 53
    10-35385 SCREW, EXHAUST COVER AND BAFFLE PLATE TO EXHAUST MANIFOLD BO
    SCREW, EXHAUST COVER AND BAFFLE PLATE TO EXHAUST MANIFOLD BO
  • 54
    22-328022 PLUG, PIPE - EXHAUST MANIFOLD COVER
    PLUG, PIPE - EXHAUST MANIFOLD COVER
  • 55
    54-28938 CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD BODY (5/8")
    CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD BODY (5/8")
  • 56
    10-98253 SCREW, WIRIRNG HARNESS CLAMP TO EXHAUST MANIFOLD COVER (1/2")
    SCREW, WIRIRNG HARNESS CLAMP TO EXHAUST MANIFOLD COVER (1/2")
  • 57
    8M0084613 "D" WASHER, WIRING HARNESS CLAMP SCREW
    "D" WASHER, WIRING HARNESS CLAMP SCREW
  • 58
    32-47642 HOSE, DRAIN - RELIEF VALVE BODY OR WATER INLET COVER TO EXHA
    HOSE, DRAIN - RELIEF VALVE BODY OR WATER INLET COVER TO EXHA
  • 59
    54-815504310 CLAMP, DRAIN HOSE FASTENING
    CLAMP, DRAIN HOSE FASTENING
  • 60
    22-39668 ELBOW, DRAIN HOSE - EXHAUST ELBOW
    ELBOW, DRAIN HOSE - EXHAUST ELBOW
  • 61
    27-35146 GASKET, THERMOSTAT CONTAINER
    GASKET, THERMOSTAT CONTAINER
  • 62
    10-39970 SCREW, THERMOSTAT CONTAINER TO EXHAUST MANIFOLD BODY (1")
    SCREW, THERMOSTAT CONTAINER TO EXHAUST MANIFOLD BODY (1")
  • 63
    35145A1 CONTAINER, THERMOSTAT - EXHAUST MANIFOLD BODY
    CONTAINER, THERMOSTAT - EXHAUST MANIFOLD BODY
  • 64
    8M0089715 THERMOSTAT
    THERMOSTAT
  • 65
    27-35147 GASKET, EXHAUST ELBOW
    GASKET, EXHAUST ELBOW
  • 66
    35148A1 ELBOW, EXHAUST - THERMOSTAT CONTAINER
    ELBOW, EXHAUST - THERMOSTAT CONTAINER
  • 66
    35148A1 ELBOW, EXHAUST - THERMOSTAT CONTAINER
    ELBOW, EXHAUST - THERMOSTAT CONTAINER
  • 67
    22-32803 PLUG, PIPE - EXHAUST ELBOW
    PLUG, PIPE - EXHAUST ELBOW
  • 68
    10-39970 SCREW, EXHAUST ELBOW TO THERMOSTAT CONTAINER (LOWER) - 1"
    SCREW, EXHAUST ELBOW TO THERMOSTAT CONTAINER (LOWER) - 1"
  • 69
    10-35156 SCREW, EXHAUST ELBOW TO THERMOSTAT CONTAINER (1 1/4")
    SCREW, EXHAUST ELBOW TO THERMOSTAT CONTAINER (1 1/4")
  • 70
    11-24652 NUT, EXHAUST ELBOW SCREW
    NUT, EXHAUST ELBOW SCREW
  • 71
    16-728091 STUD, THROTTLE LEVER TO EXHAUST MANIFOLD BODY
    STUD, THROTTLE LEVER TO EXHAUST MANIFOLD BODY
  • 72
    23-32796 BUSHING, THROTTLE LEVER STUD
    BUSHING, THROTTLE LEVER STUD
  • 73
    12-69056 WASHER, THROTTLE LEVER STUD
    WASHER, THROTTLE LEVER STUD
  • 74
    11-826709109 NUT, THROTTLE LEVER STUD
    NUT, THROTTLE LEVER STUD
  • 75
    22-33060 NIPPLE, BLEED HOSE TO THERMOSTAT CONTAINER
    SERIAL 00000000-01823274
    NIPPLE, BLEED HOSE TO THERMOSTAT CONTAINER
    SERIAL 00000000-01823274
  • 76
    32-8M0108355 HOSE, BLEED - WATER OUTLET ELBOW TO THERMOSTAT CONTAINER (28)
    SERIAL 00000000-01823274
    HOSE, BLEED - WATER OUTLET ELBOW TO THERMOSTAT CONTAINER (28)
    SERIAL 00000000-01823274
  • 77
    54-20386 CLAMP, BLEED HOSE FASTENING
    SERIAL 00000000-01823274
    CLAMP, BLEED HOSE FASTENING
    SERIAL 00000000-01823274
  • 78
    32-8M0108355 HOSE, BLEED - DLEED TUBE TO WATER OUTLET ELBOW (2")
    SERIAL 01823275-09999999
    HOSE, BLEED - DLEED TUBE TO WATER OUTLET ELBOW (2")
    SERIAL 01823275-09999999
  • 79
    54-20386 CLAMP, BLEED HOSE FASTENING
    SERIAL 01823275-09999999
    CLAMP, BLEED HOSE FASTENING
    SERIAL 01823275-09999999
  • 80
    32-38063 TUBE, BLEED- BLEED HOSE TO THERMOSTAT COVER
    SERIAL 01823275-09999999
    TUBE, BLEED- BLEED HOSE TO THERMOSTAT COVER
    SERIAL 01823275-09999999
  • 81
    22-30174 ELBOW, BLEED TUBE TO THERMOSTAT CONTAINER
    SERIAL 01823275-09999999
    ELBOW, BLEED TUBE TO THERMOSTAT CONTAINER
    SERIAL 01823275-09999999
  • 82
    22-30177 NUT, COMPRESSION - BLEED TUBE ELBOW
    SERIAL 01823275-09999999
    NUT, COMPRESSION - BLEED TUBE ELBOW
    SERIAL 01823275-09999999
  • 83
    22-30175 SLEEVE, COMPRESSION - BLEED TUBE ELBOW
    SERIAL 01823275-09999999
    SLEEVE, COMPRESSION - BLEED TUBE ELBOW
    SERIAL 01823275-09999999
