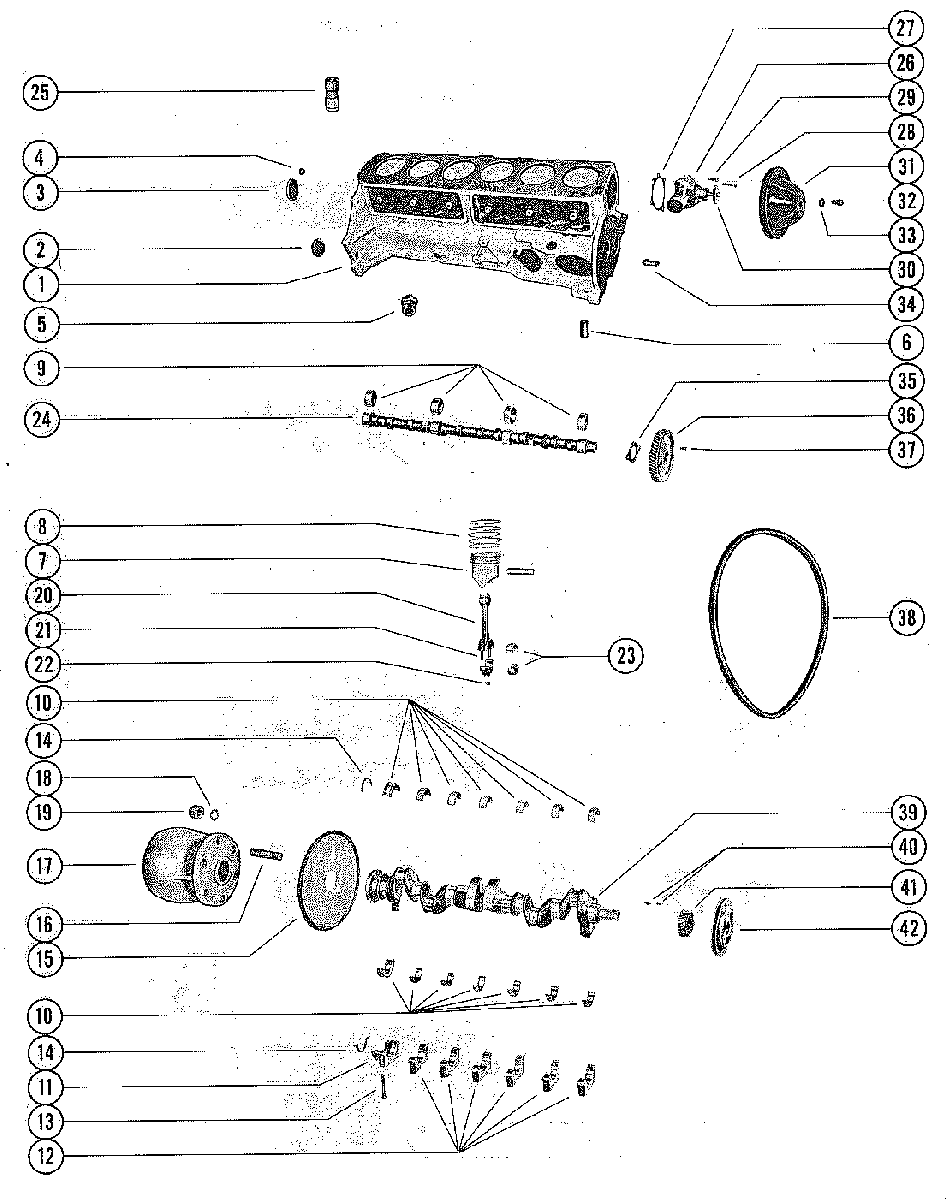

CYLINDER BLOCK, PISTON AND CRANKSHAFT для Mercruiser - 150 GM 230 I/L6 1964-1966 1666495 THRU 2048046

  • №
    Артикул
    Название
  • 1
    840-3550 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    19-34270 PLUG, EXPANSION - CYLINDER BLOCK (1 5/8" DIA.)
    PLUG, EXPANSION - CYLINDER BLOCK (1 5/8" DIA.)
  • 2
    19-34271 PLUG, EXPANSION - CYLINDER BLOCK (2" DIA.)
    PLUG, EXPANSION - CYLINDER BLOCK (2" DIA.)
  • 3
    22-72640 PLUG, EXPANSION - CAMSHAFT BEARING HOLE
    PLUG, EXPANSION - CAMSHAFT BEARING HOLE
  • 4
    22-36373 PLUG, PIPE - CYLINDER BLOCK (3/8")
    PLUG, PIPE - CYLINDER BLOCK (3/8")
  • 5
    22-36382 PLUG, WATER DRAIN - CYLINDER BLOCK
    PLUG, WATER DRAIN - CYLINDER BLOCK
  • 6
    23-35168 BEARING, DISTRIBUTOR PILOT SHAFT
    BEARING, DISTRIBUTOR PILOT SHAFT
  • 7
    736-2343 PISTON AND PISTON PIN ASSEMBLY (STANDARD)
    PISTON AND PISTON PIN ASSEMBLY (STANDARD)
  • 7
    736-2343 PISTON AND PISTON PIN ASSEMBLY (.002 O.S.)
    USE STANDARD PISTON RING
    PISTON AND PISTON PIN ASSEMBLY (.002 O.S.)
    USE STANDARD PISTON RING
  • 7
    733-2279 PISTON AND PISTON PIN ASSEMBLY (.020 O.S.)
    PISTON AND PISTON PIN ASSEMBLY (.020 O.S.)
  • 8
    39-67132 RING, PISTON - 4 SETS (STANDARD)
    ORDER 2 SETS FOR 6 CYLINDER
    RING, PISTON - 4 SETS (STANDARD)
    ORDER 2 SETS FOR 6 CYLINDER
  • 8
    39-67120 RING, PISTON - 4 SETS (.020 O.S.)
    RING, PISTON - 4 SETS (.020 O.S.)
  • 9
    23-34457 BEARING SET (4 PAIR), CAMSHAFT
    BEARING SET (4 PAIR), CAMSHAFT
  • 10
    23-34463 BEARING SET (5 PAIR), CRANKSHAFT MAIN (STANDARD)
    6 CYLINDER HAS 7 MAIN BEARINGS- ORDER 2 SETS
    BEARING SET (5 PAIR), CRANKSHAFT MAIN (STANDARD)
    6 CYLINDER HAS 7 MAIN BEARINGS- ORDER 2 SETS
  • 10
    23-34494 BEARING SET (5 PAIR), CRANKSHAFT MAIN (.001 U.S.)
    6 CYLINDER HAS 7 MAIN BEARINGS- ORDER 2 SETS
    BEARING SET (5 PAIR), CRANKSHAFT MAIN (.001 U.S.)
    6 CYLINDER HAS 7 MAIN BEARINGS- ORDER 2 SETS
  • 10
    23-34495 BEARING SET (5 PAIR), CRANKSHAFT MAIN (.002 U.S.)
    6 CYLINDER HAS 7 MAIN BEARINGS- ORDER 2 SETS
    BEARING SET (5 PAIR), CRANKSHAFT MAIN (.002 U.S.)
    6 CYLINDER HAS 7 MAIN BEARINGS- ORDER 2 SETS
  • 10
    23-34496 BEARING SET (5 PAIR), CRANKSHAFT MAIN (.010 U.S.)
    6 CYLINDER HAS 7 MAIN BEARINGS- ORDER 2 SETS
    BEARING SET (5 PAIR), CRANKSHAFT MAIN (.010 U.S.)
    6 CYLINDER HAS 7 MAIN BEARINGS- ORDER 2 SETS
  • 10
    23-34497 BEARING SET (5 PAIR), CRANKSHAFT MAIN (020 U.S.)
    6 CYLINDER HAS 7 MAIN BEARINGS- ORDER 2 SETS
    BEARING SET (5 PAIR), CRANKSHAFT MAIN (020 U.S.)
    6 CYLINDER HAS 7 MAIN BEARINGS- ORDER 2 SETS
  • 11
    34498 CAP,REAR - CRANKSHAFT BEARING
    CAP,REAR - CRANKSHAFT BEARING
  • 12
    35310 CAP, INTERMEDIATE AND FRONT - CRANKSHAFT BEARING
    CAP, INTERMEDIATE AND FRONT - CRANKSHAFT BEARING
  • --
    15-34533 SHIM UNIT, BEARING CAP - FRONT AND INTERMEDIATE
    SHIM UNIT, BEARING CAP - FRONT AND INTERMEDIATE
  • --
    15-34534 SHIM UNIT, BEARING CAP - REAR
    SHIM UNIT, BEARING CAP - REAR
  • 13
    10-34499 BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK
    BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK
  • 14
    26-34462 OIL SEAL UNIT, CRANKSHAFT REAR BEARING
    OIL SEAL UNIT, CRANKSHAFT REAR BEARING
  • 15
    222-6355 FLYWHEEL, CRANKSHAFT
    FLYWHEEL, CRANKSHAFT
  • 16
    16-98532A1 STUD, FILWHEEL TO ENGINE COUPLING (2 1/16")
    STUD, FILWHEEL TO ENGINE COUPLING (2 1/16")
  • 17
    76850A2 ENGINE COUPLING ASSEMBLY
    ENGINE COUPLING ASSEMBLY
  • 18
    12-35935 WASHER, FLYWHEEL STUD
    WASHER, FLYWHEEL STUD
  • 19
    11-34933 NUT, FLYWHEEL STUD
    NUT, FLYWHEEL STUD
  • 20
    613-2277 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 21
    10-75539 BOLT, CONNECTING ROD BEARING CAP
    BOLT, CONNECTING ROD BEARING CAP
  • 22
    11-58099 NUT, CONNECTING ROD CAP BOLT
    NUT, CONNECTING ROD CAP BOLT
  • 23
    23-85677 BEARING SET (4 PAIR), CONNECTING ROD (STANDARD)
    ORDER 2 SETS FOR 6 CYLINDER
    BEARING SET (4 PAIR), CONNECTING ROD (STANDARD)
    ORDER 2 SETS FOR 6 CYLINDER
  • 23
    23-85678 BEARING (PAIR), CONNECTING ROD (.001 U.S.)
    BEARING (PAIR), CONNECTING ROD (.001 U.S.)
  • 23
    23-85679 BEARING (PAIR), CONNECTING ROD (.002 U.S.)
    BEARING (PAIR), CONNECTING ROD (.002 U.S.)
  • 23
    23-85680 BEARING (PAIR), CONNECTING ROD (.010 U.S.)
    BEARING (PAIR), CONNECTING ROD (.010 U.S.)
  • 23
    23-85681 BEARING (PAIR), CONNECTING ROD (.020 U.S.)
    BEARING (PAIR), CONNECTING ROD (.020 U.S.)
  • 24
    430-2426 CAMSHAFT
    CAMSHAFT
  • 25
    72638 LIFTER, VALVE - TAPPET
    SERIAL 00000000-01820929
    LIFTER, VALVE - TAPPET
    SERIAL 00000000-01820929
  • 25
    72638 LIFTER, VALVE - TAPPET
    SERIAL 01820903-09999999
    LIFTER, VALVE - TAPPET
    SERIAL 01820903-09999999
  • 26
    46-8M0113733 WATER PUMP ASSEMBLY (SPECIAL MARINE)
    WATER PUMP ASSEMBLY (SPECIAL MARINE)
  • 27
    27-879150138 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 28
    10-34471 SCREW, WATER PUMP TO CYLINDER BLOCK (1 1/2")
    SCREW, WATER PUMP TO CYLINDER BLOCK (1 1/2")
  • 29
    10-8M0043993 SCREW, WATER PUMP TO CYLINDER BLOCK (3/4")
    SCREW, WATER PUMP TO CYLINDER BLOCK (3/4")
  • 29
    10-34505 SCREW, WATER PUMP TO CYLINDER BLOCK (7/8")
    SCREW, WATER PUMP TO CYLINDER BLOCK (7/8")
  • 30
    34481 HUB, WATER PUMP PULLEY
    HUB, WATER PUMP PULLEY
  • --
    37242 REINFORCEMENT, WATER PUMP PULLEY
    REINFORCEMENT, WATER PUMP PULLEY
  • 31
    33864 PULLEY, WATER PUMP
    PULLEY, WATER PUMP
  • 32
    10-47277 SCREW, PULLEY AND HUB TO WATER PUMP (3/4")
    SCREW, PULLEY AND HUB TO WATER PUMP (3/4")
  • 33
    13-39107 LOCKWASHER, PULLEY AND HUB SCREW
    LOCKWASHER, PULLEY AND HUB SCREW
  • 34
    32-46471 NOZZLE, OIL - TIMING GEAR
    NOZZLE, OIL - TIMING GEAR
  • 35
    23-34469 BEARING, CAMSHAFT THRUST
    BEARING, CAMSHAFT THRUST
  • 36
    43-39165 GEAR, TIMING - CAMSHAFT (ALUMINUM)
    SERIAL 00000000-01820929
    GEAR, TIMING - CAMSHAFT (ALUMINUM)
    SERIAL 00000000-01820929
  • 36
    43-39165 GEAR, TIMING - CAMSHAFT (ALUMINUM)
    SERIAL 01820903-09999999
    GEAR, TIMING - CAMSHAFT (ALUMINUM)
    SERIAL 01820903-09999999
  • 37
    10-21417A1 SCREW, TIMING GEAR TO CAMSHAFT
    SCREW, TIMING GEAR TO CAMSHAFT
  • 38
    57-64032Q1 BELT, ALTERNATOR, WATER PUMP PULLEY AND CRANKSHAFT PULLEY
    BELT, ALTERNATOR, WATER PUMP PULLEY AND CRANKSHAFT PULLEY
  • 39
    425-2293 CRANKSHAFT
    CRANKSHAFT
  • 40
    28-34466 KEY, PULLEY AND GEAR LOCATING
    KEY, PULLEY AND GEAR LOCATING
  • 41
    43-34465 GEAR, CRANKSHAFT
    GEAR, CRANKSHAFT
  • 42
    8M0086946 BALANCER, HARMONIC - CRANKSHAFT
    BALANCER, HARMONIC - CRANKSHAFT
  • --
    54-34550 CLIP, FUEL FEED PIPE
    CLIP, FUEL FEED PIPE
