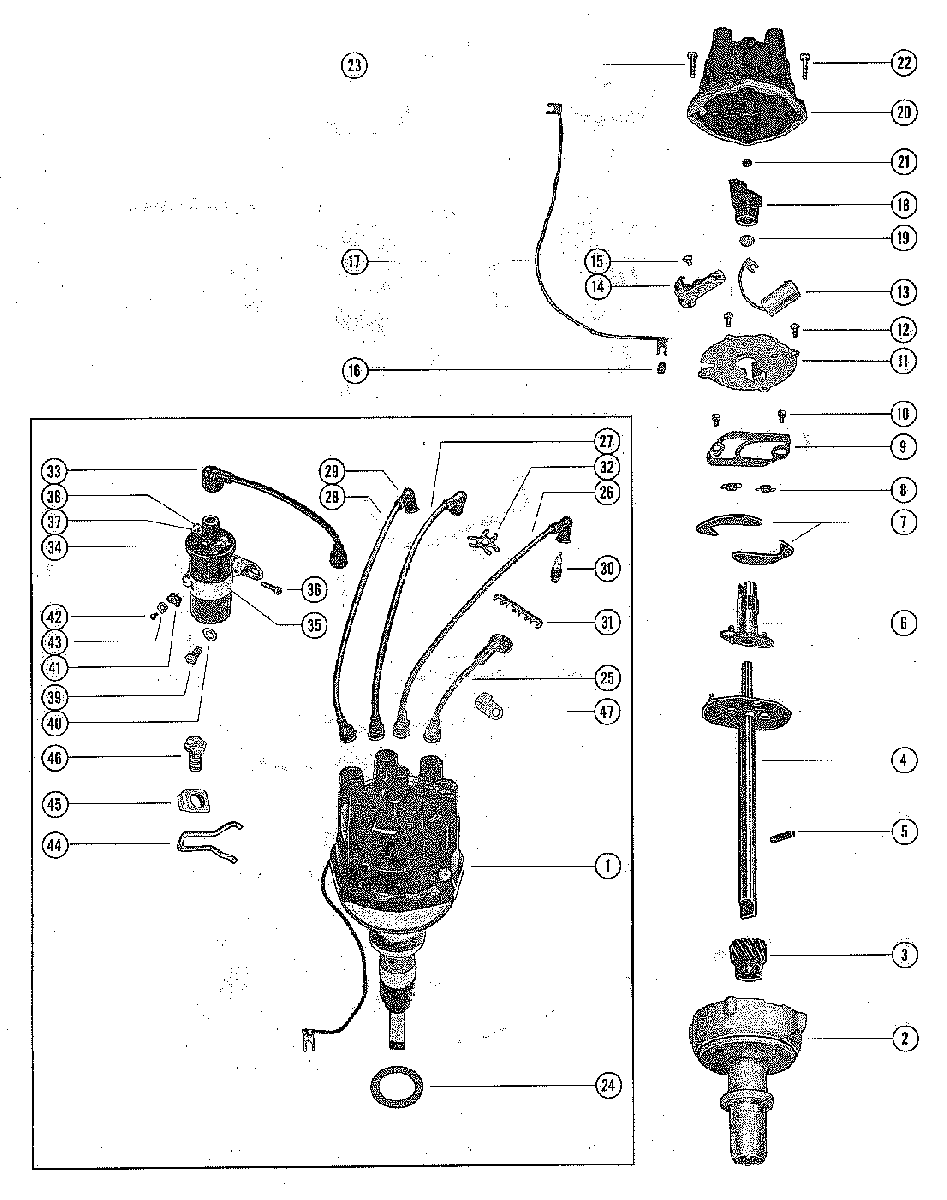

DISTRUBUTOR ASSEMBLY AND COIL для Mercruiser - 150 GM 230 I/L6 1964-1966 1666495 THRU 2048046

  • №
    Артикул
    Название
  • 1
    48020 DISTRIBUTOR ASSEMBLY, COMPLETE
    DISTRIBUTOR ASSEMBLY, COMPLETE
  • 2
    33668 HOUSING, PRIMARY - DISTRIBUTOR
    HOUSING, PRIMARY - DISTRIBUTOR
  • 3
    43-33664 GEAR, DRIVE - MAIN SHAFT
    GEAR, DRIVE - MAIN SHAFT
  • 4
    33766 MAIN SHAFT AND WEIGHT PLATE
    MAIN SHAFT AND WEIGHT PLATE
  • 5
    17-33649 PIN, DRIVE GEAR TO MAIN SHAFT
    PIN, DRIVE GEAR TO MAIN SHAFT
  • 6
    33767 CAM, BREAKER - ADVANCE
    CAM, BREAKER - ADVANCE
  • -
    33653 FELT, BREAKER CAM LUBRICATOR
    FELT, BREAKER CAM LUBRICATOR
  • -
    33670 RETAINER, BREAKER CAM LUBRICATOR FELT
    RETAINER, BREAKER CAM LUBRICATOR FELT
  • 7
    33768 WEIGHT, BREAKER CAM ADVANCE
    WEIGHT, BREAKER CAM ADVANCE
  • 8
    24-33769 SPRING, BREAKER CAM ADVANCE WEIGHT
    SPRING, BREAKER CAM ADVANCE WEIGHT
  • 9
    33655 PLATE, WEIGHT HOLD DOWN
    PLATE, WEIGHT HOLD DOWN
  • 10
    10-33722 SCREW, WEIGHT HOLD DOWN PLATE TO WEIGHT PLATE
    SCREW, WEIGHT HOLD DOWN PLATE TO WEIGHT PLATE
  • 11
    33665 PLATE, MOUNTING - BREAKER ASSEMBLY AND CONDENSER
    PLATE, MOUNTING - BREAKER ASSEMBLY AND CONDENSER
  • 12
    10-20650 SCREW, MOUNTING PLATE TO PRIMARY HOUSING
    SCREW, MOUNTING PLATE TO PRIMARY HOUSING
  • 13
    8M6001218 CONDENSER
    CONDENSER
  • 14
    34235T BREAKER ASSEMBLY, DISTRIBUTOR
    BREAKER ASSEMBLY, DISTRIBUTOR
  • 15
    10-33650 SCREW, BREAKER ASSEMBLY TO MOUNTING PLATE
    SCREW, BREAKER ASSEMBLY TO MOUNTING PLATE
  • 16
    25-33666 GROMMET, MOUNTING PLATE - PRIMARY WIRE
    GROMMET, MOUNTING PLATE - PRIMARY WIRE
  • 17
    33658 LEAD, PRIMARY
    LEAD, PRIMARY
  • 18
    8M6001251 ROTOR, DISTRIBUTOR
    ROTOR, DISTRIBUTOR
  • 19
    12-36275 WASHER, ROTOR
    WASHER, ROTOR
  • 20
    33765T CAP, DISTRIBUTOR
    CAP, DISTRIBUTOR
  • 21
    33654 BUTTON, CARBON - DISTRIBUTOR CAP
    BUTTON, CARBON - DISTRIBUTOR CAP
  • 22
    10-33660 SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (8-32)
    SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (8-32)
  • 23
    10-33663 SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (10-32)
    SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (10-32)
  • 24
    27-344863 GASKET, DISTRIBUTOR
    GASKET, DISTRIBUTOR
  • 25
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (6 1/4")
    LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (6 1/4")
  • 26
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (14 1/4")
    LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (14 1/4")
  • 27
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (20 3/4")
    LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (20 3/4")
  • 28
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (22")
    LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (22")
  • 29
    85-63709A1 PROTECTOR, HIGH TENSION LEAD
    PROTECTOR, HIGH TENSION LEAD
  • --
    85-94589 SLEEVE, TERMINAL END COVER
    SLEEVE, TERMINAL END COVER
  • 30
    33-8134711 SPARK PLUG (AC#C-44N)
    SPARK PLUG (AC#C-44N)
  • 31
    32784 RETAINER, HIGH TENSION LEADS
    RETAINER, HIGH TENSION LEADS
  • 32
    32783 RETAINER, HIGH TENSION LEADS
    RETAINER, HIGH TENSION LEADS
  • 33
    84-815297A44 WIRE ASSEMBLY, DISTRIBUTOR TO COIL (8 1/4")
    WIRE ASSEMBLY, DISTRIBUTOR TO COIL (8 1/4")
  • 34
    45129A1 COIL ASSEMBLY, IGNITION
    COIL ASSEMBLY, IGNITION
  • 35
    33321 BRACKET, IGNITION COIL MOUNTING
    BRACKET, IGNITION COIL MOUNTING
  • 36
    10-33311 SCREW, MOUNTING BRACKET TO IGNITION COIL
    SCREW, MOUNTING BRACKET TO IGNITION COIL
  • 37
    13-26996 CLAMP, LOCK - IGNITION COIL TERMINAL
    CLAMP, LOCK - IGNITION COIL TERMINAL
  • 38
    11-68219 NUT, IGNITION COIL TERMINAL
    NUT, IGNITION COIL TERMINAL
  • 39
    10-98261 SCREW, IGNITION COIL TO CYLINDER BLOCK
    SCREW, IGNITION COIL TO CYLINDER BLOCK
  • 40
    12-20553 WASHER, IGNITION COIL SCREW
    WASHER, IGNITION COIL SCREW
  • 41
    54-22627 CLIP, WIRING HARNESS TO COIL BRACKET
    USE WITH DUAL CARBURETOR INSTALLATION ONLY
    CLIP, WIRING HARNESS TO COIL BRACKET
    USE WITH DUAL CARBURETOR INSTALLATION ONLY
  • 42
    10-26668 SCREW, WIRING HARNESS CLIP TO COIL BRACKET
    USE WITH DUAL CARBURETOR INSTALLATION ONLY
    SCREW, WIRING HARNESS CLIP TO COIL BRACKET
    USE WITH DUAL CARBURETOR INSTALLATION ONLY
  • 43
    8M0084613 "D" WASHER, WIRING HARNESS CLIP SCREW
    USE WITH DUAL CARBURETOR INSTALLATION ONLY
    "D" WASHER, WIRING HARNESS CLIP SCREW
    USE WITH DUAL CARBURETOR INSTALLATION ONLY
  • 44
    72624 CLAMP UNIT, DISTRIBUTOR
    CLAMP UNIT, DISTRIBUTOR
  • 45
    34549 RETAINER, DISTRIBUTOR CLAMP UNIT
    RETAINER, DISTRIBUTOR CLAMP UNIT
  • 46
    10-11976 SCREW, DISTRIBUTOR TO CYLINDER BLOCK
    SCREW, DISTRIBUTOR TO CYLINDER BLOCK
  • 47
    54-33361 CLAMP, HIGH TENSION LEADS
    CLAMP, HIGH TENSION LEADS
