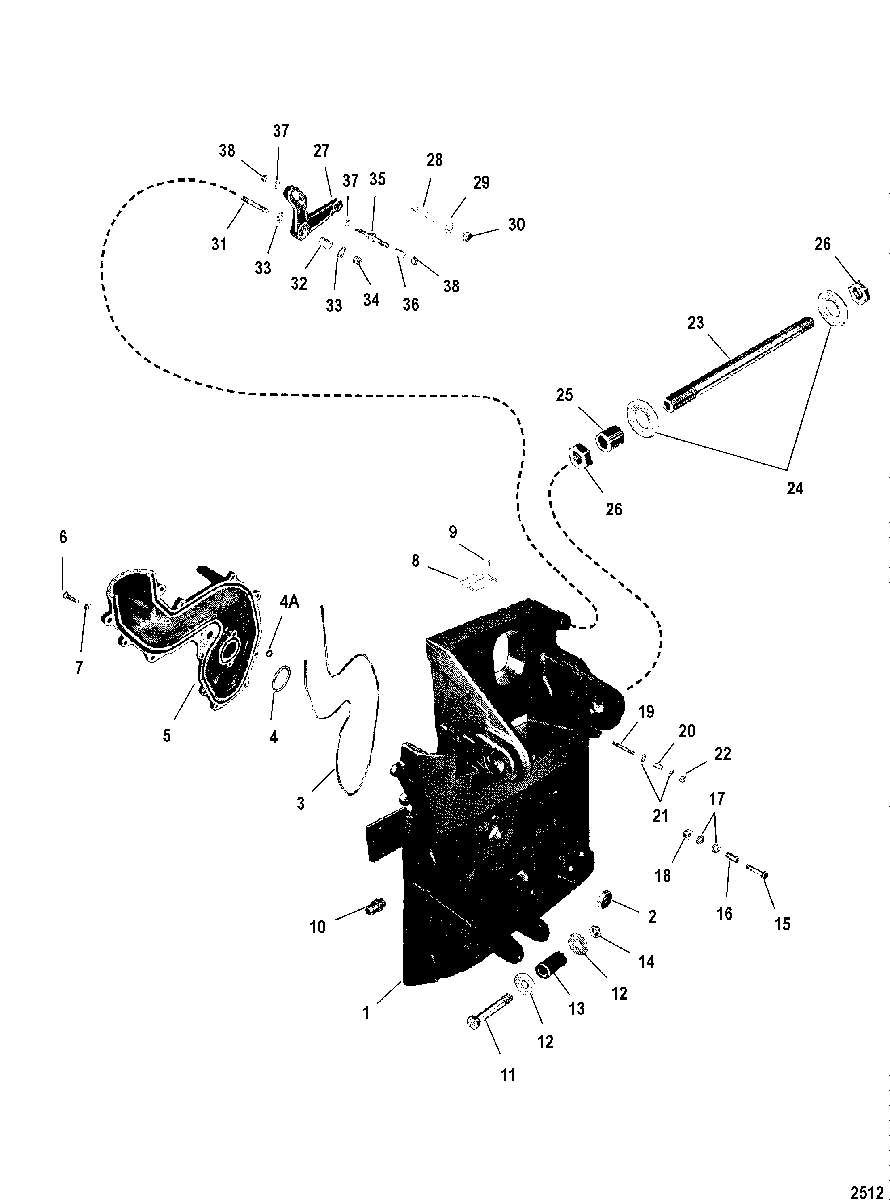

TRANSOM PLATE ASSEMBLY для Mercruiser - 90 (Sterndrive) 1970-1972 2898020 THRU 3225967

  • №
    Артикул
    Название
  • 1
    55883A2 TRANSOM PLATE ASSEMBLY
    TRANSOM PLATE ASSEMBLY
  • 2
    26-46970 OIL SEAL, Transom plate - Water Tube
    OIL SEAL, Transom plate - Water Tube
  • 3
    38371 SEAL, Exhaust - Transom plate
    SEAL, Exhaust - Transom plate
  • 4
    25-31144 ORING - Exhaust cover
    ORING - Exhaust cover
  • 4A
    26-455771 SEAL - Quad ring
    (Serial # 3225968 and up)
    SEAL - Quad ring
    (Serial # 3225968 and up)
  • 5
    55884 COVER, Exhaust- Transom plate
    COVER, Exhaust- Transom plate
  • 6
    10-38870 SCREW, Exhaust cover to transom plate (7/8")
    SCREW, Exhaust cover to transom plate (7/8")
  • 7
    11-30506 Nut, Exhaust cover screw
    Nut, Exhaust cover screw
  • 8
    38-38234 NAME PLATE, Transom plate
    NAME PLATE, Transom plate
  • 9
    10-22290 SCREW, Drive - Name plate to transom plate
    SCREW, Drive - Name plate to transom plate
  • 10
    22-58355 COUPLING, Transom plate - Water inlet hose
    COUPLING, Transom plate - Water inlet hose
  • 11
    10-38245 SCREW, Flywheel hosuing to transom plate (3 3/4")
    SCREW, Flywheel hosuing to transom plate (3 3/4")
  • 12
    12-38246 WASHER, Fiber - Flywheel housing screw
    WASHER, Fiber - Flywheel housing screw
  • 13
    23-38247 SLEEVE, Flywheel housing screw
    SLEEVE, Flywheel housing screw
  • 14
    11-38248 NUT, Flywheel housing screw
    NUT, Flywheel housing screw
  • 15
    10-22659 SCREW, Sender housing to transom plate (1 5/8")
    SCREW, Sender housing to transom plate (1 5/8")
  • 16
    23-31866 SPACER, Sender housing screw
    SPACER, Sender housing screw
  • 17
    12-39143 WASHER, Sender housing screw
    WASHER, Sender housing screw
  • 18
    11-8267089 NUT, Sender housing screw
    NUT, Sender housing screw
  • 19
    16-20353 STUD, Shift cable to transom plate (1 3/4")
    STUD, Shift cable to transom plate (1 3/4")
  • 20
    23-31866 SPACER, Shift cable stud
    SPACER, Shift cable stud
  • 21
    12-39143 WASHER, Shift cable stud
    WASHER, Shift cable stud
  • 22
    11-8267089 NUT, Shift cable stud
    NUT, Shift cable stud
  • 23
    32-38186 TUBE, Steering cable guide
    TUBE, Steering cable guide
  • 24
    12-38239 WASHER, Fiber - Steering cable guide tube
    WASHER, Fiber - Steering cable guide tube
  • 25
    23-38684 SLEEVE, Steering cable tube - transom plate
    SLEEVE, Steering cable tube - transom plate
  • 26
    11-8M0041651 NUT, Steering guide cable tube
    NUT, Steering guide cable tube
  • 27
    49704A1 LEVER ASSEMBLY, Shift cable - Transom plate
    LEVER ASSEMBLY, Shift cable - Transom plate
  • 28
    16-66021 STUD, Shift cable to lever (1 3/8")
    STUD, Shift cable to lever (1 3/8")
  • 29
    12-39143 WASHER, Shift lever stud
    WASHER, Shift lever stud
  • 30
    11-8267089 NUT, Shift lever stud
    NUT, Shift lever stud
  • 31
    16-32698 STUD, Shift lever cable to transom plate
    STUD, Shift lever cable to transom plate
  • 32
    23-31758 SPACER, Shift cable lever stud
    SPACER, Shift cable lever stud
  • 33
    12-26825 WASHER, Shift cable lever stud
    WASHER, Shift cable lever stud
  • 34
    11-82670911 NUT, Shift cable lever stud
    NUT, Shift cable lever stud
  • 35
    16-34069 STUD, Sender housing to shift cable lever
    STUD, Sender housing to shift cable lever
  • 36
    23-31866 SPACER, Sender housing stud
    SPACER, Sender housing stud
  • 37
    12-39143 WASHER, Sender housing stud
    WASHER, Sender housing stud
  • 38
    11-8267089 NUT, Sender housing stud
    NUT, Sender housing stud
