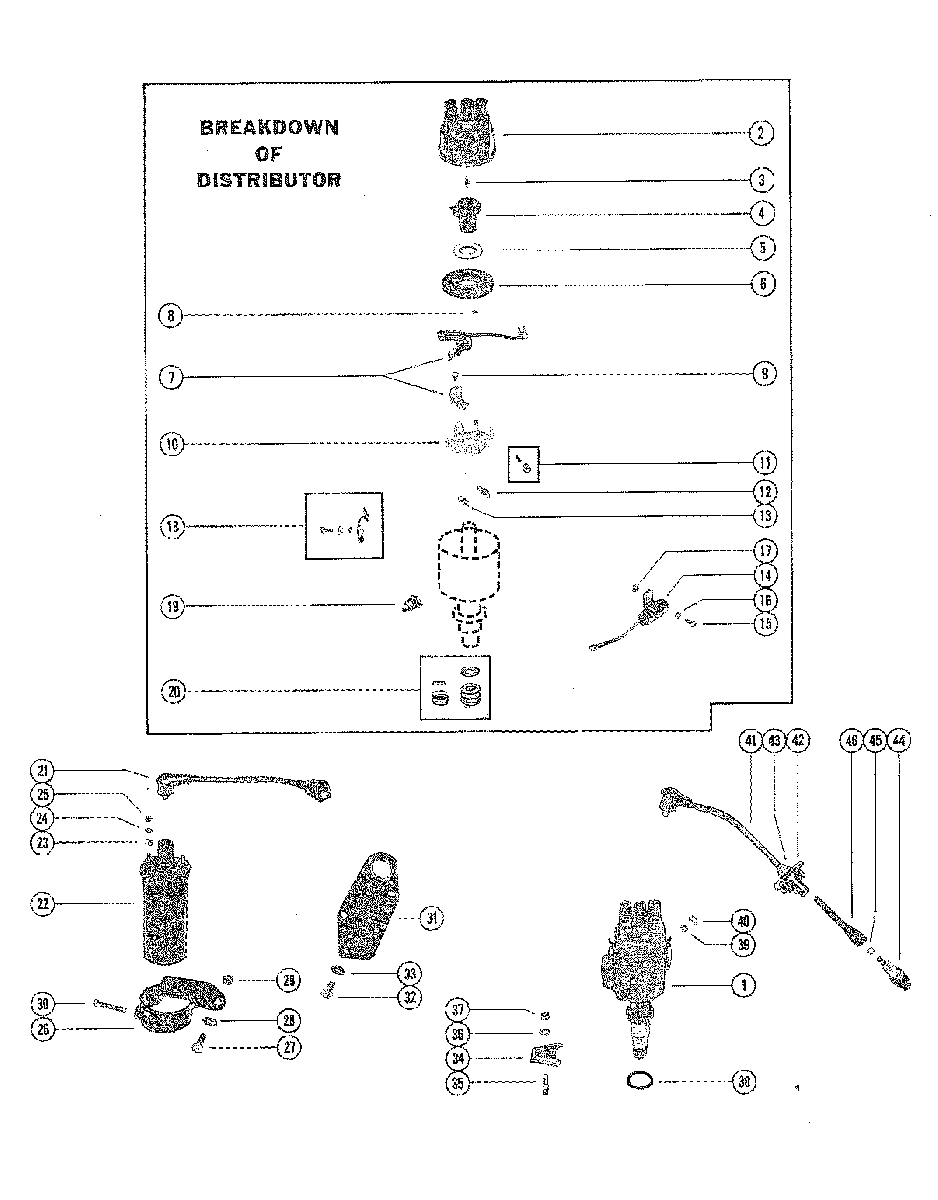

DISTRIBUTOR ASSEMBLY AND COIL для Mercruiser - 90 (Sterndrive) 1970-1972 2898020 THRU 3225967

  • №
    Артикул
    Название
  • 1
    58577 DISTRIBUTOR ASSEMBLY, COMPLETE
    DISTRIBUTOR ASSEMBLY, COMPLETE
  • 2
    46630 CAP ASSEMBLY,DISTRIBUTOR
    CAP ASSEMBLY,DISTRIBUTOR
  • 3
    46631 BALL AND SPRING ASSEMBLY, DISTRIBUTOR CAP
    BALL AND SPRING ASSEMBLY, DISTRIBUTOR CAP
  • 4
    46632 ROTOR, DISTRIBUTOR
    ROTOR, DISTRIBUTOR
  • 5
    12-46967 WASHER, FELT - DISTRIBUTOR ROTOR
    WASHER, FELT - DISTRIBUTOR ROTOR
  • 6
    46969 SHIELD, BREAKER ASSEMBLY
    SHIELD, BREAKER ASSEMBLY
  • 7
    46635 BREAKER ASSEMBLY, DISTRIBUTOR
    BREAKER ASSEMBLY, DISTRIBUTOR
  • 8
    18-46633 PIN (HAIR), RETAINING - BREAKER ASSEMBLY
    PIN (HAIR), RETAINING - BREAKER ASSEMBLY
  • 9
    10-46636 SCREW, BREAKER ASSEMBLY TO DISTRIBUTOR
    SCREW, BREAKER ASSEMBLY TO DISTRIBUTOR
  • 10
    58584 PLATE, MOUNTING - BREAKER ASSEMBLY
    PLATE, MOUNTING - BREAKER ASSEMBLY
  • 11
    58583 WIPER KIT, DISTRIBUTOR ROTOR
    WIPER KIT, DISTRIBUTOR ROTOR
  • 12
    24-58580 SPRING, CAM BREAKER ADVANCE WEIGHT (LIGHT COIL)
    SPRING, CAM BREAKER ADVANCE WEIGHT (LIGHT COIL)
  • 13
    24-58580 SPRING, CAM BREAKER ADVANCE WEIGHT (HEAVY COIL)
    SPRING, CAM BREAKER ADVANCE WEIGHT (HEAVY COIL)
  • 14
    46626 CONDENSER
    CONDENSER
  • 15
    10-46629 SCREW, CONDENSER TO DISTRIBUTOR
    SCREW, CONDENSER TO DISTRIBUTOR
  • 16
    13-26996 LOCKWASHER, CONDENSER SCREW
    LOCKWASHER, CONDENSER SCREW
  • 17
    13-58582 LOCKWASHER, CONDENSER SCREW (STAR)
    LOCKWASHER, CONDENSER SCREW (STAR)
  • 18
    46625 RETAINER KIT, DISTRIBUTOR CAP
    RETAINER KIT, DISTRIBUTOR CAP
  • 19
    10-46622 SCREW, PRIMARY TERMINAL
    SCREW, PRIMARY TERMINAL
  • 20
    58579 DRIVE KIT, DISTRIBUTOR
    DRIVE KIT, DISTRIBUTOR
  • 21
    57017 LEAD ASSEMBLY, COIL TO DISTRIBUTOR (8 1/2")
    LEAD ASSEMBLY, COIL TO DISTRIBUTOR (8 1/2")
  • 22
    38547 COIL ASSEMBLY, IGNITION
    COIL ASSEMBLY, IGNITION
  • 23
    12-45075 WASHER, SQUARE - COIL TERMINAL
    WASHER, SQUARE - COIL TERMINAL
  • 24
    13-26996 LOCKWASHER, COIL TERMINAL
    LOCKWASHER, COIL TERMINAL
  • 25
    11-68219 NUT, COIL TERMINAL
    NUT, COIL TERMINAL
  • 26
    33321 BRACKET, COIL
    BRACKET, COIL
  • 27
    10-98261 SCREW, COIL BRACKET TO MOUNTING BRACKET (3/4")
    SCREW, COIL BRACKET TO MOUNTING BRACKET (3/4")
  • 28
    12-20553 WASHER, COIL BRACKET SCREW
    WASHER, COIL BRACKET SCREW
  • 29
    11-52412 NUT, COIL BRACKET SCREW
    NUT, COIL BRACKET SCREW
  • 30
    10-33311 SCREW, COIL ATTACHING BRACKET
    SCREW, COIL ATTACHING BRACKET
  • 31
    56207 BRACKET, COIL MOUNTING - LIFTING EYE
    BRACKET, COIL MOUNTING - LIFTING EYE
  • 32
    10-56405 SCREW, MOUNTING BRACKET TO CYLINDER BLOCK
    SCREW, MOUNTING BRACKET TO CYLINDER BLOCK
  • 32
    10-45628 SCREW, MOUNTING BRACKET TO CYLINDER BLOCK
    SCREW, MOUNTING BRACKET TO CYLINDER BLOCK
  • 33
    13-26992 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 33
    13-39107 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 34
    37036 CLAMP, DISTRIBUTOR TO CYLINDER HEAD
    CLAMP, DISTRIBUTOR TO CYLINDER HEAD
  • 35
    16-46566 STUD, DISTRIBUTOR CLAMP TO CYLINDER HEAD
    STUD, DISTRIBUTOR CLAMP TO CYLINDER HEAD
  • 36
    12-37175 WASHER, DISTRIBUTOR CLAMP STUD
    WASHER, DISTRIBUTOR CLAMP STUD
  • 37
    11-46571 NUT, DISTRIBUTOR CLAMP STUD
    NUT, DISTRIBUTOR CLAMP STUD
  • 38
    27-37058 GASKET, DISTRIBUTOR
    GASKET, DISTRIBUTOR
  • 39
    13-26995 LOCKWASHER, GROUND WIRE NUT
    LOCKWASHER, GROUND WIRE NUT
  • 40
    11-38824 NUT, GROUND WIRE TO DISTRIBUTOR
    NUT, GROUND WIRE TO DISTRIBUTOR
  • 41
    570189 LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (9")
    LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (9")
  • 41
    5701812 LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (12")
    LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (12")
  • 42
    58594 PROTECTOR, HIGH TENSION LEAD
    PROTECTOR, HIGH TENSION LEAD
  • 43
    58593 SEAL, HIGH TENSION LEAD
    SEAL, HIGH TENSION LEAD
  • 44
    33-57955 SPARK PLUG (ACR-42XL)
    SPARK PLUG (ACR-42XL)
  • 45
    13-46628 LOCKWASHER, SPARK PLUG TERMINAL
    LOCKWASHER, SPARK PLUG TERMINAL
  • 46
    58572 CONNECTOR, SPARK PLUG TO HIGH TENSION LEAD
    CONNECTOR, SPARK PLUG TO HIGH TENSION LEAD
