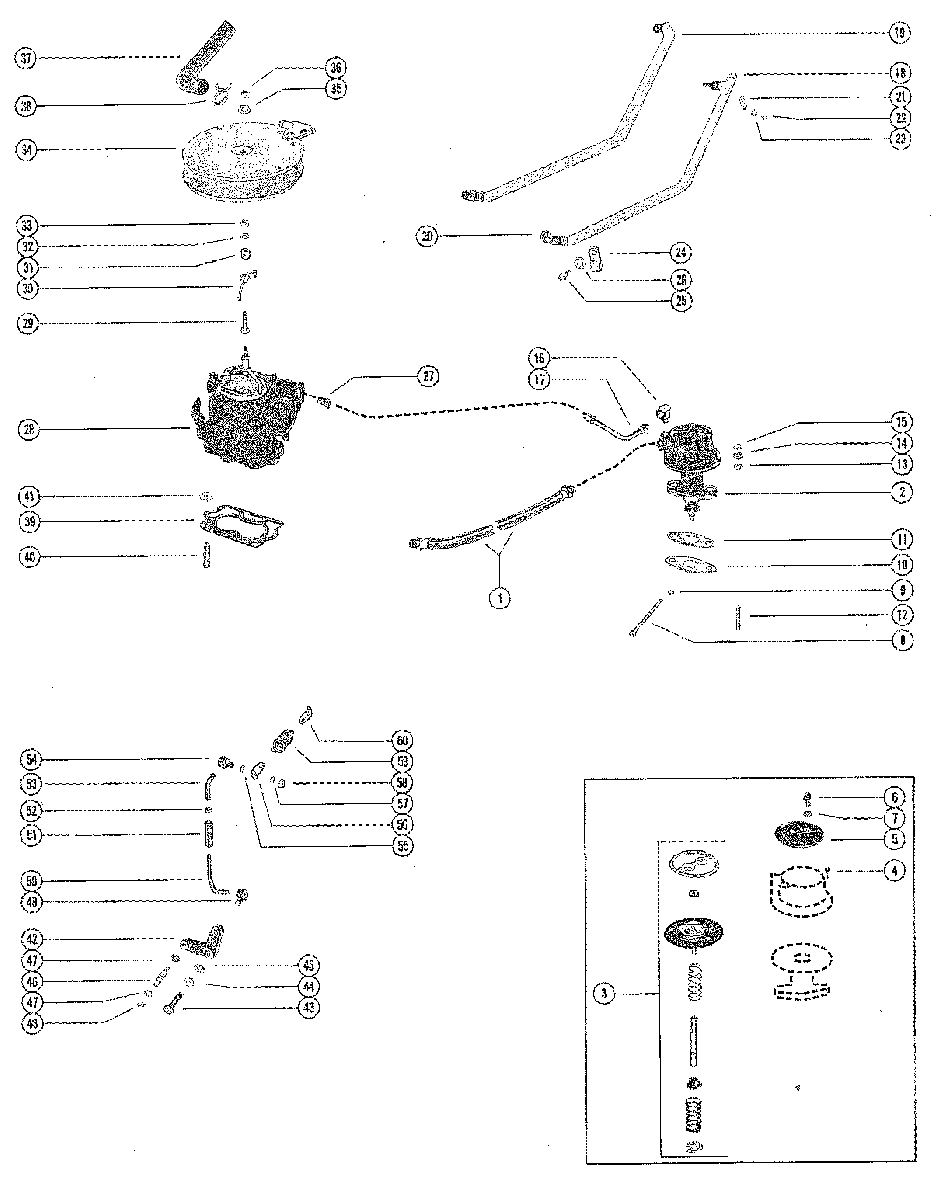

FUEL PUMP, FUEL LINES AND CARBURETOR для Mercruiser - 90 (Sterndrive) 1970-1972 2898020 THRU 3225967

  • №
    Артикул
    Название
  • 1
    32-57020 FUEL LINE, INLET - FUEL TANK TO FUEL PUMP
    FUEL LINE, INLET - FUEL TANK TO FUEL PUMP
  • 2
    58514 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 3
    58542 RENAIR KIT, FUEL PUMP
    RENAIR KIT, FUEL PUMP
  • 4
    10-46629 SCREW, FUEL PUMP CLAMPING
    SCREW, FUEL PUMP CLAMPING
  • 5
    58585 CAP, FUEL PUMP FILTER
    CAP, FUEL PUMP FILTER
  • 6
    10-58567 SCREW, FILTER CAP ATTACHING
    SCREW, FILTER CAP ATTACHING
  • 7
    12-46643 WASHER, FILTER CAP SCREW
    WASHER, FILTER CAP SCREW
  • 8
    58592 ROD, FUEL PUMP ACTUATING
    ROD, FUEL PUMP ACTUATING
  • 9
    53-58591 SNAP RING, PUMP ROD
    SNAP RING, PUMP ROD
  • 10
    58590 SPACER, FUEL PUMP
    SPACER, FUEL PUMP
  • 11
    27-58589 GASKET, FUEL PUMP TO CYLINDER HEAD
    GASKET, FUEL PUMP TO CYLINDER HEAD
  • 12
    16-46522 STUD, FUEL PUMP TO CYLINDER HEAED
    STUD, FUEL PUMP TO CYLINDER HEAED
  • 13
    12-58588 WASHER, FUEL PUMP STUD
    WASHER, FUEL PUMP STUD
  • 14
    12-58587 WASHER, FUEL PUMP STUD
    WASHER, FUEL PUMP STUD
  • 15
    11-58586 NUT, FUEL PUMP STUD
    NUT, FUEL PUMP STUD
  • 16
    22-38214 ELBOW, FUEL PUMP OUTLET
    ELBOW, FUEL PUMP OUTLET
  • 17
    32-56729 FUEL LINE, FUEL PUMP TO CARBURETOR
    FUEL LINE, FUEL PUMP TO CARBURETOR
  • 18
    32-56219 PIPE, CHOKE - CARBURETOR TO INTAKE MANIFOLD
    PIPE, CHOKE - CARBURETOR TO INTAKE MANIFOLD
  • 19
    56511 COVER, CHOKE PIPE
    COVER, CHOKE PIPE
  • 20
    11-21310 NUT, COMPRESSION - CHOKE PIPE
    NUT, COMPRESSION - CHOKE PIPE
  • 21
    54-56510 CLIP, CHOKE PIPE TO EXHAUST MANIFOLD
    CLIP, CHOKE PIPE TO EXHAUST MANIFOLD
  • 22
    10-49309 SCREW, CHOKE PIPE CLIP TO EXHAUST MANIFOLD (3/8")
    SCREW, CHOKE PIPE CLIP TO EXHAUST MANIFOLD (3/8")
  • 23
    13-26996 LOCKWASHER, CHOKE PIPE CLIP SCREW
    LOCKWASHER, CHOKE PIPE CLIP SCREW
  • 24
    54-56406 CLIP, CHOKE PIPE TO INTAKE MANIFOLD
    CLIP, CHOKE PIPE TO INTAKE MANIFOLD
  • 25
    10-98253 SCREW, CHOKE PIPE CLIP TO INTAKE MANIFOLD
    SCREW, CHOKE PIPE CLIP TO INTAKE MANIFOLD
  • 26
    13-26992 LOCKWASHER, CHOKE PIPE CLIP SCREW
    LOCKWASHER, CHOKE PIPE CLIP SCREW
  • 27
    22-89029 FITTING, CARBURETOR FUEL INLET
    FITTING, CARBURETOR FUEL INLET
  • 28
    1347-818619R02 CARBURETOR ASSEMBLY
    SEE E4 FOR BREAKDOWN SERIAL 00000000-03225967
    CARBURETOR ASSEMBLY
    SEE E4 FOR BREAKDOWN SERIAL 00000000-03225967
  • 28
    1347-818619R02 CARBURETOR ASSEMBLY
    SEE E4 FOR BREAKDOWN SERIAL 03225968-09999999
    CARBURETOR ASSEMBLY
    SEE E4 FOR BREAKDOWN SERIAL 03225968-09999999
  • 29
    10-24644 SCREW, FLAME ARRESTOR TO CARBURETOR (1 3/8")
    SERIAL 00000000-03225967
    SCREW, FLAME ARRESTOR TO CARBURETOR (1 3/8")
    SERIAL 00000000-03225967
  • 29
    10-20784 SCREW, FLAME ARRESTOR TO CARBURETOR (1 1/2")
    SERIAL 03225968-09999999
    SCREW, FLAME ARRESTOR TO CARBURETOR (1 1/2")
    SERIAL 03225968-09999999
  • 30
    52734 BALL, MOUNTING - FLAME ARRESTOR
    BALL, MOUNTING - FLAME ARRESTOR
  • 31
    23-35555 SPACER, FLAME ARRESTOR SCREW
    SERIAL 00000000-03225967
    SPACER, FLAME ARRESTOR SCREW
    SERIAL 00000000-03225967
  • 31
    23-61343 SPACER, FLAME ARRESTOR SCREW
    SERIAL 03225968-09999999
    SPACER, FLAME ARRESTOR SCREW
    SERIAL 03225968-09999999
  • 32
    12-20533 WASHER, FLAME ARRESTOR SCREW (BOTTOM)
    WASHER, FLAME ARRESTOR SCREW (BOTTOM)
  • 33
    11-8267139 NUT, JAM - FLAME ARRESTOR SCREW
    NUT, JAM - FLAME ARRESTOR SCREW
  • 34
    56732 FLAME ARRESTOR, CARBURETOR
    SERIAL 00000000-03225967
    FLAME ARRESTOR, CARBURETOR
    SERIAL 00000000-03225967
  • 34
    61314 FLAME ARRESTOR, CARBURETOR
    SERIAL 03225968-09999999
    FLAME ARRESTOR, CARBURETOR
    SERIAL 03225968-09999999
  • 35
    12-22937 WASHER, FLAME ARRESTOR SCREW (TOP)
    WASHER, FLAME ARRESTOR SCREW (TOP)
  • 36
    11-826709109 NUT, FLAME ARRESTOR SCREW
    NUT, FLAME ARRESTOR SCREW
  • 37
    32-61108 HOSE, VENT - FLAME ARRESTOR TO TOP COVER
    SERIAL 00000000-03225967
    HOSE, VENT - FLAME ARRESTOR TO TOP COVER
    SERIAL 00000000-03225967
  • 37
    32-61108 HOSE, VENT - FLAME ARRESTOR TO TOP COVER
    SERIAL 03225968-09999999
    HOSE, VENT - FLAME ARRESTOR TO TOP COVER
    SERIAL 03225968-09999999
  • 38
    54-53101 CLAMP, VENT HOSE TO FLAME ARRESTOR AND TOP COVER
    CLAMP, VENT HOSE TO FLAME ARRESTOR AND TOP COVER
  • 39
    27-64692 GASKET, CARBURETOR TO INTAKE MANIFOLD
    GASKET, CARBURETOR TO INTAKE MANIFOLD
  • 40
    16-33111 STUD, CARBURETOR MOUNTING
    STUD, CARBURETOR MOUNTING
  • 41
    11-29250 NUT, CARBURETOR MOUNTING STUD
    NUT, CARBURETOR MOUNTING STUD
  • 42
    55942 LEVER, THROTTLE
    LEVER, THROTTLE
  • 43
    10-38507 SCREW, THROTTLE LEVER TO INTAKE MANIFOLD
    SCREW, THROTTLE LEVER TO INTAKE MANIFOLD
  • 44
    12-20553 WASHER, THROTTLE LEVER SCREW (1/16" THICK)
    WASHER, THROTTLE LEVER SCREW (1/16" THICK)
  • 45
    12-57792 WASHER, THROTTLE LEVER SCREW (1/8" THICK)
    WASHER, THROTTLE LEVER SCREW (1/8" THICK)
  • 46
    16-38525 STUD, THROTTLE CABLE ATTACHING
    STUD, THROTTLE CABLE ATTACHING
  • 47
    12-24664 WASHER, THROTTLE CABLE STUD
    WASHER, THROTTLE CABLE STUD
  • 48
    11-826709109 NUT, THROTTLE CABLE STUD
    NUT, THROTTLE CABLE STUD
  • 49
    27947 SWIVEL, LINK ROD TO THROTTLE LEVER
    SWIVEL, LINK ROD TO THROTTLE LEVER
  • 50
    35626 LINK ROD, THROTTLE LEVER SWIVEL TO ADJUSTING SLEEVE (LOWER)
    LINK ROD, THROTTLE LEVER SWIVEL TO ADJUSTING SLEEVE (LOWER)
  • 51
    33393 SLEEVE, ADJUSTING - LINK ROD
    SLEEVE, ADJUSTING - LINK ROD
  • 52
    11-25168 NUT, JAM - ADJUSTING SLEEVE TO LOWER LINK ROD
    NUT, JAM - ADJUSTING SLEEVE TO LOWER LINK ROD
  • 53
    33394 LINK ROD, CARBURETOR SWIVEL TO ADJUSTING SLEEVE (UPPER)
    LINK ROD, CARBURETOR SWIVEL TO ADJUSTING SLEEVE (UPPER)
  • 54
    38983 SWIVEL, LINK ROD TO CARBURETOR
    SWIVEL, LINK ROD TO CARBURETOR
  • 55
    12-30164 WASHER, LINK ROD SWIVEL
    WASHER, LINK ROD SWIVEL
  • 56
    53-78201 BRACKET, THROTTLE RETURN SPRING
    BRACKET, THROTTLE RETURN SPRING
  • 57
    12-35950 WASHER, LINK ROD SWIVEL
    WASHER, LINK ROD SWIVEL
  • 58
    11-20110 NUT, LINK ROD SWIVEL
    NUT, LINK ROD SWIVEL
  • 59
    24-57863 SPRING THROTTLE RETURN
    SPRING THROTTLE RETURN
  • 60
    58133 BRACKET, THROTTLE RETURN SPRING (CARBURETOR)
    BRACKET, THROTTLE RETURN SPRING (CARBURETOR)
