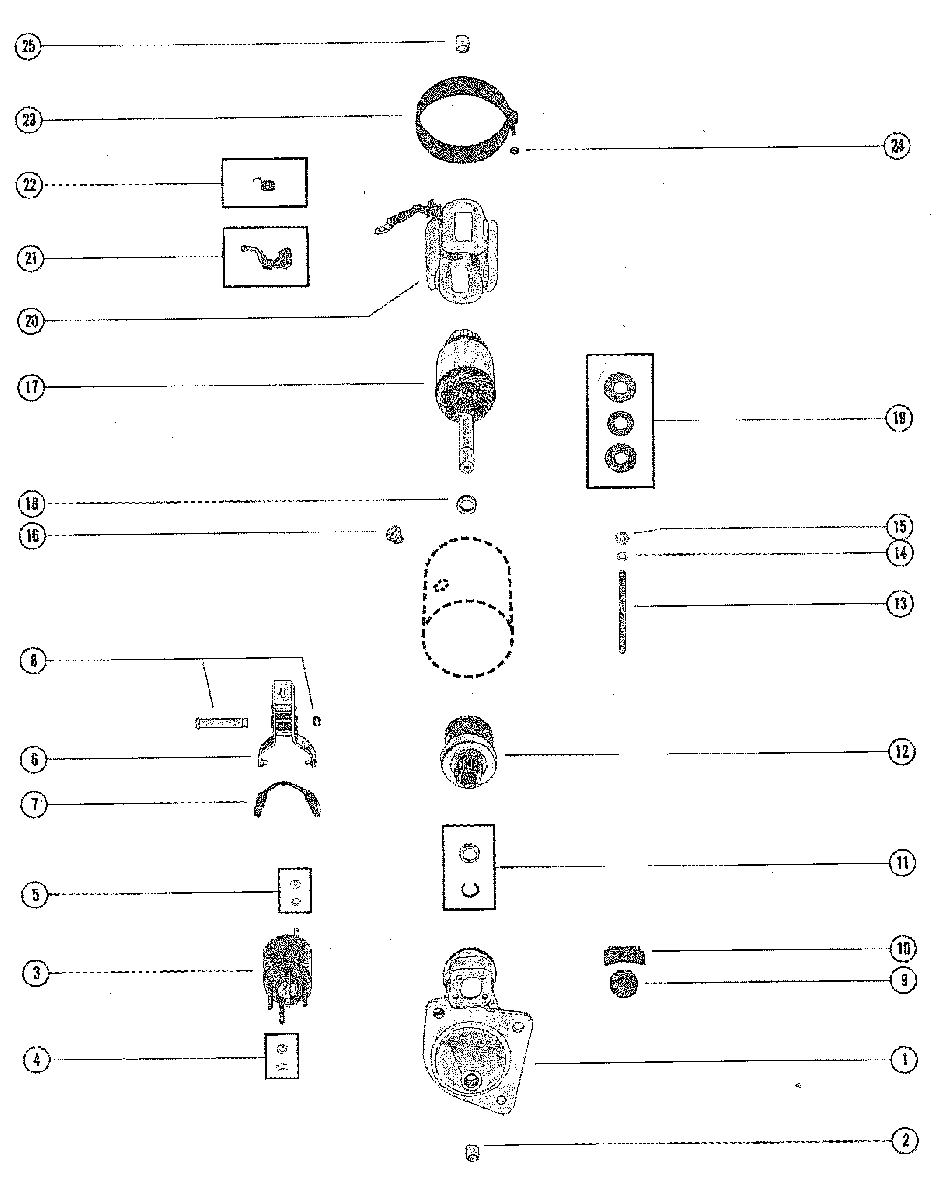

STARTER MOTOR ASSEMBLY для Mercruiser - 90 (Sterndrive) 1970-1972 2898020 THRU 3225967

  • №
    Артикул
    Название
  • -
    50-58059 STARTER MOTOR ASSEMBLY, COMPLETE
    STARTER MOTOR ASSEMBLY, COMPLETE
  • 1
    58067 HOUSING, STARTER
    HOUSING, STARTER
  • 2
    23-37154 BUSHING, STARTER HOUSING
    BUSHING, STARTER HOUSING
  • 3
    58060 STARTER SOLENOID, STARTER HOUSING
    STARTER SOLENOID, STARTER HOUSING
  • 4
    11-58063 NUT KIT, STARTER SOLENOID TO STARTER HOUSING
    NUT KIT, STARTER SOLENOID TO STARTER HOUSING
  • 5
    11-58071 NUT AND TERMINAL KIT, STARTER SOLENOID
    NUT AND TERMINAL KIT, STARTER SOLENOID
  • 6
    58061 ARM, STARTER SOLENOID
    ARM, STARTER SOLENOID
  • 7
    58064 INSERT, STARTER SOLENOID ARM
    INSERT, STARTER SOLENOID ARM
  • 8
    17-58062 PIN ASSEMBLY, SOLENOID ARM TO STARTER HOUSING
    PIN ASSEMBLY, SOLENOID ARM TO STARTER HOUSING
  • 9
    19-58066 PLUG, STARTER HOUSING
    PLUG, STARTER HOUSING
  • 10
    58065 BUMPER, SOLENOID TO STARTER HOUSING
    BUMPER, SOLENOID TO STARTER HOUSING
  • 11
    23-58068 BUSHING ASSEMBLY, CLUTCH DRIVE RETAINING
    BUSHING ASSEMBLY, CLUTCH DRIVE RETAINING
  • 12
    58069 DRIVE ASSEMBLY, CLUTCH
    DRIVE ASSEMBLY, CLUTCH
  • 13
    10-58077 BOLT, THRU - STARTER HOUSING
    BOLT, THRU - STARTER HOUSING
  • 14
    13-58073 LOCKWASHER,, THRU BOLT
    LOCKWASHER,, THRU BOLT
  • 15
    11-58074 NUT, STARTER HOUSING THRU BOLT
    NUT, STARTER HOUSING THRU BOLT
  • 16
    10-46653 SCREW, STARTER FIELD COIL
    SCREW, STARTER FIELD COIL
  • 17
    58075 ARMATURE
    ARMATURE
  • 18
    23-58070 BUSHING, ARMATURE SHAFT
    BUSHING, ARMATURE SHAFT
  • 19
    12-58072 WAHSER KIT, ARMATURE
    WAHSER KIT, ARMATURE
  • 20
    58075 FIELD COIL ASSEMBLY
    FIELD COIL ASSEMBLY
  • 21
    58076 BRUCH KIT, STARTER (POSITIVE AND NEGATIVE)
    BRUCH KIT, STARTER (POSITIVE AND NEGATIVE)
  • 22
    24-46662 SPRING KIT, STARTER BRUSH
    SPRING KIT, STARTER BRUSH
  • 23
    46658 BAND, STARTER MOTOR
    BAND, STARTER MOTOR
  • 24
    11-46659 NUT, STARTER MOTOR BAND SCREW
    NUT, STARTER MOTOR BAND SCREW
  • 25
    23-37154 BUCHING, END COVER
    BUCHING, END COVER
