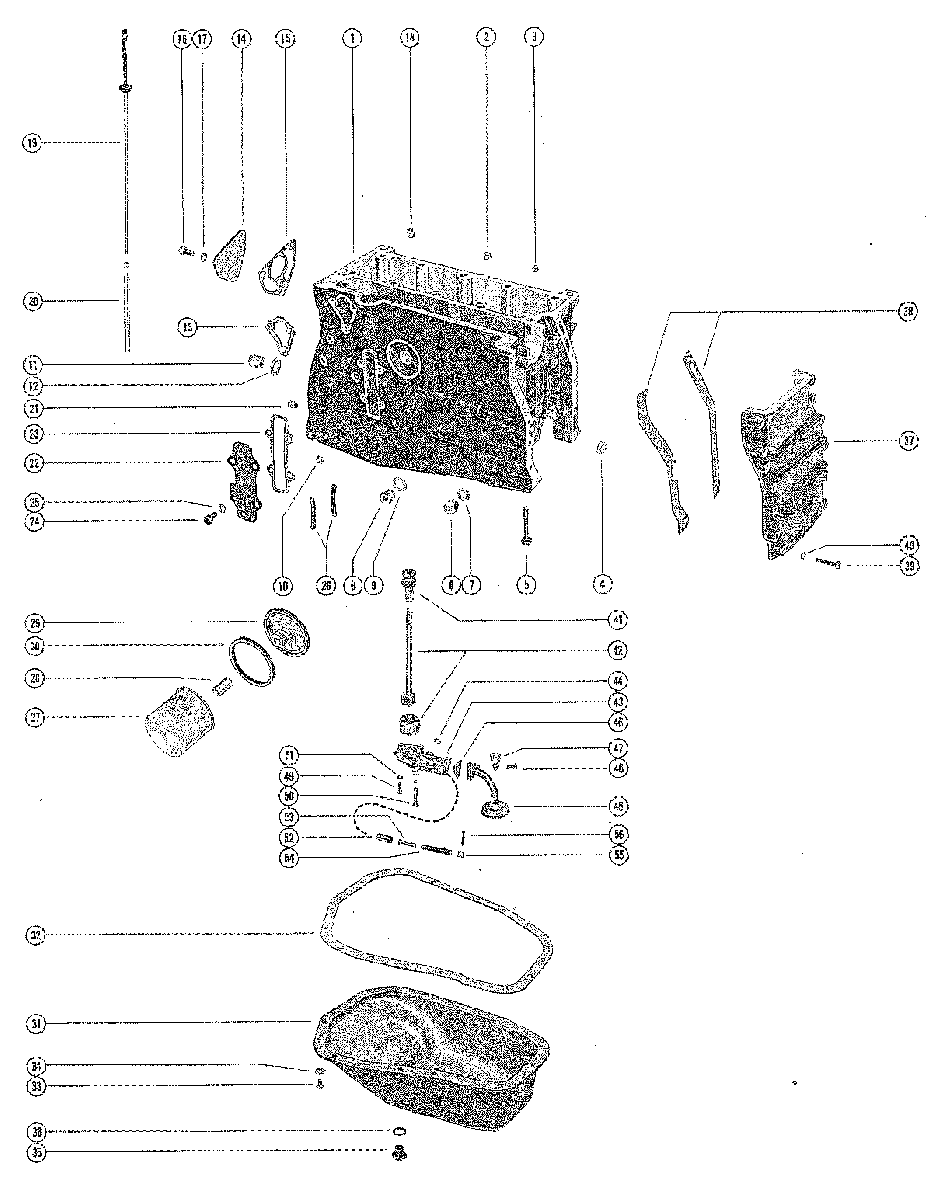

CYLINDER BLOCK, OIL PAN AND OIL PUMP MARINE 90 SHORT-BLOCK для Mercruiser - 90 (Sterndrive) 1970-1972 2898020 THRU 3225967

  • №
    Артикул
    Название
  • 1
    845-4346 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    19-46516 PLUG, EXPANSION - CYLINDER BLOCK (TOP)
    PLUG, EXPANSION - CYLINDER BLOCK (TOP)
  • 3
    19-46515 PLUG, EXPANSION - CYLINDER BLOCK (TOP)
    PLUG, EXPANSION - CYLINDER BLOCK (TOP)
  • 4
    19-46503 PLUG, EXPANSION - CYLINDER BLOCK (FRONT)
    PLUG, EXPANSION - CYLINDER BLOCK (FRONT)
  • 5
    10-46504 BOLT, MAIN BEARING CAP TO CYLINDER BLOCK (67.5MM)
    BOLT, MAIN BEARING CAP TO CYLINDER BLOCK (67.5MM)
  • 6
    10-46506 PLUG, CYLINDER BLOCK
    PLUG, CYLINDER BLOCK
  • 7
    12-46505 WASHER, CYLINDER BLOCK PLUG
    WASHER, CYLINDER BLOCK PLUG
  • 8
    19-58573 PLUG, CYLINDER BLOCK
    PLUG, CYLINDER BLOCK
  • 9
    12-46507 WASHER, CYLINDER BLOCK PLUG
    WASHER, CYLINDER BLOCK PLUG
  • 10
    19-46509 PLUG, EXPANSION - CYLINDER BLOCK (SIDE)
    PLUG, EXPANSION - CYLINDER BLOCK (SIDE)
  • 11
    19-58512 PLUG, CYLINDER BLOCK - REAR
    PLUG, CYLINDER BLOCK - REAR
  • 12
    12-46513 WASHER, CYLINDER BLOCK REAR PLUG
    WASHER, CYLINDER BLOCK REAR PLUG
  • 13
    27-58511 GASKET, WIRING HARNESS BRACKET TO CYLINDER BLOCK
    GASKET, WIRING HARNESS BRACKET TO CYLINDER BLOCK
  • 14
    46537 COVER, CAMSHAFT HOLE - CYLINDER BLCOK
    COVER, CAMSHAFT HOLE - CYLINDER BLCOK
  • 15
    27-46524 GASKET, CAMSHAFT HOLE COVER
    GASKET, CAMSHAFT HOLE COVER
  • 16
    10-58510 SCREW, CAMSHAFT HOLE COVER TO CYLINDER BLOCK (20MM)
    SCREW, CAMSHAFT HOLE COVER TO CYLINDER BLOCK (20MM)
  • 17
    13-37141 LOCKWASHER, CAMSHAFT HOLE COVER SCREW
    LOCKWASHER, CAMSHAFT HOLE COVER SCREW
  • 18
    23-37127 BUSHING, OIL PUMP SHAFT - CYLINDER BLOCK
    BUSHING, OIL PUMP SHAFT - CYLINDER BLOCK
  • 19
    56202 GAUGE, OIL LEVEL (DIP STICK)
    GAUGE, OIL LEVEL (DIP STICK)
  • 20
    32-58513 TUBE, OIL LEVEL GAUGE - CYLINDER BLOCK
    TUBE, OIL LEVEL GAUGE - CYLINDER BLOCK
  • 21
    23-46689 SPACER, ALIGNMENT - CYLINDER BLOCK TO FLYWHEEL HOUSING
    SPACER, ALIGNMENT - CYLINDER BLOCK TO FLYWHEEL HOUSING
  • 22
    46511 COVER, INSPECTION - CYLINDER BLOCK
    COVER, INSPECTION - CYLINDER BLOCK
  • 23
    27-46510 GASKET, INSPECTION COVER
    GASKET, INSPECTION COVER
  • 24
    10-58510 SCREW, INSPECTION COVER TO CYLINDER BLOCK (20MM)
    SCREW, INSPECTION COVER TO CYLINDER BLOCK (20MM)
  • 25
    13-37141 WASHER, INSPECTION COVER SCREW
    WASHER, INSPECTION COVER SCREW
  • 26
    23-46527A1 SPACER ASSEMBLY, MAIN BEARING CAP
    SPACER ASSEMBLY, MAIN BEARING CAP
  • 27
    58569 OIL FILTER
    OIL FILTER
  • 28
    37125 ADAPTOR, OIL FILTER TO CYLINDER BLOCK
    ADAPTOR, OIL FILTER TO CYLINDER BLOCK
  • 29
    58570 PLATE, OIL FILTER ADAPTOR
    PLATE, OIL FILTER ADAPTOR
  • 30
    25-58571 "O" RING, OIL FILTER ADAPTOR PLATE
    "O" RING, OIL FILTER ADAPTOR PLATE
  • 31
    46529 OIL PAN
    OIL PAN
  • 32
    27-46530 GASKET, OIL PAN
    GASKET, OIL PAN
  • 33
    10-58518 SCREW, OIL PAN TO CYLINDER BLOCK
    SCREW, OIL PAN TO CYLINDER BLOCK
  • 33
    10-58521 SCREW, OIL PAN TO CYLINDER BLOCK
    SCREW, OIL PAN TO CYLINDER BLOCK
  • 34
    12-46531 WASHER, OIL PAN SCREW
    WASHER, OIL PAN SCREW
  • 35
    22-46534 PLUG, DRIAN - OIL PAN
    PLUG, DRIAN - OIL PAN
  • 36
    27-37105 GASKET, OIL PAN DRAIN PLUG
    GASKET, OIL PAN DRAIN PLUG
  • 37
    58520 COVER, TIMING
    COVER, TIMING
  • 38
    27-46536 GASKET, TIMING COVER
    GASKET, TIMING COVER
  • 39
    10-58519 SCREW, TIMING COVER TO CYLINDER BLOCK
    SCREW, TIMING COVER TO CYLINDER BLOCK
  • 40
    12-46540 WASHER, TIMING COVER SCREW
    WASHER, TIMING COVER SCREW
  • 41
    58285 SHAFT, PINION - OIL PUMP SHAFT TO DISTRIBUTOR
    PART OF B-435-4352 CAMSHAFT ASSEMBLY
    SHAFT, PINION - OIL PUMP SHAFT TO DISTRIBUTOR
    PART OF B-435-4352 CAMSHAFT ASSEMBLY
  • 42
    47166 SHAFT, OIL PUMP BODY TO PINION SHAFT
    SHAFT, OIL PUMP BODY TO PINION SHAFT
  • 43
    58562 BODY, OIL PUMP
    BODY, OIL PUMP
  • 44
    22-58564 PLUG, OIL PUMP BODY
    PLUG, OIL PUMP BODY
  • 45
    58568 TUBE, PICK-UP
    TUBE, PICK-UP
  • 46
    27-58565 GASKET, PICK-UP TUBE
    GASKET, PICK-UP TUBE
  • 47
    58566 PLATE, RETAINER - PICK-UP TUBE
    PLATE, RETAINER - PICK-UP TUBE
  • 48
    10-58563 SCREW, PICK-UP TUBE TO OIL PUMP BODY
    SCREW, PICK-UP TUBE TO OIL PUMP BODY
  • 49
    10-58563 SCREW, OIL PUMP BODY TO CYLINDER BLOCK
    SCREW, OIL PUMP BODY TO CYLINDER BLOCK
  • 50
    10-46615 SCREW, OIL PUMP BODY TO CYLINDER BODY
    SCREW, OIL PUMP BODY TO CYLINDER BODY
  • 51
    46646 WASHER, OIL PUMP BODY SCREW
    WASHER, OIL PUMP BODY SCREW
  • 52
    23-46614 SLEEVE, OIL PREASURE RELEASE VALVE
    SLEEVE, OIL PREASURE RELEASE VALVE
  • 53
    17-46613 PIN, GUIDE - OIL PREASURE RELEASE VALVE
    PIN, GUIDE - OIL PREASURE RELEASE VALVE
  • 54
    24-46612 SPRING, TENSION - OIL PREASURE RELEASE VALVE
    SPRING, TENSION - OIL PREASURE RELEASE VALVE
  • 55
    46611 CAP, OIL PRESSURE RELEASE VALVE SPRING
    CAP, OIL PRESSURE RELEASE VALVE SPRING
  • 56
    18-46605 COTTER PIN, OIL PRESSURE RELEASE VALVE CAP
    COTTER PIN, OIL PRESSURE RELEASE VALVE CAP
