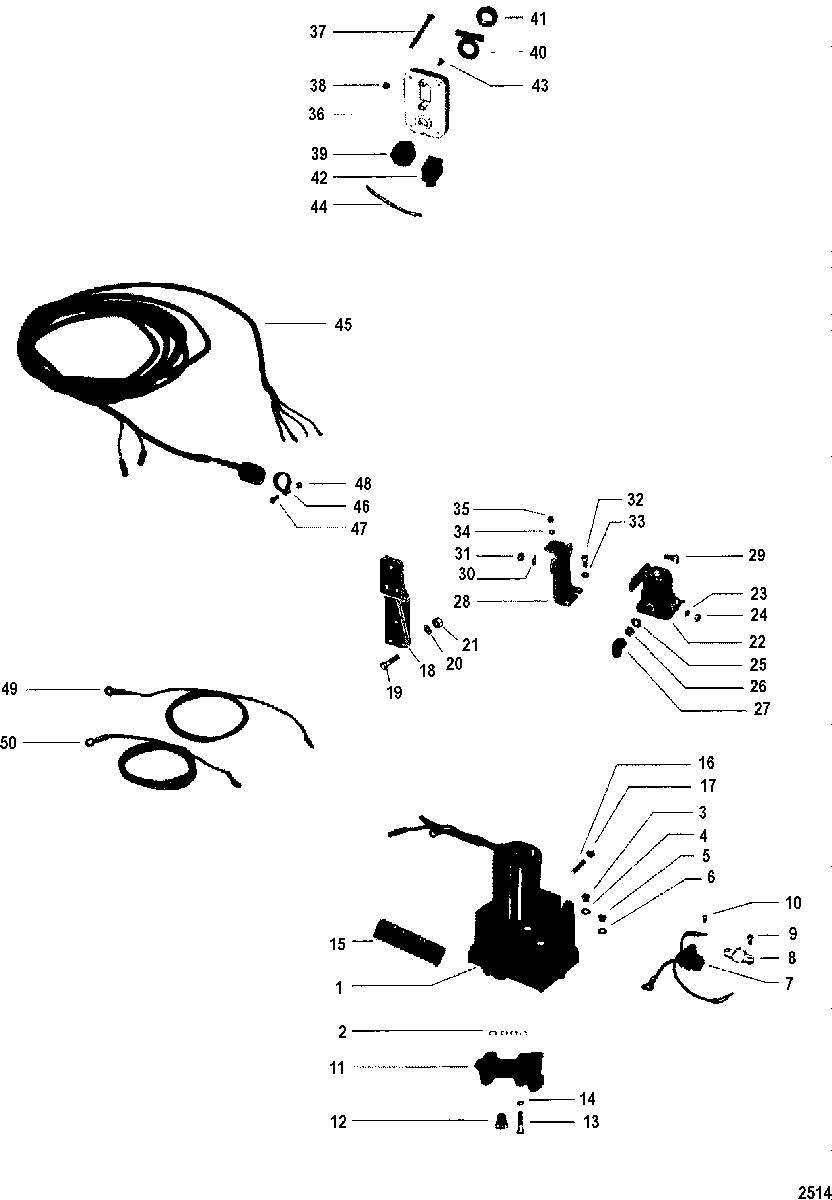

HYDRAULIC PUMP AND CONTROL PANEL для Mercruiser - 90 (Sterndrive) 1970-1972 2898020 THRU 3225967

  • №
    Артикул
    Название
  • 1
    45060A7 HYDRAULIC PUMP ASSEMBLY
    HYDRAULIC PUMP ASSEMBLY
  • 2
    25-48171 O RING-Pump to Control Valve
    O RING-Pump to Control Valve
  • 3
    10-22028 VENT SCREW
    VENT SCREW
  • 4
    13-46917 LOCKWASHER-Vent Screw
    LOCKWASHER-Vent Screw
  • 5
    10-79953Q04 FILLER SCREW
    FILLER SCREW
  • 6
    12-191833 WASHER-Sealing-Filler Screw
    WASHER-Sealing-Filler Screw
  • 7
    45325A1 CONNECTOR AND HARNESS
    CONNECTOR AND HARNESS
  • 8
    45559 TERMINAL BLOCK-Hydraulic Pump
    TERMINAL BLOCK-Hydraulic Pump
  • 9
    10-35519 SCREW- Terminal Block to Hydraulic Pump (1/2 IN.)
    SCREW- Terminal Block to Hydraulic Pump (1/2 IN.)
  • 10
    10-62568 SCREW-Harness Leads to Terminal Block (3/8 IN.)
    SCREW-Harness Leads to Terminal Block (3/8 IN.)
  • 11
    45382A1 CONTROL VALVE ASSEMBLY
    CONTROL VALVE ASSEMBLY
  • NS
    25-48171 O RING- Hydraulic Pump to Control Valve
    O RING- Hydraulic Pump to Control Valve
  • 12
    22-38609 PLUG-Control Valve (3/8-24 IN.)
    PLUG-Control Valve (3/8-24 IN.)
  • 13
    10-21091 SCREW-Control Valve to Hydraulic Pump (1-1/8 IN.)
    SCREW-Control Valve to Hydraulic Pump (1-1/8 IN.)
  • 14
    13-26992 LOCKWASHER-Control Valve Screw
    LOCKWASHER-Control Valve Screw
  • 15
    38-55823 DECAL-Oil Instructions-Hydraulic Pump
    DECAL-Oil Instructions-Hydraulic Pump
  • 16
    16-21831 STUD-Hydraulic Pump to Mounting Bracket
    STUD-Hydraulic Pump to Mounting Bracket
  • 17
    11-82670911 NUT-Hydraulic Pump Stud
    NUT-Hydraulic Pump Stud
  • 18
    94225A1 BRACKET-Mounting-Hydraulic Pump
    BRACKET-Mounting-Hydraulic Pump
  • 19
    10-26066 SCREW-Hydraulic Pump Mounting Bracket to Transom
    SCREW-Hydraulic Pump Mounting Bracket to Transom
  • 20
    12-20546 WASHER-Hydraulic Pump Mounting Bracket Screw
    WASHER-Hydraulic Pump Mounting Bracket Screw
  • 21
    11-82670911 NUT-Hydraulic Pump Mounting Bracket Screw
    NUT-Hydraulic Pump Mounting Bracket Screw
  • 22
    25661T1 STARTER SOLENOID
    STARTER SOLENOID
  • 23
    13-26996 LOCKWASHER-Starter Solenoid Terminal (#10)
    LOCKWASHER-Starter Solenoid Terminal (#10)
  • 24
    11-68219 NUT-Starter Solenoid Terminal (#10)
    NUT-Starter Solenoid Terminal (#10)
  • 25
    13-26993 LOCKWASHER-Starter Solenoid Terminal (5/16 IN.)
    LOCKWASHER-Starter Solenoid Terminal (5/16 IN.)
  • 26
    11-22053 NUT-Starter Solenoid Terminal (5/16 IN.)
    NUT-Starter Solenoid Terminal (5/16 IN.)
  • 27
    46265 BOOT-Rubber-Starter Solenoid Terminal
    BOOT-Rubber-Starter Solenoid Terminal
  • 28
    74407T BRACKET-Mounting-Starter Solenoid
    BRACKET-Mounting-Starter Solenoid
  • 29
    10-34290 SCREW-Starter Solenoid to Mounting Bracket (5/8 IN.)
    SCREW-Starter Solenoid to Mounting Bracket (5/8 IN.)
  • 30
    13-26992 LOCKWASHER-Starter Solenoid Screw
    LOCKWASHER-Starter Solenoid Screw
  • 31
    11-21825 NUT-Starter Solenoid Screw
    NUT-Starter Solenoid Screw
  • 32
    10-21140 SCREW-Mounting Bracket to Hydraulic Pump (1/2 IN.)
    SCREW-Mounting Bracket to Hydraulic Pump (1/2 IN.)
  • 33
    13-26992 LOCKWASHER-Mounting Bracket Screw
    LOCKWASHER-Mounting Bracket Screw
  • 34
    13-27660 LOCKWASHER-Hydraulic Pump Thru Bolt
    LOCKWASHER-Hydraulic Pump Thru Bolt
  • 35
    11-68219 NUT-Mounting Bracket to Hydraulic Pump Thru Bolt
    NUT-Mounting Bracket to Hydraulic Pump Thru Bolt
  • -
    55900A2 CONTROL PANEL ASSEMBLY
    CONTROL PANEL ASSEMBLY
  • 36
    55900 CONTROL PANEL
    CONTROL PANEL
  • 37
    10-32866 SCREW-Control Panel to Dashboard (2 IN.)
    SCREW-Control Panel to Dashboard (2 IN.)
  • 38
    11-8267086 NUT-Control Panel Screw
    NUT-Control Panel Screw
  • 39
    54211T IGNITION SWITCH-Control Panel
    IGNITION SWITCH-Control Panel
  • NS
    30431 KEY
    KEY
  • 40
    38-38706 INSERT-Ignition Switch Bezel
    INSERT-Ignition Switch Bezel
  • 41
    32861 BEZEL-Ignition Switch to Control Panel
    BEZEL-Ignition Switch to Control Panel
  • 42
    45002 ROCKER SWITCH-Control Panel
    ROCKER SWITCH-Control Panel
  • 43
    10-38792 SCREW-Rocker Switch toControl Panel
    SCREW-Rocker Switch toControl Panel
  • 44
    45340 JUMPER WIRE-Ignition Switch to Rocker Switch (Red-2-1/2 IN.)
    JUMPER WIRE-Ignition Switch to Rocker Switch (Red-2-1/2 IN.)
  • 45
    45448 CONTROL HARNESS
    CONTROL HARNESS
  • 46
    95814 CLAMP-Wiring Harness
    CLAMP-Wiring Harness
  • 47
    10-29227 SCREW-Wiring Harness Clamp
    SCREW-Wiring Harness Clamp
  • 48
    11-34388 NUT-Wiring Harness Clamp Screw
    NUT-Wiring Harness Clamp Screw
  • 49
    56675 BATTERY CABLE (Positive)
    BATTERY CABLE (Positive)
  • 50
    56676 BATTERY CABLE (Negative)
    BATTERY CABLE (Negative)
