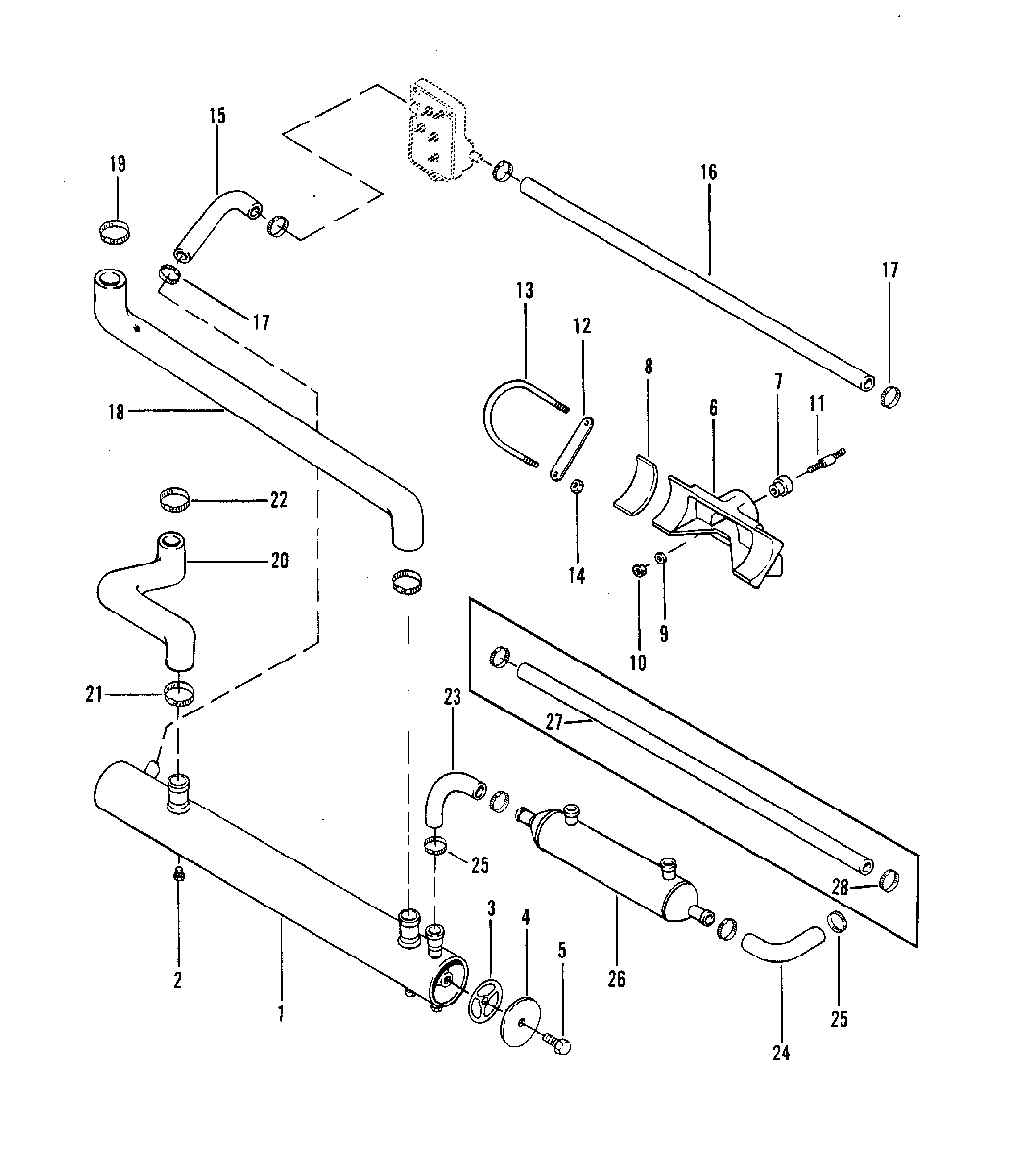

HEAT EXCHANGER для Mercruiser - 488 (4 BBL.) MERCURY 224 I/L4 1983-1984 6170297 THRU 6916778

  • №
    Артикул
    Название
  • 1
    99438A1 HEAT EXCHANGER
    HEAT EXCHANGER
  • 2
    22-328022 PIPE PLUG, HEAT EXCHANGER
    PIPE PLUG, HEAT EXCHANGER
  • 3
    27-99960 GASKET, END CAP
    GASKET, END CAP
  • 4
    99961 PLATE, END CAP
    PLATE, END CAP
  • 5
    10-99962 SCREW, END CAP - HEAT EXCHANGER
    SCREW, END CAP - HEAT EXCHANGER
  • 6
    98618A1 BRACKET ASSEMBLY, HEAT EXCHANGER
    BRACKET ASSEMBLY, HEAT EXCHANGER
  • 7
    41024 MOUNT, VIBRATION
    MOUNT, VIBRATION
  • 8
    77223 PAD, MOUNTING BRACKET
    PAD, MOUNTING BRACKET
  • 9
    12-31262 WASHER, MOUNT STUD
    WASHER, MOUNT STUD
  • 10
    11-34933 NUT, MOUNT STUD
    NUT, MOUNT STUD
  • 11
    16-41025 STUD, BRACKET
    STUD, BRACKET
  • 12
    98620 STRAP, BRACKET TO HEAT EXCHANGER
    STRAP, BRACKET TO HEAT EXCHANGER
  • 13
    10-98619A1 "U" BOLT, HEAT EXCHANGER
    "U" BOLT, HEAT EXCHANGER
  • 14
    11-26484 NUT, "U" BOLT
    NUT, "U" BOLT
  • 15
    32-88132 REGULATOR TUBE O.D. 5/8", HEAT EXCHANGER TUBE O.D. 5/8"
    REGULATOR TUBE O.D. 5/8", HEAT EXCHANGER TUBE O.D. 5/8"
  • 15
    32-41497 REGULATOR TUBE O.D. 5/8", HEAT EXCHANGER TUBE O.D. 3/4"
    REGULATOR TUBE O.D. 5/8", HEAT EXCHANGER TUBE O.D. 3/4"
  • 15
    32-99521 REGULATOR TUBE O.D. 3/4", HEAT EXCHANGER TUBE O.D. 5/8"
    REGULATOR TUBE O.D. 3/4", HEAT EXCHANGER TUBE O.D. 5/8"
  • 15
    32-99520 REGULATOR TUBE O.D. 3/4", HEAT EXCHANGER TUBE O.D. 3/4"
    REGULATOR TUBE O.D. 3/4", HEAT EXCHANGER TUBE O.D. 3/4"
  • 16
    32-47642 REGULATOR TUBE O.D. 5/8", HEAT EXCHANGER TUBE O.D. 5/8"
    REGULATOR TUBE O.D. 5/8", HEAT EXCHANGER TUBE O.D. 5/8"
  • 16
    32-99519 REGULATOR TUBE O.D. 5/8", HEAT EXCHANGER TUBE O.D. 3/4"
    REGULATOR TUBE O.D. 5/8", HEAT EXCHANGER TUBE O.D. 3/4"
  • 16
    32-8M0062634 REGULATOR TUBE O.D. 3/4", HEAT EXCHANGER TUBE O.D. 3/4"
    REGULATOR TUBE O.D. 3/4", HEAT EXCHANGER TUBE O.D. 3/4"
  • 17
    54-815504348 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 18
    32-77245 HOSE, THERMOSTAT HOUSING TO HEAT EXCHANGER
    HOSE, THERMOSTAT HOUSING TO HEAT EXCHANGER
  • 19
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 20
    32-89654 HOSE, EXHAUST MANIFOLD TO HEAT EXCHANGER
    HOSE, EXHAUST MANIFOLD TO HEAT EXCHANGER
  • 21
    54-815504220 CLAMP, HOSE TO HEAT EXCHANGER
    CLAMP, HOSE TO HEAT EXCHANGER
  • 22
    54-815504228 CLAMP, HOSE TO EXHAUST MANIFOLD
    CLAMP, HOSE TO EXHAUST MANIFOLD
  • 23
    32-8M0062614 HOSE, COOLER TO HEAT EXCHANGER WITH POWER STEERING
    HOSE, COOLER TO HEAT EXCHANGER WITH POWER STEERING
  • 24
    32-95850 HOSE, COOLER TO EXHAUST ELBOW WITH POWER STEERING
    HOSE, COOLER TO EXHAUST ELBOW WITH POWER STEERING
  • 25
    54-815504220 CLAMP, HOSE ATTACHING WITH POWER STEERING
    CLAMP, HOSE ATTACHING WITH POWER STEERING
  • 26
    99356A1 IOL COOLER WITH POWER STEERING
    IOL COOLER WITH POWER STEERING
  • 27
    32-8M0062614 HOSE, HEAT EXCHANGER TO EXHAUST ELBOW WITHOUT POWER STEERING
    HOSE, HEAT EXCHANGER TO EXHAUST ELBOW WITHOUT POWER STEERING
  • 28
    54-815504220 CLAMP, HOSE ATTACHING WITHOUT POWER STEERING
    CLAMP, HOSE ATTACHING WITHOUT POWER STEERING
