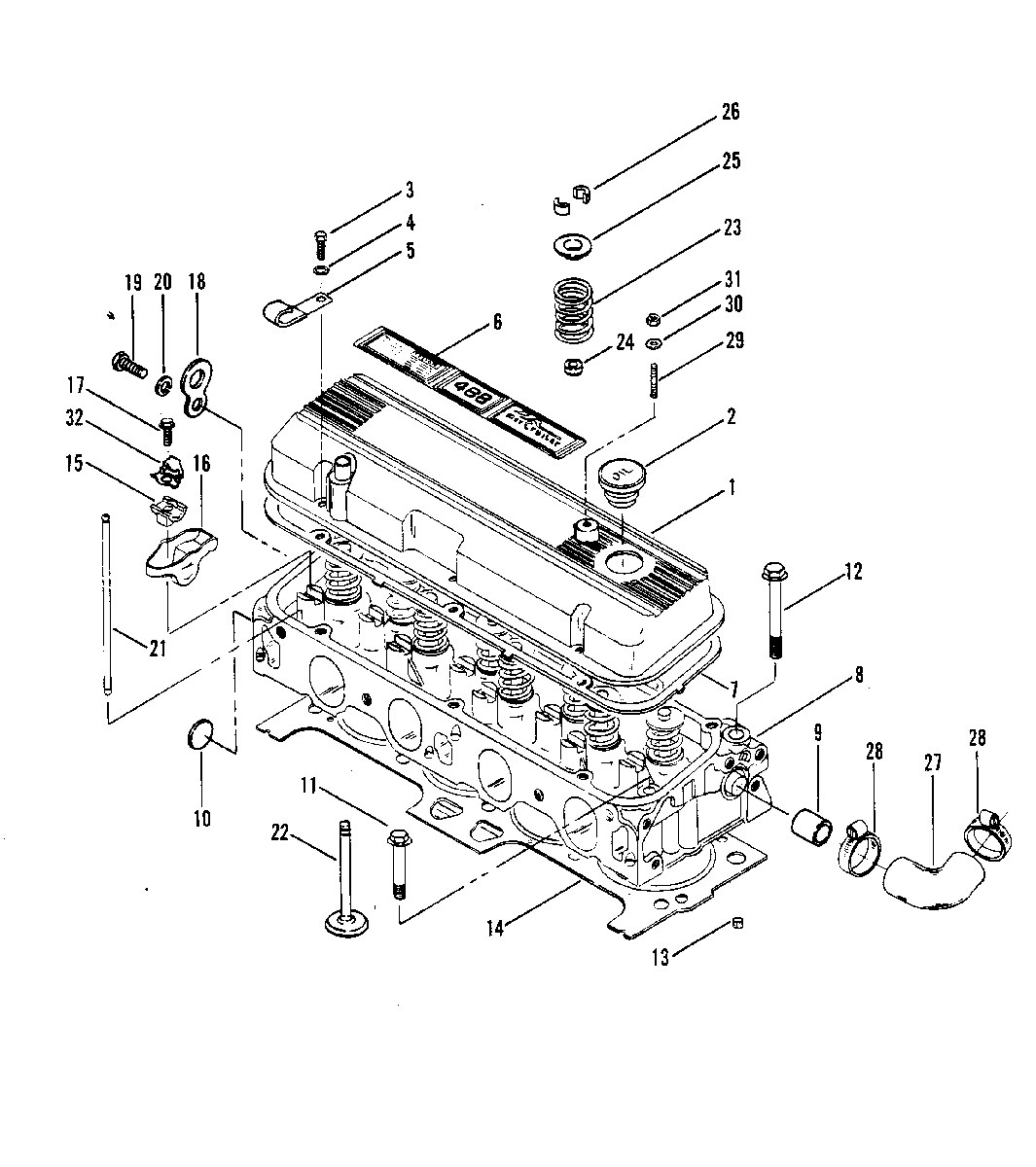

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 488 (4 BBL.) MERCURY 224 I/L4 1983-1984 6170297 THRU 6916778

  • №
    Артикул
    Название
  • 1
    41638A1 ROCKER COVER
    ROCKER COVER
  • 2
    36-807152 CAP, OIL FILLER
    CAP, OIL FILLER
  • 3
    10-65746 SCREW, ROCKER COVER (1/4-20 X 3/4")
    SCREW, ROCKER COVER (1/4-20 X 3/4")
  • 4
    13-22773 LOCKWASHER, ROCKER COVER SCREW
    LOCKWASHER, ROCKER COVER SCREW
  • 5
    54-642351 "J" CLIP, ROCKER COVER SCREW
    "J" CLIP, ROCKER COVER SCREW
  • 6
    37-99451 DECAL, ROCKER COVER
    DECAL, ROCKER COVER
  • 7
    27-73666 GASKET, ROCKER COVER
    GASKET, ROCKER COVER
  • 8
    966-9451R2 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 9
    23-72119 SLEEVE, WATER
    SLEEVE, WATER
  • 10
    19-74832 PLUG, CYLINDER HEAD
    PLUG, CYLINDER HEAD
  • 11
    10-67503 SCREW, CYLINDER HEAD (4-3/8")
    SCREW, CYLINDER HEAD (4-3/8")
  • 12
    10-72769 SCREW, CYLINDER HEAD (5-1/8")
    SCREW, CYLINDER HEAD (5-1/8")
  • 13
    17-67489 PIN, CYLINBDER HEAD
    PIN, CYLINBDER HEAD
  • 14
    27-13709 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 15
    67504 BALL UNIT, ROCKER COVER
    BALL UNIT, ROCKER COVER
  • 16
    806751A1 ARM, .ROCKER VALVE
    ARM, .ROCKER VALVE
  • 17
    10-67506 SCREW, ROCKER ARM
    SCREW, ROCKER ARM
  • 18
    54-72531 LIFTING EYE
    LIFTING EYE
  • 19
    10-48948 SCREW, LIFTING EYE (7/16-14 X 7/8") FRONT
    SCREW, LIFTING EYE (7/16-14 X 7/8") FRONT
  • 20
    13-32993 LOCKWASHER, LIFTING EYE SCREW FRONT
    LOCKWASHER, LIFTING EYE SCREW FRONT
  • 19
    10-68101 SCREW, LIFTING EYE (3/8-16 X 1") - REAR
    SCREW, LIFTING EYE (3/8-16 X 1") - REAR
  • 21
    675025 PUSH ROD, VALVE - (NO DYE)
    PUSH ROD, VALVE - (NO DYE)
  • 21
    675023 PUSH ROD, VALVE (RED DYE)
    PUSH ROD, VALVE (RED DYE)
  • 21
    675024 PUSH ROD, VALVE (BLUE DYE)
    PUSH ROD, VALVE (BLUE DYE)
  • 21
    67502T2 PUSH ROD, VALVE (YELLOW DYE)
    PUSH ROD, VALVE (YELLOW DYE)
  • 22
    44182A1 VALVE, EXHAUST - STD.
    VALVE, EXHAUST - STD.
  • 22
    42449 VALVE, EXHAUST (.015 O.S.)
    VALVE, EXHAUST (.015 O.S.)
  • 22
    44181A1 VALVE, INTAKE - STD
    VALVE, INTAKE - STD
  • 22
    42451 VALVE, INTAKE (.015 O.S.)
    VALVE, INTAKE (.015 O.S.)
  • 23
    99292T1 VALVE SPRING
    VALVE SPRING
  • 24
    26-75624 SEAL, VALVE STEM
    SEAL, VALVE STEM
  • 25
    75412 RETAINER, VALVE SPRING
    RETAINER, VALVE SPRING
  • 26
    28-547971 KEY, VALVE STEM
    KEY, VALVE STEM
  • 27
    32-89653 HOSE, CYLINDER HEAD TO EXHAIUST MANIFOLD
    HOSE, CYLINDER HEAD TO EXHAIUST MANIFOLD
  • 28
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 29
    16-38525 STUD, THROTTLE CABLE ANCHOR - ROCKER COVER
    STUD, THROTTLE CABLE ANCHOR - ROCKER COVER
  • 30
    12-24664 WASHER, THROTTLE CABLE ANCHOR - STUD
    WASHER, THROTTLE CABLE ANCHOR - STUD
  • 31
    11-826709109 NUT, THROTTLE CBLE ANCHOR - STUD
    NUT, THROTTLE CBLE ANCHOR - STUD
  • 32
    806751A1 BAFFLE, OIL
    BAFFLE, OIL
