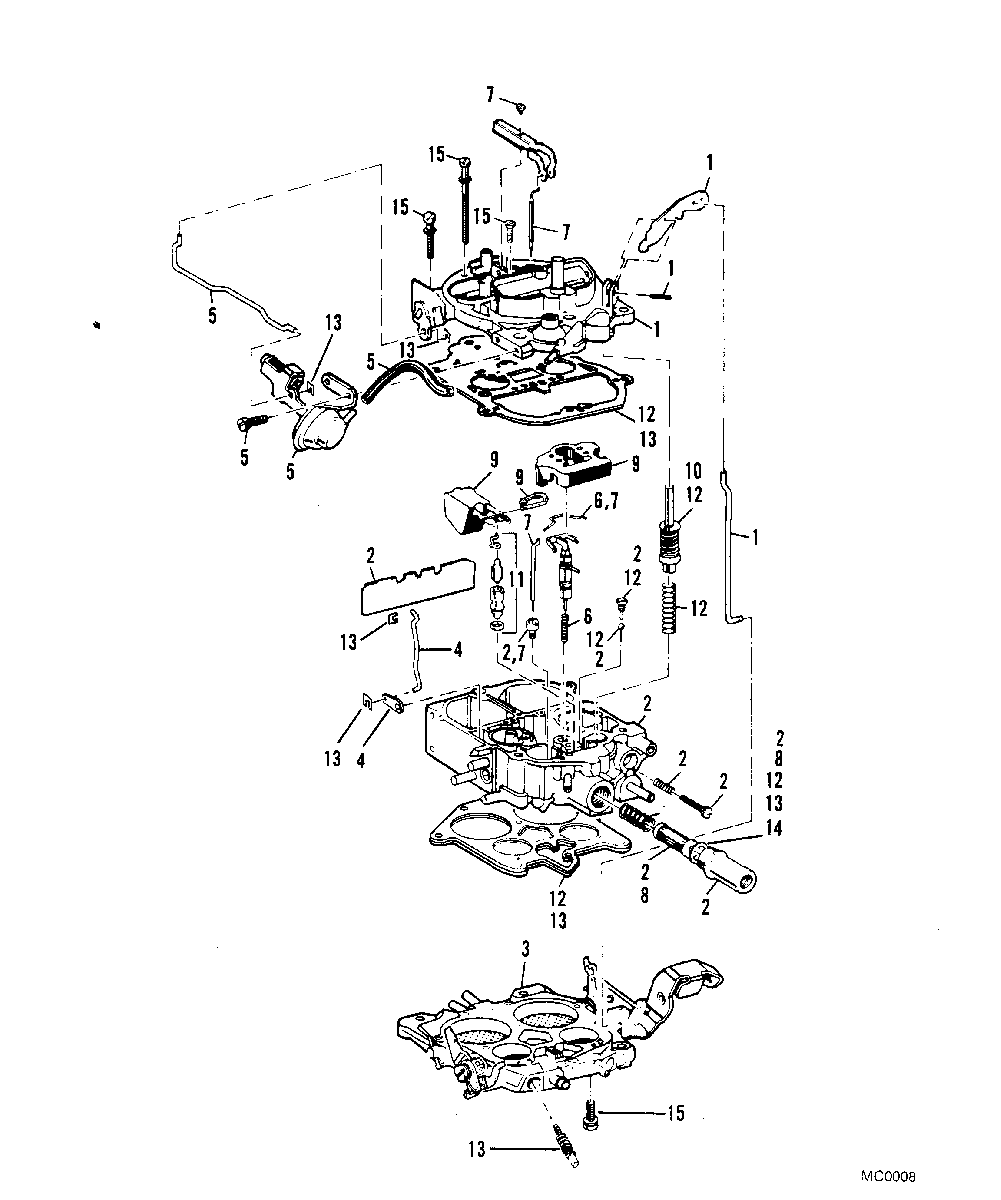

CARBURETOR для Mercruiser - 488 (4 BBL.) MERCURY 224 I/L4 1983-1984 6170297 THRU 6916778
-
№АртикулНазвание
-
-1347-9142A2 CARBURETOR ASSEMBLYCARBURETOR ASSEMBLY
-
11397-8953 AIR HORN KITAIR HORN KIT
-
21397-8954 FLOAT BOWL KITFLOAT BOWL KIT
-
31397-8540 THROTTLE BODY KITTHROTTLE BODY KIT
-
41397-8955 CHOKE LINK AND LEVER KITCHOKE LINK AND LEVER KIT
-
51397-8956 PRIMARY VACUUM KITPRIMARY VACUUM KIT
-
61397-8957 POWER PISTON KITPOWER PISTON KIT
-
71397-8958 METERING JET AND ROD KITMETERING JET AND ROD KIT
-
81397-8767Q FUEL FILTER KITFUEL FILTER KIT
-
91397-3327 FLOAT KITFLOAT KIT
-
10823426A1 PUMP KITPUMP KIT
-
111397-8960 NEEDLE AND SEAT KITNEEDLE AND SEAT KIT
-
12823426A1 CARBURETOR REPAIR KIT SEE NOTECARBURETOR REPAIR KIT SEE NOTE
-
13823426A1 GASKET KIT SEE NOTEGASKET KIT SEE NOTE
-
141397-8327 GASKET,FUEL FILTER NUTGASKET,FUEL FILTER NUT
-
151397-8557 SCREW, KIT, AIR HORN/TROTTLE BODYSCREW, KIT, AIR HORN/TROTTLE BODY
