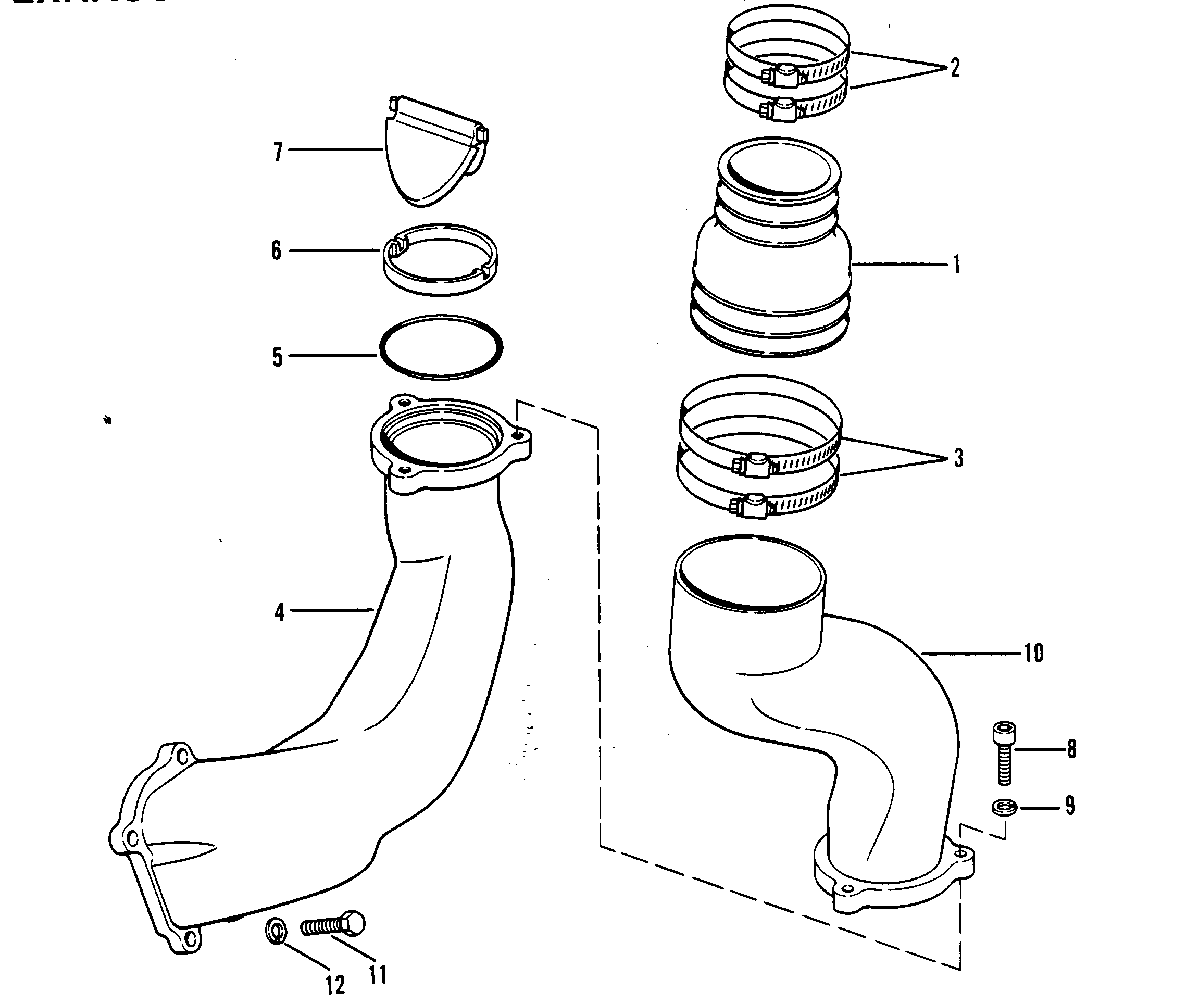

EXHAUST ELBOW (M0034-W9) для Mercruiser - 488 (4 BBL.) MERCURY 224 I/L4 1983-1984 6170297 THRU 6916778

  • №
    Артикул
    Название
  • 1
    70981A3 BELLOWS, EXHAUST ELBOW TO ENGINE
    BELLOWS, EXHAUST ELBOW TO ENGINE
  • 2
    54-815504456 CLAMP, BELLOWS (SMALL)
    CLAMP, BELLOWS (SMALL)
  • 3
    54-815504372 CLAMP, BELLOWS (LARGE)
    CLAMP, BELLOWS (LARGE)
  • 4
    42421A13 EXHAUST PIPE ASSEMBLY, LOWER
    EXHAUST PIPE ASSEMBLY, LOWER
  • 5
    25-35029 "O" RING, EXHAUST ELBOW
    "O" RING, EXHAUST ELBOW
  • 6
    60931 RETAINER, WATER SHUTTER
    RETAINER, WATER SHUTTER
  • 7
    60930 WATER SHUTTER
    WATER SHUTTER
  • 8
    10-8M0113174 SCREW, PIPE TO ELBOW (1-1/4")
    SCREW, PIPE TO ELBOW (1-1/4")
  • 9
    13-41471 LOCKWASHER, PIPE SCREW
    LOCKWASHER, PIPE SCREW
  • 10
    42421A14 EXHAUST ELBOW ASSEMBLY, UPPER
    EXHAUST ELBOW ASSEMBLY, UPPER
  • 11
    10-8M0113174 SCREW, ELBOW TO GIMBAL HOUSING (1-1/4")
    SCREW, ELBOW TO GIMBAL HOUSING (1-1/4")
  • 12
    13-41471 LOCKWASHER, ELBOW SCREW
    LOCKWASHER, ELBOW SCREW
