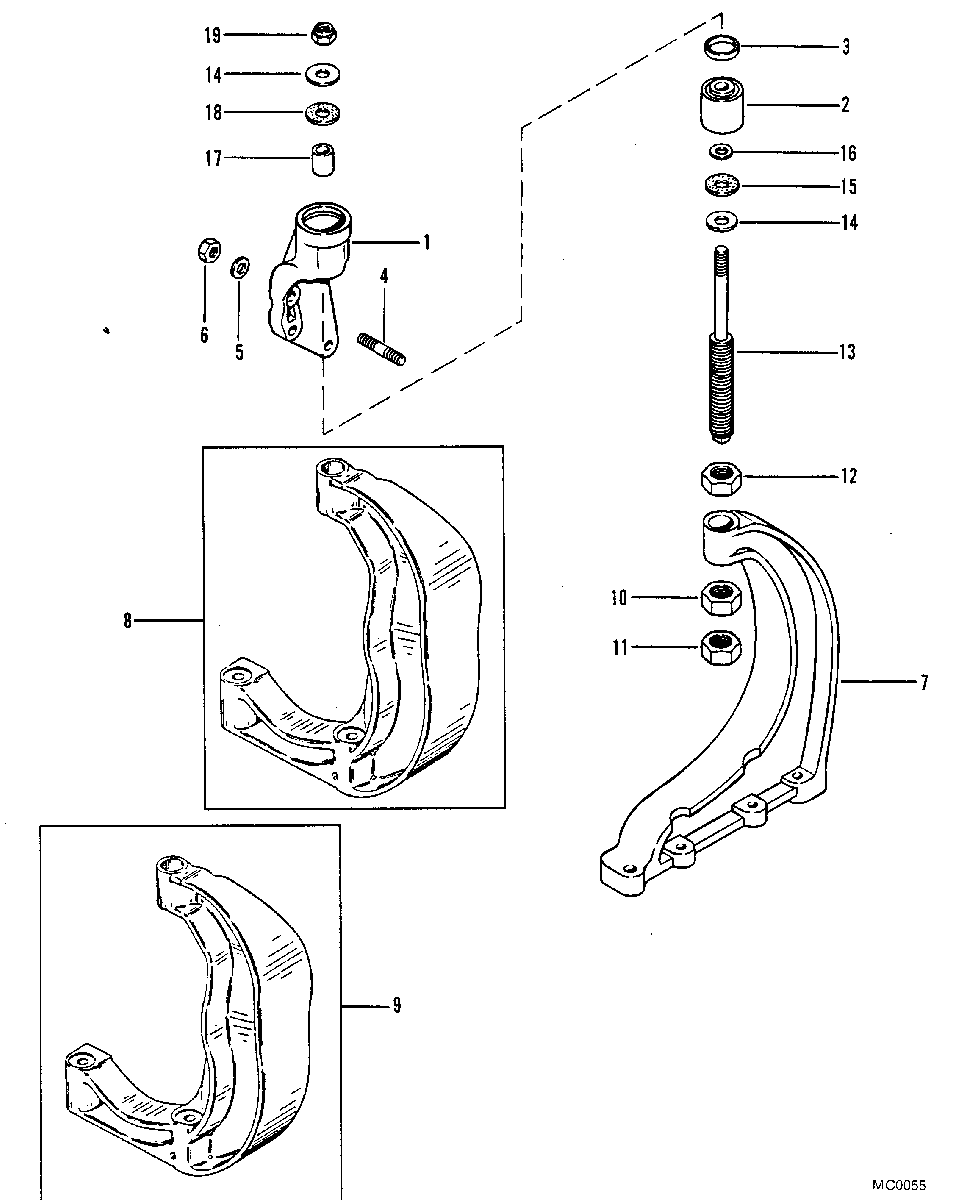

FRONT MOUNT для Mercruiser - 488 (4 BBL.) MERCURY 224 I/L4 1983-1984 6170297 THRU 6916778

  • №
    Артикул
    Название
  • 1
    77877A2 FRONT MOUNT BRACKET ASSEMBLY
    FRONT MOUNT BRACKET ASSEMBLY
  • 2
    32833 MOUNT, RUBBER
    MOUNT, RUBBER
  • 3
    23-35903 SPACER, RUBBER MOUNT
    SPACER, RUBBER MOUNT
  • 4
    16-56295 STUD, MOUNTING BRACKET (UPPER)
    STUD, MOUNTING BRACKET (UPPER)
  • 4
    16-56295 STUD, MOUNTING BRACKET (LOWER)
    STUD, MOUNTING BRACKET (LOWER)
  • 5
    12-34567 WASHER, MOUNTING BRACKET STUD
    WASHER, MOUNTING BRACKET STUD
  • 6
    11-34933 NUT, MOUNTING BRACKET STUD
    NUT, MOUNTING BRACKET STUD
  • 7
    76839T MOUNT, FRONT SUPPORT
    MOUNT, FRONT SUPPORT
  • 8
    78814A1 SUPPORT, FRONT (22" CENTERS)
    SUPPORT, FRONT (22" CENTERS)
  • 9
    78483A1 SUPPORT, FRONT (6" CENTERS)
    SUPPORT, FRONT (6" CENTERS)
  • 10
    11-32882 NUT, FRONT SUPPORT MOUNT TO ADJUSTING STUD
    NUT, FRONT SUPPORT MOUNT TO ADJUSTING STUD
  • 11
    11-47525 NUT, FRONT SUPPORT MOUNT TO ADJUSTING STUD
    NUT, FRONT SUPPORT MOUNT TO ADJUSTING STUD
  • 12
    11-32882 NUT, ADJUSTING STUD (7/8-14)
    NUT, ADJUSTING STUD (7/8-14)
  • 13
    16-36100T STUD, ADJUSTING
    STUD, ADJUSTING
  • 14
    12-36103 WASHER,STEEL - UPPER AND LOWER
    WASHER,STEEL - UPPER AND LOWER
  • 15
    12-32638 WASHER, FIBER - ADJUSTING STUD
    WASHER, FIBER - ADJUSTING STUD
  • 16
    12-30119 WASHER, SPACER - ADJUSTING STUD
    WASHER, SPACER - ADJUSTING STUD
  • 17
    23-32756 SPACER, ADJUSTING STUD
    SPACER, ADJUSTING STUD
  • 18
    12-36104 WASHER, FIBER - ADJUSTING STUD
    WASHER, FIBER - ADJUSTING STUD
  • 19
    11-82671317 NUT, ADJUSTING STUD (1/2-20)
    NUT, ADJUSTING STUD (1/2-20)
