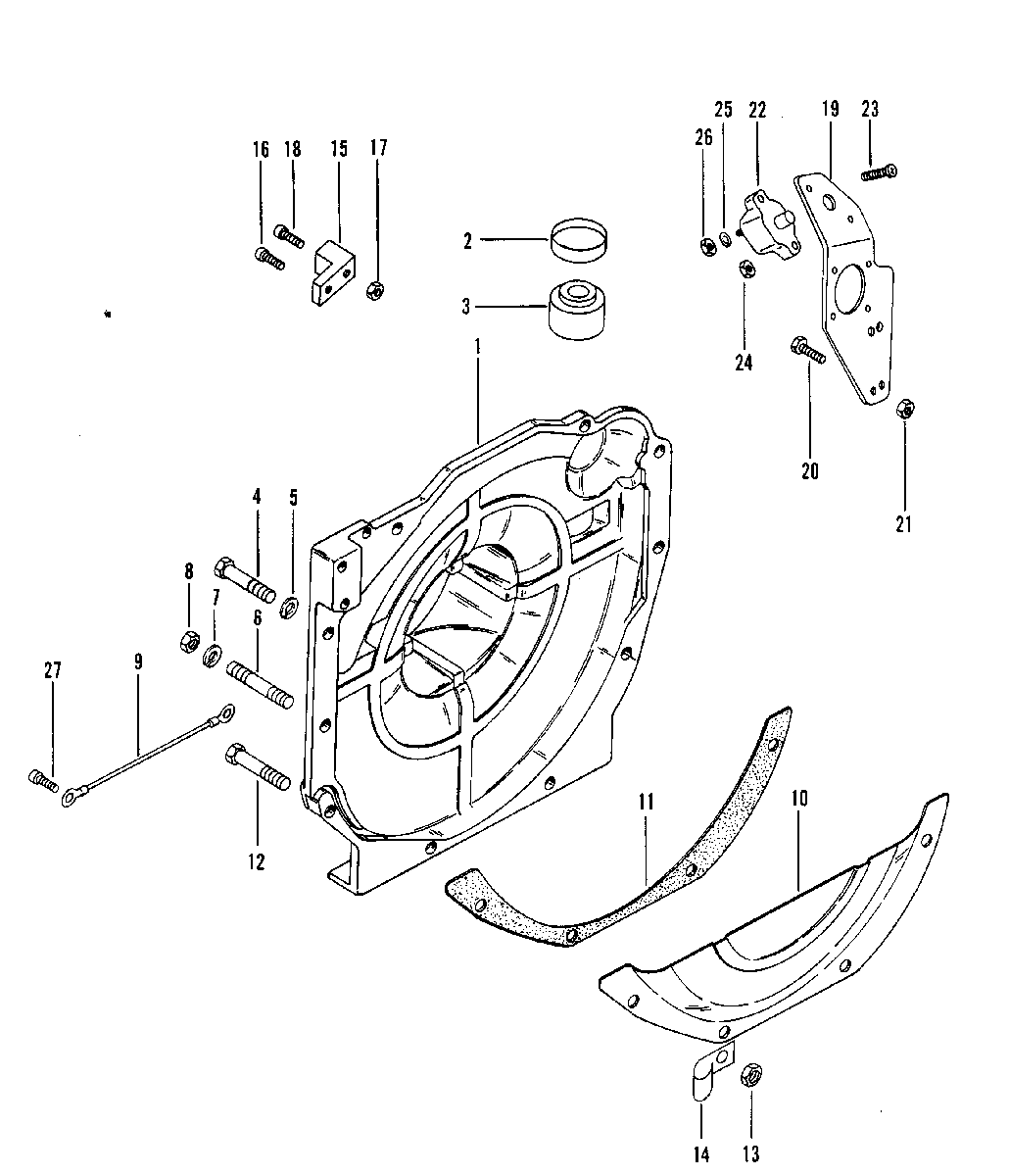

FLYWHEEL HOUSING ASSEMBLY для Mercruiser - 488 (4 BBL.) MERCURY 224 I/L4 1983-1984 6170297 THRU 6916778

  • №
    Артикул
    Название
  • 1
    94985A2 FLYWHEEL HOUSING ASSEMBLY
    FLYWHEEL HOUSING ASSEMBLY
  • 2
    23-99322 SPACER, RUBER MOUNT
    SPACER, RUBER MOUNT
  • 3
    8M0103028 MOUNT, RUBBER
    MOUNT, RUBBER
  • 4
    10-37612 SCREEW, FLYWHEEL HOUSING (1-1/4")
    SCREEW, FLYWHEEL HOUSING (1-1/4")
  • 5
    10-35047 LOCKWASHER, FLYWHEEL HOUSING SCREW
    LOCKWASHER, FLYWHEEL HOUSING SCREW
  • 6
    16-861316 STUD, FLYWHEEL HOUSING
    STUD, FLYWHEEL HOUSING
  • 7
    10-35047 LOCKWASHER, FLYWHEEL HOUSING STUD
    LOCKWASHER, FLYWHEEL HOUSING STUD
  • 8
    11-32219 NUT, FLYWHEEL HOUSING STUD
    NUT, FLYWHEEL HOUSING STUD
  • 9
    84-62826T06 WIRE, FLYWHEEL HOUSING STUD
    WIRE, FLYWHEEL HOUSING STUD
  • 10
    95026A2 COVER, FLYWHEEL HOUSING
    COVER, FLYWHEEL HOUSING
  • 11
    27-94976 GASKET, FLYWHEEL HOUSING COVER
    GASKET, FLYWHEEL HOUSING COVER
  • 12
    10-26065 SCREW, COVER TO FLYWHEEL HOUSING AND CLAMP (1")
    SCREW, COVER TO FLYWHEEL HOUSING AND CLAMP (1")
  • 13
    11-29250 NUT, COVER TO FLYWHEEL HOUSING AND CLAMP SCREW
    NUT, COVER TO FLYWHEEL HOUSING AND CLAMP SCREW
  • 14
    54-61001 CLAMP, SHIFT CABLE ATTACHING
    CLAMP, SHIFT CABLE ATTACHING
  • 15
    86-45915 TERMINAL BLOCK
    TERMINAL BLOCK
  • 16
    10-20189 SCREEW, TERMINAL BLOCK TO FLYWHEEL HOUSING (3/4")
    SCREEW, TERMINAL BLOCK TO FLYWHEEL HOUSING (3/4")
  • 17
    11-27164 NUT, TRMINAL BLOCK SCREW
    NUT, TRMINAL BLOCK SCREW
  • 18
    10-62568 SCREW, LEAD ATTACHING TO TERMINAL BLOCK
    SCREW, LEAD ATTACHING TO TERMINAL BLOCK
  • 19
    43182 BRACKET, CIRCUIT BREAKER
    BRACKET, CIRCUIT BREAKER
  • 20
    10-22524 SCREW, CIRCUIT BREAKER BRACKET TO FLYWHEEL HOUSING
    SCREW, CIRCUIT BREAKER BRACKET TO FLYWHEEL HOUSING
  • 21
    11-8267098 NUT, CIRCUIT BREAKER BRACKET SCREW
    NUT, CIRCUIT BREAKER BRACKET SCREW
  • 22
    88-11178A01 CIRCUIT BREAKER (50 AMP.)
    CIRCUIT BREAKER (50 AMP.)
  • 23
    10-45862 SCREW, CIRCUIT BREAKER TO BRACKET (7/8")
    SCREW, CIRCUIT BREAKER TO BRACKET (7/8")
  • 24
    11-46438 NUT, CIRCUIT BREAKER SCREW
    NUT, CIRCUIT BREAKER SCREW
  • 25
    13-26996 LOCKWASHER, CIRCUIT BREAKER TERMINAL
    LOCKWASHER, CIRCUIT BREAKER TERMINAL
  • 26
    11-68219 NUT, CIRCUIT BREAKER TERMINAL
    NUT, CIRCUIT BREAKER TERMINAL
  • 27
    10-85486 SCREW, GROUNG WIRE TO TRANSOM PLATE
    SCREW, GROUNG WIRE TO TRANSOM PLATE
