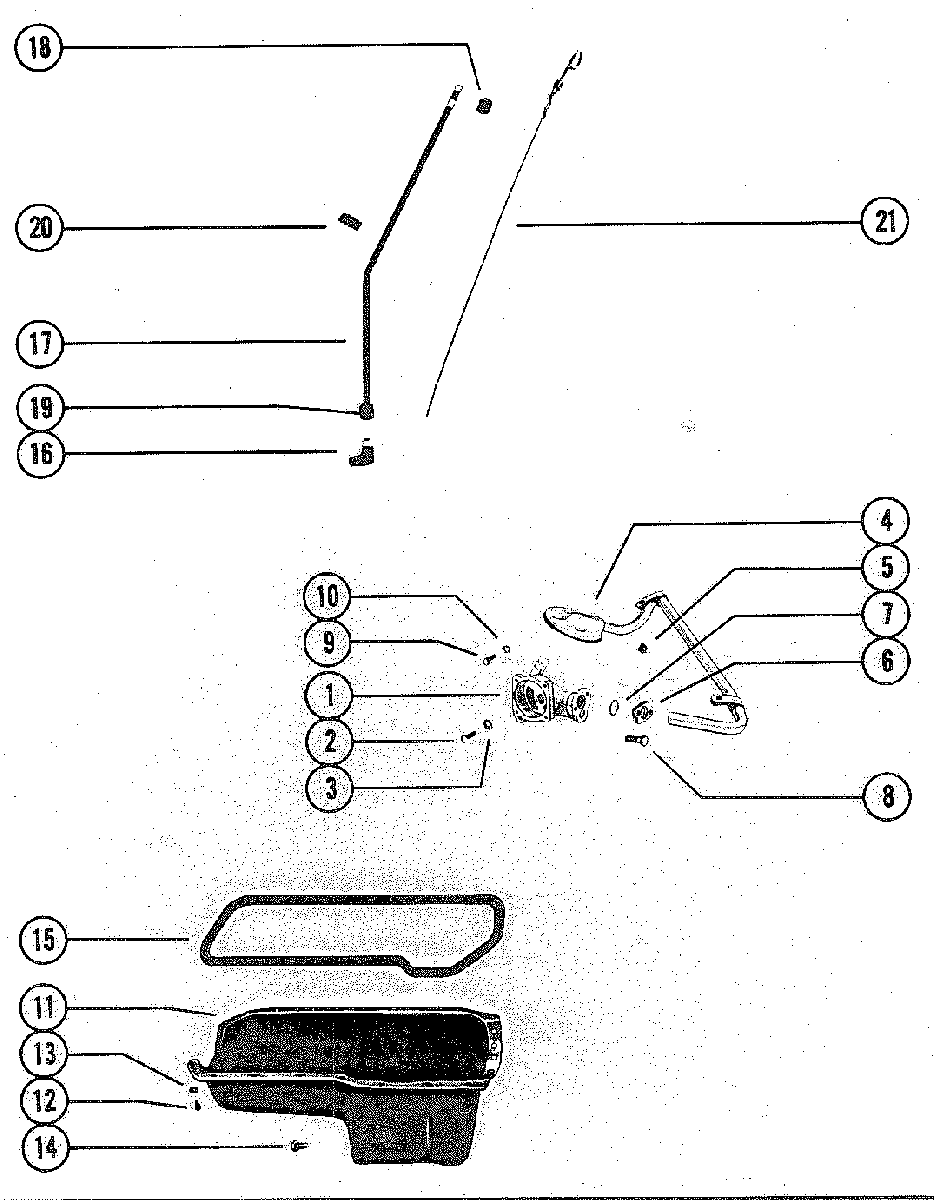

OIL PUMP AND OIL PAN для Mercruiser - 485 (2 BBL.) MERCURY 224 I/L4 1980-1982 5685394 THRU 6218036

  • №
    Артикул
    Название
  • 1
    13838A1 OIL PUMP ASSEMBLY
    OIL PUMP ASSEMBLY
  • 2
    10-28668 SCREW, COVER TO OIL PUMP
    SCREW, COVER TO OIL PUMP
  • 3
    13-26992 LOCKWASHER, COVER TO OIL PUMP SCREW
    LOCKWASHER, COVER TO OIL PUMP SCREW
  • 4
    32-72877A1 OIL PICK-UP TUBE ASSEMBLY
    OIL PICK-UP TUBE ASSEMBLY
  • 5
    11-67919 NUT, OIL PICK-UP TUBE TO CYLINDER BLOCK
    NUT, OIL PICK-UP TUBE TO CYLINDER BLOCK
  • 6
    70792 FLANGE, TUBE TO PUMP
    FLANGE, TUBE TO PUMP
  • 8
    10-861846 SCREW, FLANGE TO PUMP (3/4")
    SCREW, FLANGE TO PUMP (3/4")
  • 9
    10-37612 SCREW, PUMP TO ENGINE (1 1/4")
    SCREW, PUMP TO ENGINE (1 1/4")
  • 10
    13-35048 LOCKWASHER, PUMP TO ENGINE SCREW
    LOCKWASHER, PUMP TO ENGINE SCREW
  • 11
    71938A1 OIL PAN
    OIL PAN
  • 12
    10-86750 SCREW, OIL PAN ATTACHING (5/8")
    SCREW, OIL PAN ATTACHING (5/8")
  • 13
    13-26993 LOCKWASHER, OIL PAN ATTACHING SCREW
    LOCKWASHER, OIL PAN ATTACHING SCREW
  • 14
    22-60039 PLUG, OIL DRAIN
    PLUG, OIL DRAIN
  • 15
    27-72479A5 GASKET, OIL PAN
    GASKET, OIL PAN
  • 16
    22-47625 ELBOW, OIL PAN
    ELBOW, OIL PAN
  • 17
    78744A4 TUBE ASSEMBLY, DIPSTICK
    TUBE ASSEMBLY, DIPSTICK
  • 18
    22-78039 COUPLING, DIPSTICK TUBE
    COUPLING, DIPSTICK TUBE
  • 19
    11-47626 NUT, DIPSTICK TUBE TO ELBOW
    NUT, DIPSTICK TUBE TO ELBOW
  • 20
    54-73536 CLIP, DIPSTICK TO EXHAUST MANIFOLD
    CLIP, DIPSTICK TO EXHAUST MANIFOLD
  • 21
    73232A1 GAUGE, OIL LEVEL
    GAUGE, OIL LEVEL
