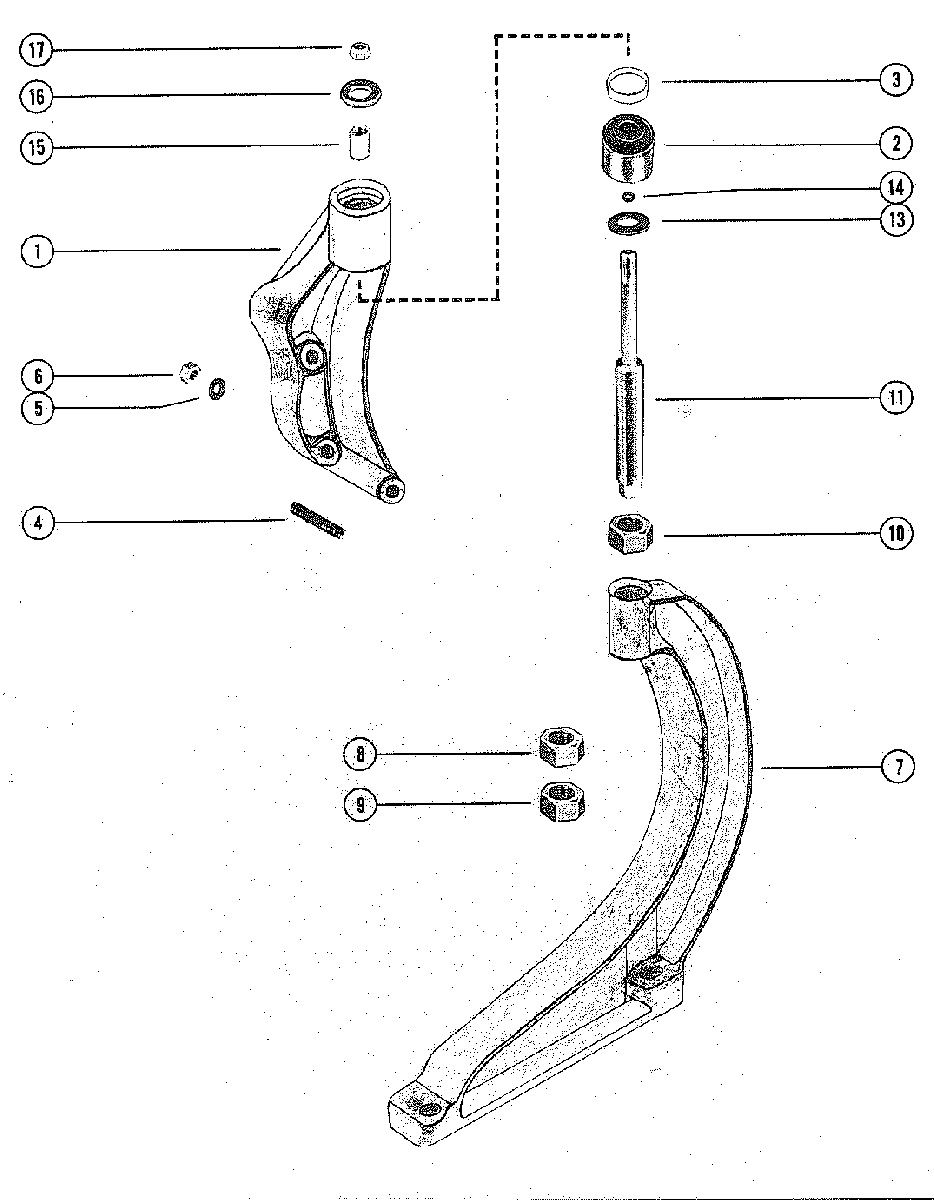

FRONT MOUNT ASSEMBLY для Mercruiser - 485 (2 BBL.) MERCURY 224 I/L4 1980-1982 5685394 THRU 6218036

  • №
    Артикул
    Название
  • 1
    77877A2 FRONT MOUNT BRACKET ASSEMBLY
    FRONT MOUNT BRACKET ASSEMBLY
  • 2
    32833 MOUNT, RUBBER
    MOUNT, RUBBER
  • 3
    23-35903 SPACER, RUBBER MOUNT
    SPACER, RUBBER MOUNT
  • 4
    16-56295 STUD, MOUNTING BRACKET ATTACHING (UPPER)
    STUD, MOUNTING BRACKET ATTACHING (UPPER)
  • 4
    16-32129 STUD, MOUNTING BRACKET ATTACHING (LOWER)
    STUD, MOUNTING BRACKET ATTACHING (LOWER)
  • 5
    12-34567 WASHER, MOUNTING BRACKET STUD
    WASHER, MOUNTING BRACKET STUD
  • 6
    11-34933 NUT, MOUNTING BRACEKT STUD
    NUT, MOUNTING BRACEKT STUD
  • 7
    76839T MOUNT, FRONT SUPPORT
    MOUNT, FRONT SUPPORT
  • 7
    78814A1 SUPPORT, FRONT (22" CENTERS)
    SUPPORT, FRONT (22" CENTERS)
  • 7
    78483A1 SUPPPORT, FRONT (6" CENTERS)
    SUPPPORT, FRONT (6" CENTERS)
  • 8
    11-32882 NUT, FRONT SUPPORT MOUNT TO ADJUSTING STUD
    NUT, FRONT SUPPORT MOUNT TO ADJUSTING STUD
  • 9
    11-47525 NUT, FRONT SUPPORT MOUNT TO ADJUSTING STUD
    NUT, FRONT SUPPORT MOUNT TO ADJUSTING STUD
  • 10
    11-32882 NUT, ADJUSTING STUD (7/8-14)
    NUT, ADJUSTING STUD (7/8-14)
  • 11
    16-36100T STUD, ADJUSTING
    STUD, ADJUSTING
  • 13
    12-32638 WASHER, FIBER - ADJUSTING STUD
    WASHER, FIBER - ADJUSTING STUD
  • 14
    12-20959 WASHER, SPACER - ADJUSTING STUD
    WASHER, SPACER - ADJUSTING STUD
  • 15
    23-36101 SPACER, ADJUSTING STUD
    SPACER, ADJUSTING STUD
  • 16
    12-36104 WASHER, FIBER - ADJUSTING STUD
    WASHER, FIBER - ADJUSTING STUD
  • 17
    11-82671317 NUT, ADJUSTING STUD (1/2-20)
    NUT, ADJUSTING STUD (1/2-20)
