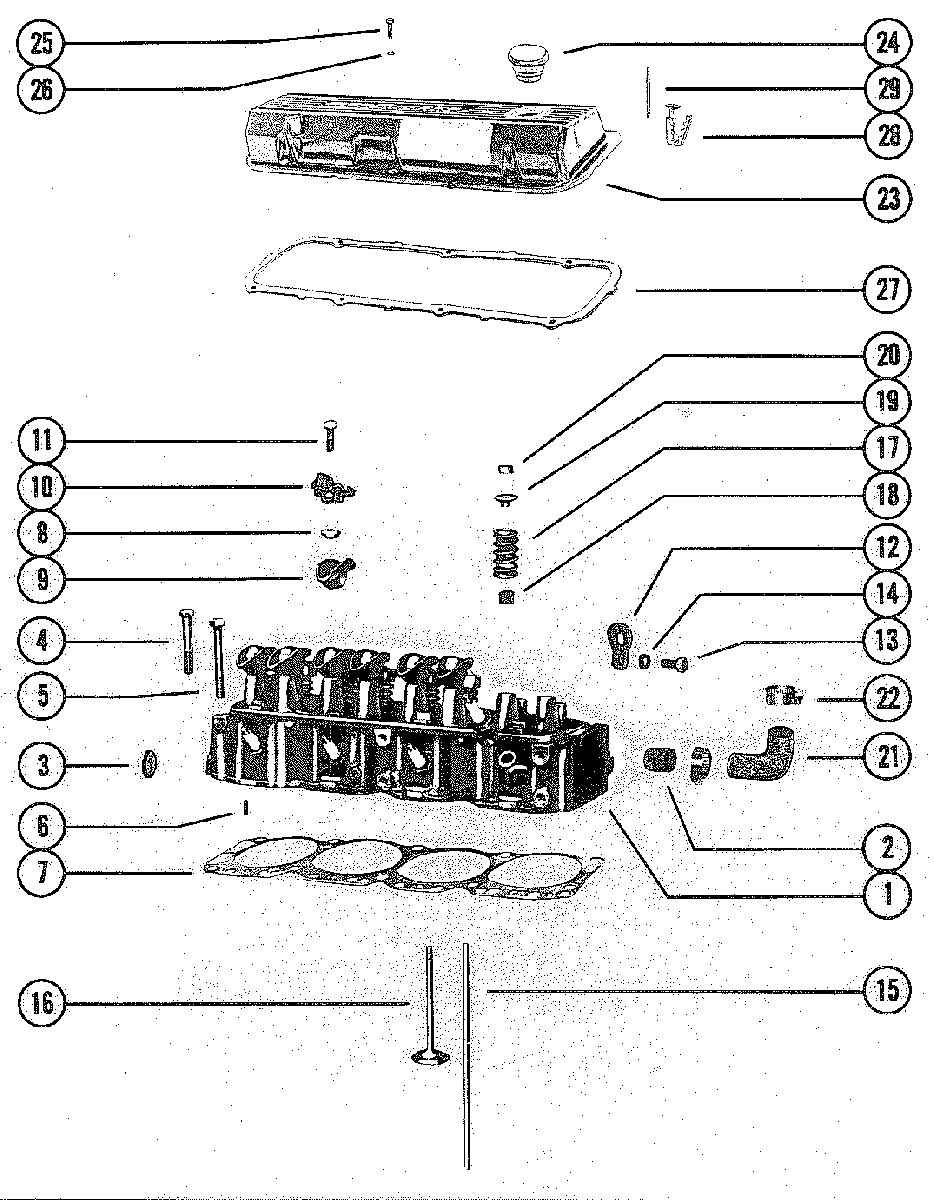

CYLINDER HEAD ASSEMBLY AND ROCKER COVER для Mercruiser - 485 (2 BBL.) MERCURY 224 I/L4 1980-1982 5685394 THRU 6218036

  • №
    Артикул
    Название
  • 1
    966-9451R2 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 2
    23-72119 SLEEVE, WATER
    SLEEVE, WATER
  • 3
    19-74832 PLUG
    PLUG
  • 4
    10-67503 SCREW, CYLINDER HEAD ATTACHING (4 3/8")
    SCREW, CYLINDER HEAD ATTACHING (4 3/8")
  • 5
    10-72769 SCREW, CYLINDER HEAD ATTACHING (5 1/8")
    SCREW, CYLINDER HEAD ATTACHING (5 1/8")
  • 6
    17-67489 PIN, CYLINDER HEAD
    PIN, CYLINDER HEAD
  • 7
    27-13709 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 8
    67504 BALL UNIT, ROCKER COVER
    BALL UNIT, ROCKER COVER
  • 9
    806751A1 ARM, ROCKER VALVE
    ARM, ROCKER VALVE
  • 10
    806751A1 BAFFLE, OIL
    BAFFLE, OIL
  • 11
    10-67506 SCREW, ROCKER ARM
    SCREW, ROCKER ARM
  • 12
    54-72531 LIFTING EYE
    LIFTING EYE
  • 13
    10-48948 SCREW, LIFTING EYE - FRONT (7/17-7/8)
    SCREW, LIFTING EYE - FRONT (7/17-7/8)
  • 14
    13-32993 LOCKWASHER, LIFTING EYE SCREW
    LOCKWASHER, LIFTING EYE SCREW
  • 15
    675025 PUSH ROD, VALVE - STD.
    PUSH ROD, VALVE - STD.
  • 15
    400-2976A2 PUSH ROD, VALVE (.030 SHORTER)
    PUSH ROD, VALVE (.030 SHORTER)
  • 15
    675024 PUSH ROD, VALVE (.030 LONGER)
    PUSH ROD, VALVE (.030 LONGER)
  • 16
    92410 VALVE, EXHAUST - STD.
    VALVE, EXHAUST - STD.
  • 16
    92413 VALVE, EXHAUST (.015 O.S.)
    VALVE, EXHAUST (.015 O.S.)
  • 16
    92411 VALVE, INTAKE - STD.
    VALVE, INTAKE - STD.
  • 16
    92415 VALVE, INTAKE (.015 O.S.)
    VALVE, INTAKE (.015 O.S.)
  • 17
    24-91801 VALVE SPRING
    VALVE SPRING
  • 18
    26-75624 SEAL, VALVE STEM
    SEAL, VALVE STEM
  • 19
    92412 RETAINER, VALVE SPRING
    RETAINER, VALVE SPRING
  • 20
    28-547971 KEY, VALVE STEM
    KEY, VALVE STEM
  • 21
    32-89653 HOSE, SLEEVE TO EXHAUST MANIFOLD
    HOSE, SLEEVE TO EXHAUST MANIFOLD
  • 22
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 23
    41638A1 ROCKER, VALVE COVER
    ROCKER, VALVE COVER
  • 24
    36-807152 CAP, OIL FILLER
    CAP, OIL FILLER
  • 25
    10-65746 SCRE, ROCKER COVER ATTACHING (1/4-20 X 3/4")
    SCRE, ROCKER COVER ATTACHING (1/4-20 X 3/4")
  • 26
    13-22773 LOCKWASHER, ROCKER COVER SCREW
    LOCKWASHER, ROCKER COVER SCREW
  • 27
    27-73666 GASKET, ROCKER COVER
    GASKET, ROCKER COVER
  • 28
    54-72821 CLAMP, HIGH TENSION LEAD
    CLAMP, HIGH TENSION LEAD
  • 29
    16-73583 STUD, CLAMP TO CYLINDER HEAD (2 11/16")
    STUD, CLAMP TO CYLINDER HEAD (2 11/16")
