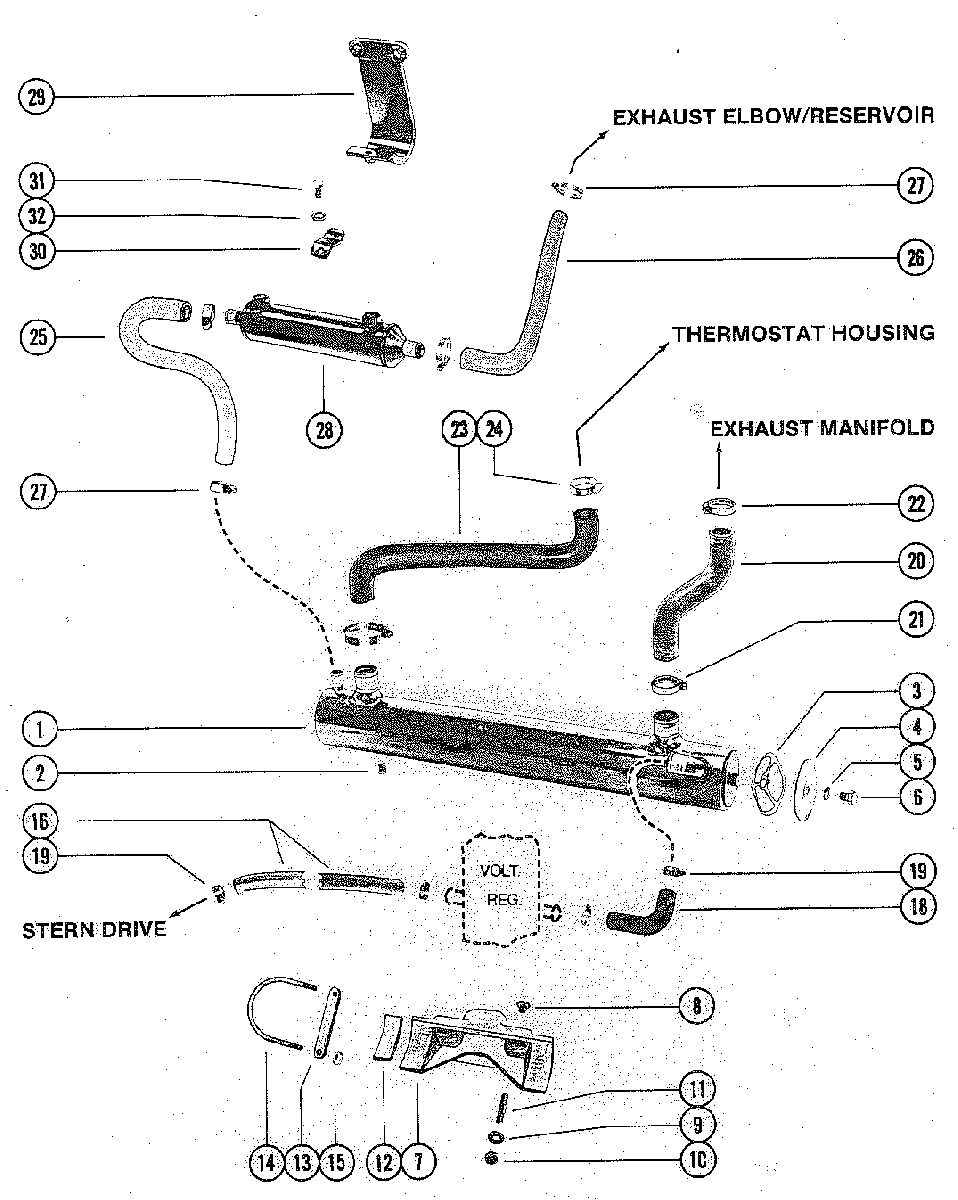

HEAT EXCHANGER AND POWER STEERING COOLER для Mercruiser - 485 (2 BBL.) MERCURY 224 I/L4 1980-1982 5685394 THRU 6218036

  • №
    Артикул
    Название
  • 1
    77319A1 HEAT EXCHANGER
    HEAT EXCHANGER
  • 2
    22-328022 PIPE PLUG, HEAT EXCHANGER
    PIPE PLUG, HEAT EXCHANGER
  • 3
    27-75450 GASKET, END CAP - HEAT EXCHANGER
    GASKET, END CAP - HEAT EXCHANGER
  • 4
    87924 PLATE, END CAP - HEAT EXCHANGER
    PLATE, END CAP - HEAT EXCHANGER
  • 5
    12-75451 WASHER, END CAP - HEAT EXCHANGER ATTACHING
    WASHER, END CAP - HEAT EXCHANGER ATTACHING
  • 6
    10-87192 SCREW, END CAP - HEAT EXCHANGER ATTACHING
    SCREW, END CAP - HEAT EXCHANGER ATTACHING
  • 7
    98618A1 BRACKET, HEAT EXCHANGER MOUNTING
    BRACKET, HEAT EXCHANGER MOUNTING
  • 8
    41024 MOUNT, VIBRATION ISOLATION
    MOUNT, VIBRATION ISOLATION
  • 9
    12-27025 WASHER, BRACKET STUD
    WASHER, BRACKET STUD
  • 10
    11-49253 NUT, BRACKET STUD
    NUT, BRACKET STUD
  • 11
    16-31632 STUD, BRACKET ATTACHING
    STUD, BRACKET ATTACHING
  • 12
    77223 PAD, MOUNTING BRACKET
    PAD, MOUNTING BRACKET
  • 13
    77225 STRAP, BRACKET TO HEAT EXCHANGER
    STRAP, BRACKET TO HEAT EXCHANGER
  • 14
    10-77403 "U" BOLT, BRACKET TO HEAT EXCHANGER
    "U" BOLT, BRACKET TO HEAT EXCHANGER
  • 15
    11-26484 NUT, "U" BOLT ATTACHING
    NUT, "U" BOLT ATTACHING
  • 16
    32-47642 HOSE
    FOR CORRECT HOSE, SEE MERCRUISER SERVICE BULLETIN 83-11
    HOSE
    FOR CORRECT HOSE, SEE MERCRUISER SERVICE BULLETIN 83-11
  • 18
    32-88132 HOSE
    FOR CORRECT HOSE, SEE MERCRUISER SERVICE BULLETIN 83-11
    HOSE
    FOR CORRECT HOSE, SEE MERCRUISER SERVICE BULLETIN 83-11
  • 19
    54-815504310 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 20
    32-89654 HOSE, HEAT EXCHANGER TO MANIFOLD
    HOSE, HEAT EXCHANGER TO MANIFOLD
  • 21
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 22
    54-815504228 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 23
    32-77245 HOSE, HEAT EXCHANGER TO THERMOSTAT HOUSING
    HOSE, HEAT EXCHANGER TO THERMOSTAT HOUSING
  • 24
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 25
    32-77332 HOSE, HEAT EXCHANGER TO EXHAUST ELBOW WITHOUT POWER STEERING
    HOSE, HEAT EXCHANGER TO EXHAUST ELBOW WITHOUT POWER STEERING
  • 27
    54-815504220 CLAMP, HOSE ATTACHING WITHOUT POWER STEERING
    CLAMP, HOSE ATTACHING WITHOUT POWER STEERING
  • 25
    32-89873 HOSE, HEAT EXCHANGER TO P/S OIL COOLER WITH POWER STEERING
    HOSE, HEAT EXCHANGER TO P/S OIL COOLER WITH POWER STEERING
  • 26
    32-89874 HOSE, P/S OIL COOLER TO EXHAUST ELBOW WITH POWER STEERING
    HOSE, P/S OIL COOLER TO EXHAUST ELBOW WITH POWER STEERING
  • 27
    54-815504220 CLAMP, HOSE ATTACHING WITH POWER STEERING
    CLAMP, HOSE ATTACHING WITH POWER STEERING
  • 28
    99356A1 COOLER, POWER STEERING WITH POWER STEERING
    COOLER, POWER STEERING WITH POWER STEERING
  • 29
    76210 BRACKET, POWER STEERING COOLER WITH POWER STEERING
    BRACKET, POWER STEERING COOLER WITH POWER STEERING
  • 30
    54-76209 CLAMP, POWER STEERING COOLER TO BRACKET WITH POWER STEERING
    CLAMP, POWER STEERING COOLER TO BRACKET WITH POWER STEERING
  • 31
    10-65746 SCREW, CLAMP ATTACHING WITH POWER STEERING
    SCREW, CLAMP ATTACHING WITH POWER STEERING
  • 32
    13-26992 LOCKWASHER, CLAMP ATTACHING WITH POWER STEERING
    LOCKWASHER, CLAMP ATTACHING WITH POWER STEERING
