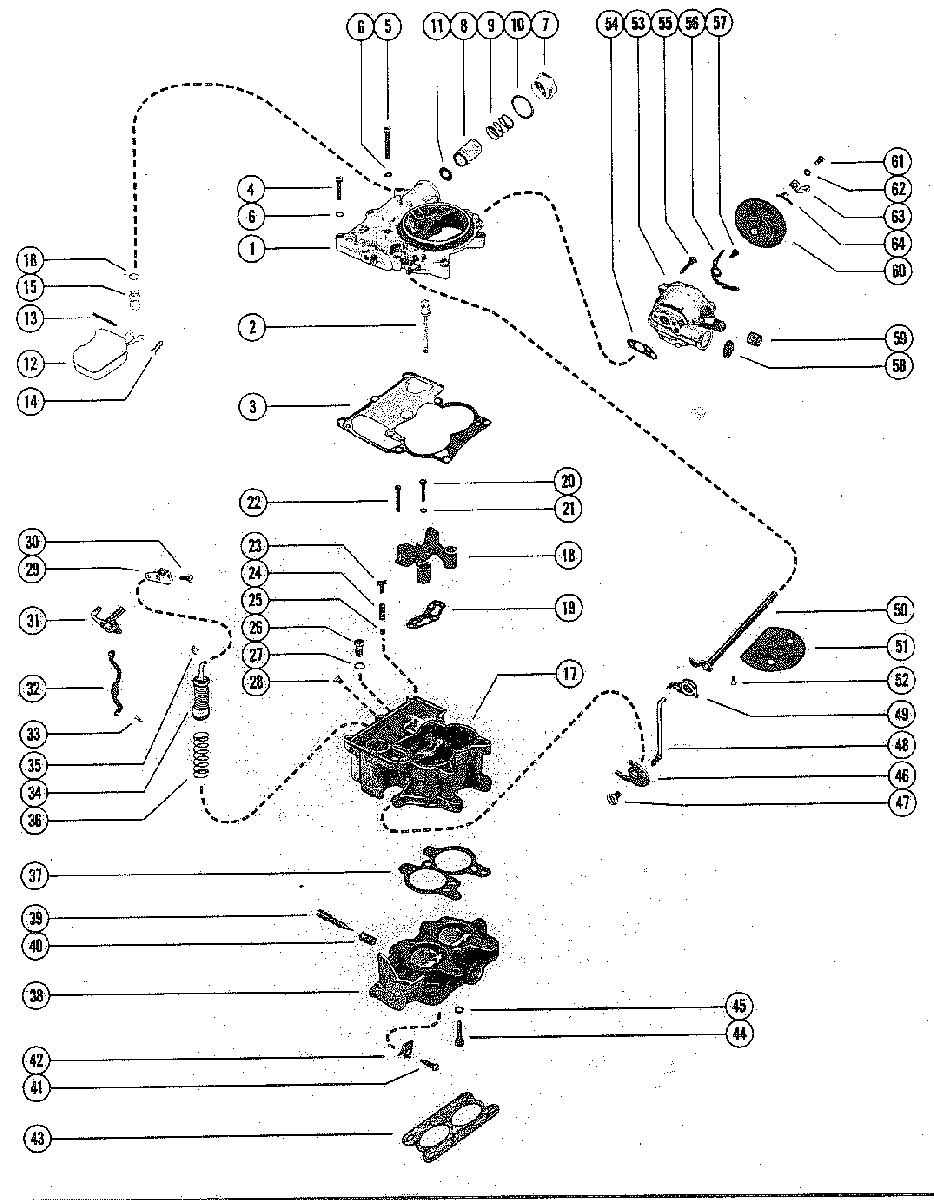

CARBURETOR ASSEMBLY для Mercruiser - 485 (2 BBL.) MERCURY 224 I/L4 1980-1982 5685394 THRU 6218036

  • №
    Артикул
    Название
  • -
    3310-860071A4 CARBURETOR ASSEMBLY, COMPLETE
    CARBURETOR ASSEMBLY, COMPLETE
  • 1
    N.S.S. AIR HORN (NOT SOLD SEPARATELY)
    AIR HORN (NOT SOLD SEPARATELY)
  • 2
    N.S.S. POWER PISTON ASSEMBLY (ROCHESTER #7009718)
    POWER PISTON ASSEMBLY (ROCHESTER #7009718)
  • 3
    90-8M0143356 GASKET, AIR HORN
    GASKET, AIR HORN
  • 4
    10-33043 SCREW, AIR HORN TO FLOAT BOWL (SHORT)
    SCREW, AIR HORN TO FLOAT BOWL (SHORT)
  • 5
    10-33048 SCREW, AIR HORN TO FLOAT BOWL (LONG)
    SCREW, AIR HORN TO FLOAT BOWL (LONG)
  • 6
    13-26996 LOCKWASHER, AIR HORN SCREW
    LOCKWASHER, AIR HORN SCREW
  • 7
    1397-3330 NUT, FUEL INLET - AIR HORN
    NUT, FUEL INLET - AIR HORN
  • 8
    35-53336Q FILTER, FUEL INLET - AIR HORN
    FILTER, FUEL INLET - AIR HORN
  • 9
    3302-9032 SPRING, FUEL INLET - AIR HORN
    SPRING, FUEL INLET - AIR HORN
  • 10
    90-8M0143356 GASKET, FUEL INLET NUT (LARGE)
    GASKET, FUEL INLET NUT (LARGE)
  • 11
    90-8M0143356 GASKET, FUEL IINLET FILTER (SMALL)
    GASKET, FUEL IINLET FILTER (SMALL)
  • 12
    1397-5837 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 13
    N.S.S. PIN, HINGE - FLOAT TO AIR HORN (ROCHESTER#7002081)
    PIN, HINGE - FLOAT TO AIR HORN (ROCHESTER#7002081)
  • 14
    90-8M0143356 CLIP, HINGE PIN
    CLIP, HINGE PIN
  • 15
    90-8M0143356 INLET NEEDLE AND SEAT ASSEMBLY
    INLET NEEDLE AND SEAT ASSEMBLY
  • 16
    90-8M0143356 GASKET, INLET NEEDLE AND SEAT
    GASKET, INLET NEEDLE AND SEAT
  • 17
    N.S.S. FLOAT BOWL ASSEMBLY (ROCHESTER#17052724)
    FLOAT BOWL ASSEMBLY (ROCHESTER#17052724)
  • 18
    N.S.S. VENTURI CLUSTER ASSEMBLY, FLOAT BOWL (NOT SOLD SEPARATELY)
    VENTURI CLUSTER ASSEMBLY, FLOAT BOWL (NOT SOLD SEPARATELY)
  • 19
    90-8M0143356 GASKET, VENTURI CLUSTER
    GASKET, VENTURI CLUSTER
  • 20
    N.S.S. SCREW, VENTURI CLUSTER TO FLLOAT BOWL (CENTER) - ROCHESTER#
    - ROCHESTER# 7009077
    SCREW, VENTURI CLUSTER TO FLLOAT BOWL (CENTER) - ROCHESTER#
    - ROCHESTER# 7009077
  • 21
    90-8M0143356 GASKET, VENTURI CLUSTER SCREW (CENTER)
    GASKET, VENTURI CLUSTER SCREW (CENTER)
  • 22
    N.S.S. SCREW, VENTURI CLUSTER TO FLOAT BOWL (OUTER) - ROCHESTER#70
    - ROCHESTER# 7045762
    SCREW, VENTURI CLUSTER TO FLOAT BOWL (OUTER) - ROCHESTER#70
    - ROCHESTER# 7045762
  • 23
    90-8M0143356 GUIDE, PUMP DISCHARGE - FLOAT BOWL
    GUIDE, PUMP DISCHARGE - FLOAT BOWL
  • 24
    90-8M0143356 SPRING, PUMP DISCHARGE - FLOAT BOWL
    SPRING, PUMP DISCHARGE - FLOAT BOWL
  • 25
    90-8M0143356 BALL, PUMP DISCHARGE - FLOAT BOWL
    BALL, PUMP DISCHARGE - FLOAT BOWL
  • 26
    90-8M0143356 POWER VALVE ASSEMBLY, FLOAT BOWL
    POWER VALVE ASSEMBLY, FLOAT BOWL
  • 27
    90-8M0143356 GASKET, POWER VALVE
    GASKET, POWER VALVE
  • 28
    1397-6365 JET, FLOAT BOWL (STANDARD)
    JET, FLOAT BOWL (STANDARD)
  • 29
    1397-2048 LEVER, PUMP - AIR HORN
    LEVER, PUMP - AIR HORN
  • 30
    10-33047 SCREW, AIR HORN PUMP LEVER
    SCREW, AIR HORN PUMP LEVER
  • 31
    N.S.S. PUMP SHAFT AND  LEVER ASSEMBLY, AIR HORN (ROCHESTER #7038788)
    PUMP SHAFT AND  LEVER ASSEMBLY, AIR HORN (ROCHESTER #7038788)
  • 32
    N.S.S. ROD, PUMP (ROCHESTER#7038799)
    ROD, PUMP (ROCHESTER#7038799)
  • 33
    90-8M0143356 CLIP, RETAINER - PUMP ROD
    CLIP, RETAINER - PUMP ROD
  • 34
    90-8M0143356 PUMP ASSEMBLY, FLOAT BOWL
    PUMP ASSEMBLY, FLOAT BOWL
  • 35
    90-8M0143356 CLIP, RETAINER - FLOAT BOWL PUMP
    CLIP, RETAINER - FLOAT BOWL PUMP
  • 36
    90-8M0143356 SPRIONG, PUMP RETURN - FLOAT BOWL
    SPRIONG, PUMP RETURN - FLOAT BOWL
  • 37
    90-8M0143356 GASKET, THROTTLE BODY
    GASKET, THROTTLE BODY
  • 38
    N.S.S. THROTTLE BODY ASSEMBLY (NOT SOLD SEPARATELY)
    THROTTLE BODY ASSEMBLY (NOT SOLD SEPARATELY)
  • 39
    90-8M0143356 IDLE ADJUSTING NEEDLE, THROTTLE BODY
    IDLE ADJUSTING NEEDLE, THROTTLE BODY
  • 40
    24-33050 SPRING, IDLE ADJUSTING NEEDLE
    SPRING, IDLE ADJUSTING NEEDLE
  • 41
    N.S.S. IDLE STOP SCREW, THROTTLE BODY (ROCHESTER#7031547)
    IDLE STOP SCREW, THROTTLE BODY (ROCHESTER#7031547)
  • 42
    54-39108 CLIP, IDLE STOP SCREW
    CLIP, IDLE STOP SCREW
  • 43
    27-8079821 GASKET, CARBURETOR FLANGE
    GASKET, CARBURETOR FLANGE
  • 44
    10-33052 SCREW, THROTTLE BODY TO FLOAT BOWL
    SCREW, THROTTLE BODY TO FLOAT BOWL
  • 45
    13-26992 LOCKWASHER, THROTTLE BODY SCREW
    LOCKWASHER, THROTTLE BODY SCREW
  • 46
    1397-8877 CAM, FAST IDLE - FLOAT BOWL
    CAM, FAST IDLE - FLOAT BOWL
  • 47
    10-33042 SCREW, FAST IDLE CAM TO FLOAT BOWL
    SCREW, FAST IDLE CAM TO FLOAT BOWL
  • 48
    N.S.S. ROD, CHOKE (ROCHESTER#7038821)
    ROD, CHOKE (ROCHESTER#7038821)
  • 49
    1397-4257 CHOKE LEVER AND COLLAR ASSEMBLY, CHOKE SHAFT
    CHOKE LEVER AND COLLAR ASSEMBLY, CHOKE SHAFT
  • 50
    1397-5840 CHOKE SHAFT ASSEMBLY
    CHOKE SHAFT ASSEMBLY
  • 51
    1397-5839 VALVE, CHOKE - CHOKE SHAFT
    VALVE, CHOKE - CHOKE SHAFT
  • 52
    N.S.S. SCREW, CHOKE VALVE TO CHOKE SHAFT (ROCHESTER#7007627)
    SCREW, CHOKE VALVE TO CHOKE SHAFT (ROCHESTER#7007627)
  • 53
    1397-5838 CHOKE HOUSING ASSEMBLY
    CHOKE HOUSING ASSEMBLY
  • 54
    90-8M0143356 GASKET, CHOKE HOUSING
    GASKET, CHOKE HOUSING
  • 55
    10-33053 SCREW, CHOKE HOUSING TO AIR HORN
    SCREW, CHOKE HOUSING TO AIR HORN
  • 56
    N.S.S. LEVER ASSEMBLY, CHOKE PISTON (ROCHESTER#7010051)
    LEVER ASSEMBLY, CHOKE PISTON (ROCHESTER#7010051)
  • 57
    10-33056 SCREW, CHOKE PISTON LEVER TO CHOKE HOUSING
    SCREW, CHOKE PISTON LEVER TO CHOKE HOUSING
  • 58
    N.S.S. WELCH PLUG, CHOKE HOUSING (ROCHESTER#7003135)
    WELCH PLUG, CHOKE HOUSING (ROCHESTER#7003135)
  • 59
    22-56772 PLUG, CHOKE HOUSING
    PLUG, CHOKE HOUSING
  • 60
    70125A02 COVER, CHOKE
    COVER, CHOKE
  • 61
    10-33047 SCREW, CHOKE COVER TO CHOKE HOUSING
    SCREW, CHOKE COVER TO CHOKE HOUSING
  • 62
    13-26995 LOCKWASHER, CHOKE COVER SCREW
    LOCKWASHER, CHOKE COVER SCREW
  • 63
    86-70879 TERMINAL, CHOKE COVER SCREW
    TERMINAL, CHOKE COVER SCREW
  • 64
    54-33036 RETAINER, CHOKE COVER SCREW
    RETAINER, CHOKE COVER SCREW
  • --
    1397-6367A1 OVERHAUL KIT
    OVERHAUL KIT
  • --
    N.S.S. POWER CARBURETOR KIT (ROCHESTER#7039315)
    POWER CARBURETOR KIT (ROCHESTER#7039315)
  • --
    1397-6367A1 GASKET KIT
    GASKET KIT
