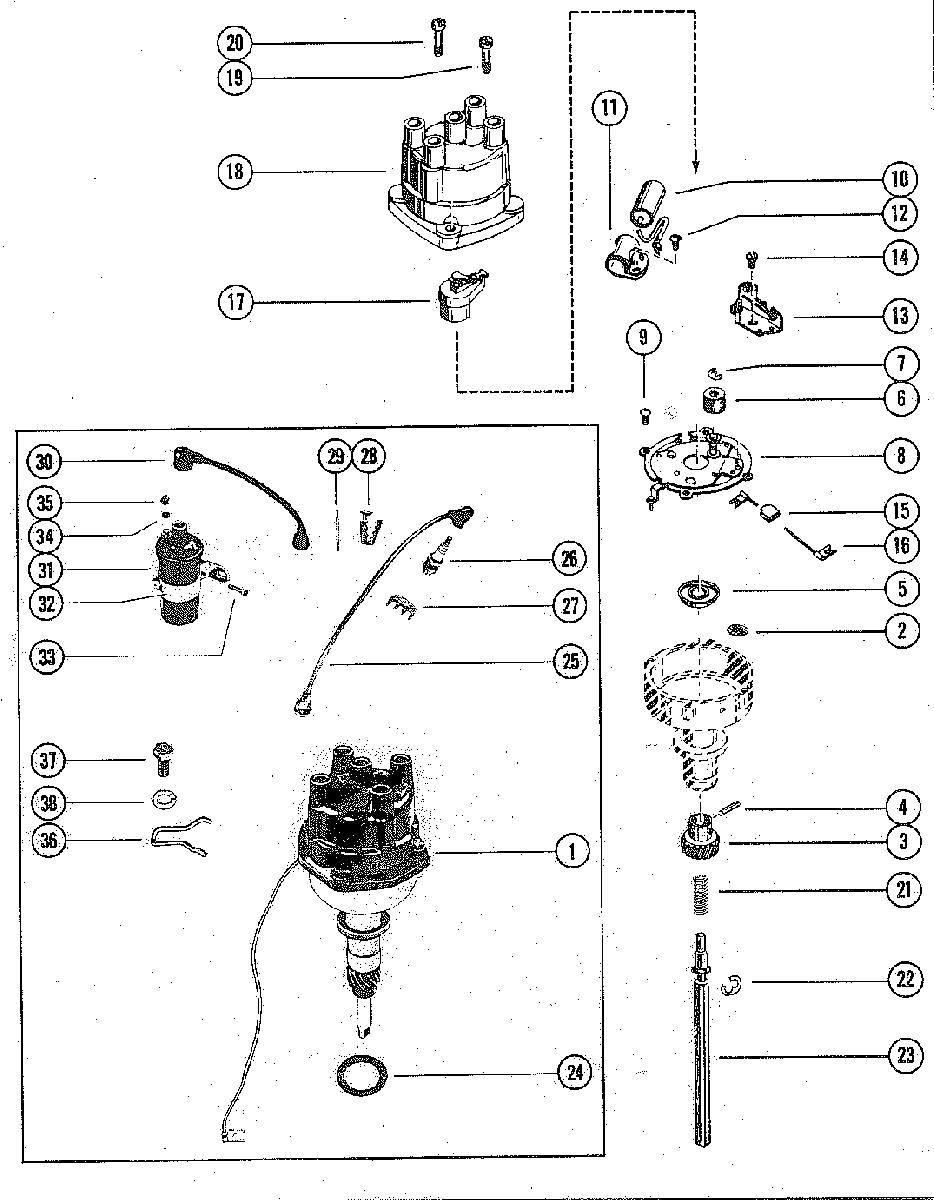

DISTRIBUTOR ASSEMBLY AND COIL для Mercruiser - 485 (2 BBL.) MERCURY 224 I/L4 1980-1982 5685394 THRU 6218036

  • №
    Артикул
    Название
  • 1
    19514A2 DISTRIBUTOR ASSEMBLY, COMPLETE
    DISTRIBUTOR ASSEMBLY, COMPLETE
  • 2
    62426 SCREEN, VENT - DISTRIBUTOR HOUSING
    SCREEN, VENT - DISTRIBUTOR HOUSING
  • 3
    43-735791 GEAR, DRIVE - MAIN SHAFT
    GEAR, DRIVE - MAIN SHAFT
  • 4
    17-29077 ROLL PIN, DISTRIBUTOR GEAR
    ROLL PIN, DISTRIBUTOR GEAR
  • 5
    26-58219 SEAL, HOUSING
    SEAL, HOUSING
  • 6
    33653 FELT, BREAKER CAM LUBRICATOR
    FELT, BREAKER CAM LUBRICATOR
  • 7
    72654 RETAINER, BREAKER CAM LUBRICATOR FELT
    RETAINER, BREAKER CAM LUBRICATOR FELT
  • 8
    33665 PLATE, MOUNTING - BREAKER ASSEMBLY AND CONDENSER
    PLATE, MOUNTING - BREAKER ASSEMBLY AND CONDENSER
  • 9
    10-20650 SCREW, MOUNTING PLATE TO PRIMARY HOUSING
    SCREW, MOUNTING PLATE TO PRIMARY HOUSING
  • -
    12-62425 WASHER, BREAKER PLATE SUPPORT SCREW
    WASHER, BREAKER PLATE SUPPORT SCREW
  • 10
    8M6001218 CONDENSER
    CONDENSER
  • 11
    48024 BRACKET, CONDENSER MOUNTING
    BRACKET, CONDENSER MOUNTING
  • 12
    10-48021 SCREW, CONDENSER BRACKET ATTACHING
    SCREW, CONDENSER BRACKET ATTACHING
  • 13
    34235T BREAKER ASSEMBLY, DISTRIBUTOR
    BREAKER ASSEMBLY, DISTRIBUTOR
  • 14
    10-33650 SCREW, BREAKER ASSEMBLY TO MOUNTING PLATE
    SCREW, BREAKER ASSEMBLY TO MOUNTING PLATE
  • 15
    25-33666 GROMMET, MOUNTING PLATE - PRIMARY WIRE
    GROMMET, MOUNTING PLATE - PRIMARY WIRE
  • 16
    33658 LEAD, PRIMARY
    LEAD, PRIMARY
  • 17
    8M6001251 ROTOR, DISTRIBUTOR
    ROTOR, DISTRIBUTOR
  • 18
    393-9459Q1 CAP, DISTRIBUTOR
    CAP, DISTRIBUTOR
  • 19
    10-33660 SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (8-32)
    SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (8-32)
  • 20
    10-33663 SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (10-32)
    SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (10-32)
  • 21
    24-73642 SPRING, DISTRIBUTOR SHAFT
    SPRING, DISTRIBUTOR SHAFT
  • 22
    53-73499 LOCK RING, DISTRIBUTOR SHAFT
    LOCK RING, DISTRIBUTOR SHAFT
  • 23
    73501 DRIVE SHAFT, DISTRIBUTOR TO OIL PUMP
    DRIVE SHAFT, DISTRIBUTOR TO OIL PUMP
  • 24
    27-344863 GASKET, DISTRIBUTOR
    GASKET, DISTRIBUTOR
  • 25
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION
    LEAD ASSEMBLY, HIGH TENSION
  • 26
    33-97389 SPARK PLUG (CHAMPION #RBL-9Y)
    SPARK PLUG (CHAMPION #RBL-9Y)
  • 27
    54676 RETAINER, HIGH TENSION LEADS
    RETAINER, HIGH TENSION LEADS
  • 28
    54-72821 CLAMP, HIGH TENSION LEADS
    CLAMP, HIGH TENSION LEADS
  • 29
    16-73583 STUD, HIGH TENSION LEAD CLAMP ATTACHING
    STUD, HIGH TENSION LEAD CLAMP ATTACHING
  • 30
    84-815297A45 WIRE, DISTRIBUTOR TO COIL
    WIRE, DISTRIBUTOR TO COIL
  • 31
    898253T24 COIL, IGNITION
    COIL, IGNITION
  • 32
    65970T1 BRACKET, IGNITION COIL MOUNTING
    BRACKET, IGNITION COIL MOUNTING
  • 33
    10-66652 SCREW, MOUNTING BRACEKT TO COIL
    SCREW, MOUNTING BRACEKT TO COIL
  • 34
    12-30164 WASHER, IGNITION COIL TERMINAL
    WASHER, IGNITION COIL TERMINAL
  • 34
    13-26996 LOCKWASHER, IGNITION COIL TERMINAL
    LOCKWASHER, IGNITION COIL TERMINAL
  • 35
    11-68219 NUT, IGNITION COIL TERMINAL
    NUT, IGNITION COIL TERMINAL
  • 36
    67511 CLAMP UNIT, DISTRIBUTOR
    CLAMP UNIT, DISTRIBUTOR
  • 37
    10-35386 SCREW, DISTRIBUTOR TO CYLINDER BLOCK
    SCREW, DISTRIBUTOR TO CYLINDER BLOCK
  • 38
    13-26993 LOCKWASHER, DISTRIBUTOR TO CYLINDER BLOCK SCREW
    LOCKWASHER, DISTRIBUTOR TO CYLINDER BLOCK SCREW
