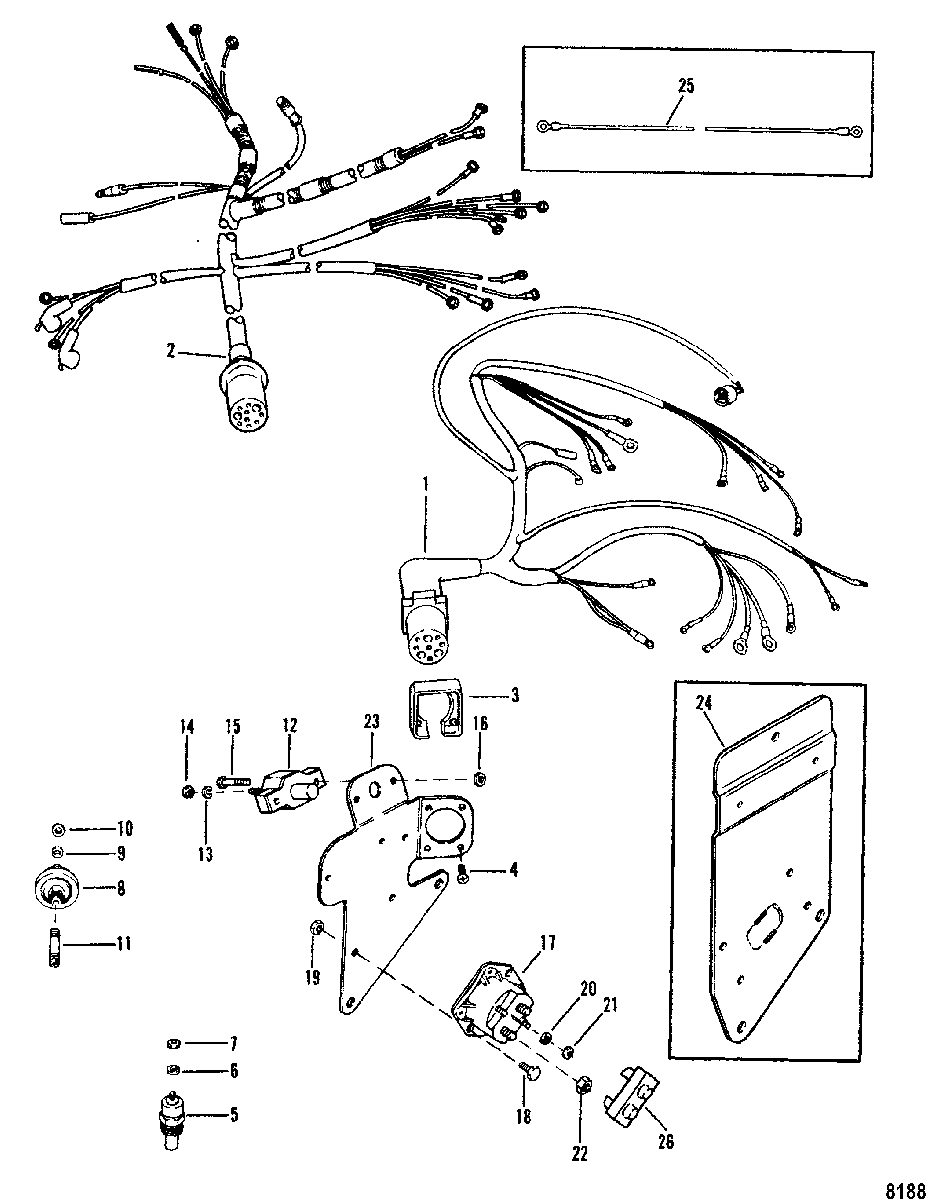

Wiring Harness and Electrical Components для Mercruiser - 3.0LX GM 181 I/L4 1990-1995 0C856559 THRU 0F603999
-
№АртикулНазвание
-
184-98422A10 HARNESS ASSEMBLY, Conventional IgnitionHARNESS ASSEMBLY, Conventional Ignition
-
284-98422A17 HARNESS ASSEMBLY, Digital Ignition - 3.0LHARNESS ASSEMBLY, Digital Ignition - 3.0L
-
284-98422A14 HARNESS ASSEMBLY, Digital Ignition - 3.0LXHARNESS ASSEMBLY, Digital Ignition - 3.0LX
-
284-806217A11 HARNESS ASSEMBLY, EST Ignition
SN# 0A000000 THRU 0F114599HARNESS ASSEMBLY, EST Ignition
SN# 0A000000 THRU 0F114599 -
284-806217A11 HARNESS ASSEMBLY, Engine Wiring, EST Ignition
SN# 0F114600 THRU 0Z999999HARNESS ASSEMBLY, Engine Wiring, EST Ignition
SN# 0F114600 THRU 0Z999999 -
N/S84-817374A01 CONNECTOR, Delco EST Distributor (Timing)CONNECTOR, Delco EST Distributor (Timing)
-
326079A2 PLATE KIT, Wire Harness Mount, ConventionalPLATE KIT, Wire Harness Mount, Conventional
-
410-15001 SCREW, (#8-16 x .875), IgnitionSCREW, (#8-16 x .875), Ignition
-
5806490T SENDER ASSEMBLY, Water TemperatureSENDER ASSEMBLY, Water Temperature
-
549734 SENDER ASSEMBLY, Water Temperature (Dual)SENDER ASSEMBLY, Water Temperature (Dual)
-
613-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
711-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
88M0068784 SENDER ASSEMBLY, Oil PressureSENDER ASSEMBLY, Oil Pressure
-
837293T SENDER ASSEMBLY, Oil Pressure (Dual)SENDER ASSEMBLY, Oil Pressure (Dual)
-
913-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1011-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1122-32974 FITTING, (.125-27) AdaptorFITTING, (.125-27) Adaptor
-
1288-11178A01 BREAKER, Circuit - 50 Ampere, 50 AmpBREAKER, Circuit - 50 Ampere, 50 Amp
-
1313-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1411-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1510-45862 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
1611-61356 NUT, (#10-32) Reduced HexNUT, (#10-32) Reduced Hex
-
1789-96158T SOLENOID, StarterSOLENOID, Starter
-
1810-98256 SCREW, (.250-28 x .500)SCREW, (.250-28 x .500)
-
1911-826709109 NUT, (.250-28)NUT, (.250-28)
-
2013-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2111-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
2211-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
2398428T3 BRACKET, Conventional/EST IgnitionBRACKET, Conventional/EST Ignition
-
24815414T BRACKET, Digital IgnitionBRACKET, Digital Ignition
-
2584-94227A2 RESISTOR WIRE KIT, To Replace Resistor WireRESISTOR WIRE KIT, To Replace Resistor Wire
-
2685-97861 INSULATORINSULATOR
