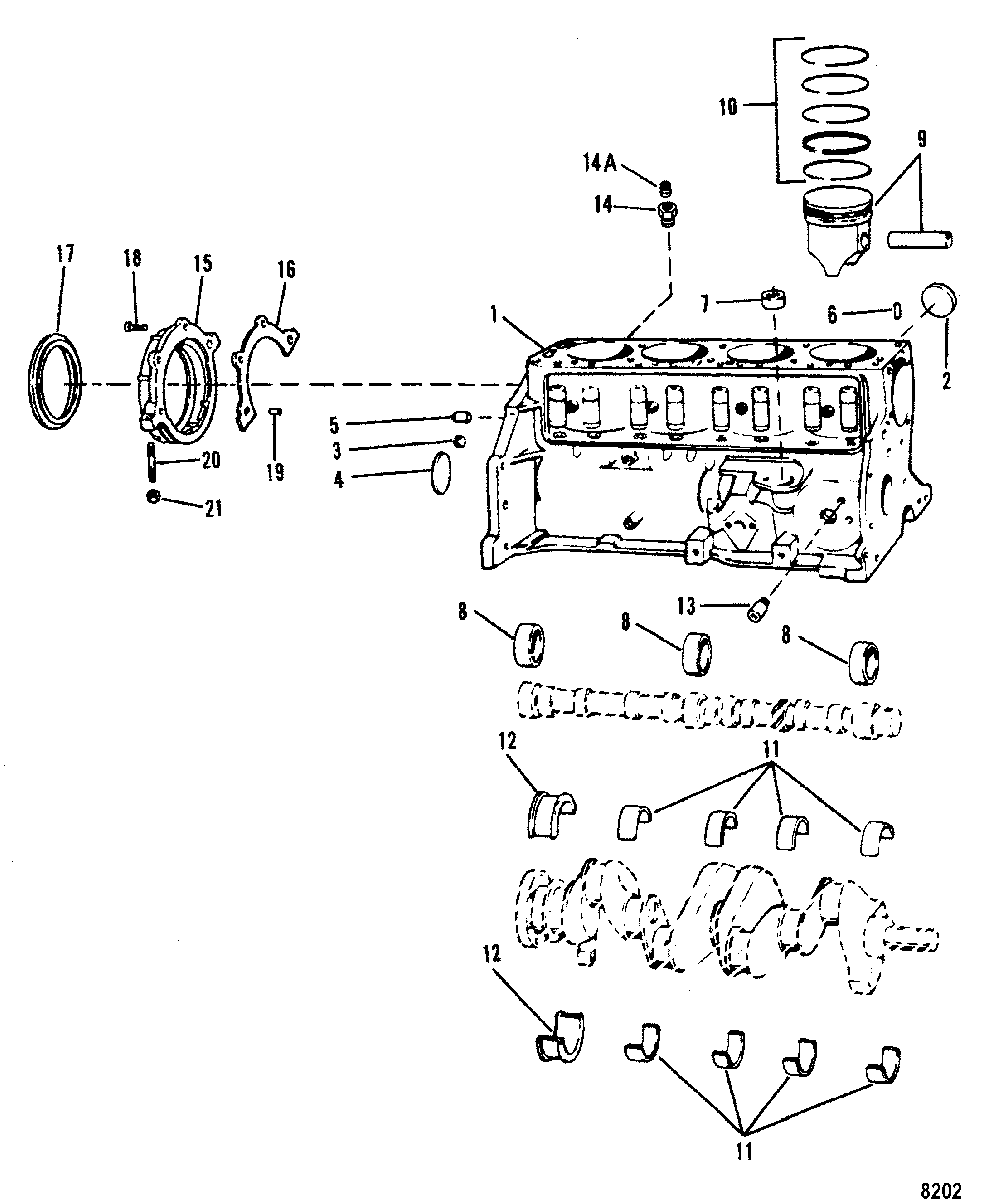

Cylinder Block, Piston and Bearings для Mercruiser - 3.0LX GM 181 I/L4 1990-1995 0C856559 THRU 0F603999

  • №
    Артикул
    Название
  • 1
    839-810839 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    19-34270 EXPANSION PLUG, (1.625)
    EXPANSION PLUG, (1.625)
  • 2
    19-34271 EXPANSION PLUG, (2.00)
    EXPANSION PLUG, (2.00)
  • 3
    19-37531 PLUG
    PLUG
  • 4
    22-72640 PLUG, Expansion
    PLUG, Expansion
  • 5
    22-36373 PLUG, (.375-18 x .42), Pipe
    PLUG, (.375-18 x .42), Pipe
  • 6
    17-35465 PIN, Dowel (.312), Dowel
    PIN, Dowel (.312), Dowel
  • 7
    23-35168 BEARING
    BEARING
  • 8
    23-43293T BEARING SET
    BEARING SET
  • 9
    733-810852 PISTON ASSEMBLY
    (Standard)
    PISTON ASSEMBLY
    (Standard)
  • 9
    733-810853T PISTON ASSEMBLY
    (.020 Over Size)
    PISTON ASSEMBLY
    (.020 Over Size)
  • 10
    39-17464 RING SET, Piston (Standard)
    (Standard)
    RING SET, Piston (Standard)
    (Standard)
  • 10
    39-66217 RING, Piston
    (.020 Over Size)
    RING, Piston
    (.020 Over Size)
  • 11/12
    23-818469001 BEARING SET
    (Standard) (References 11 And 12)
    BEARING SET
    (Standard) (References 11 And 12)
  • 11/12
    23-818470001 BEARING SET
    (.001 USA) (References 11 And 12)
    BEARING SET
    (.001 USA) (References 11 And 12)
  • 11/12
    23-818471001 BEARING SET
    (.010 USA) (References 11 And 12)
    BEARING SET
    (.010 USA) (References 11 And 12)
  • 11/12
    23-818472 BEARING SET
    (.020 USA) (References 11 And 12)
    BEARING SET
    (.020 USA) (References 11 And 12)
  • 13
    34543 VALVE
    VALVE
  • 14
    22-48556 BUSHING , Reducer (.250 To .125)
    BUSHING , Reducer (.250 To .125)
  • 14A
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 15
    14239 RETAINER, Rear
    RETAINER, Rear
  • 16
    27-881715 GASKET
    GASKET
  • 17
    26-8M0077606 SEAL, Oil, Rear
    SEAL, Oil, Rear
  • 18
    10-810844 BOLT
    BOLT
  • 19
    17-14263 PIN, Dowel, Dowel
    PIN, Dowel, Dowel
  • 20
    16-11989 STUD, (.312-18 x 1.6718)
    STUD, (.312-18 x 1.6718)
  • 21
    11-810847 NUT, Oil Pan Stud
    NUT, Oil Pan Stud
  • -
    805047A1 LONG BLOCK ASSEMBLY (3.0L)
    (See Note)
    LONG BLOCK ASSEMBLY (3.0L)
    (See Note)
  • -
    8M0128770 LONG BLOCK ASSEMBLY (3.0LX)
    (See Note)
    LONG BLOCK ASSEMBLY (3.0LX)
    (See Note)
  • -
    27-810846A05 GASKET SET, Overhaul
    GASKET SET, Overhaul
  • -
    92-809826 SEALER, Red RTV
    SEALER, Red RTV
  • -
    92-34227Q02 SEALING COMPOUND, (16 Ounce)
    SEALING COMPOUND, (16 Ounce)
