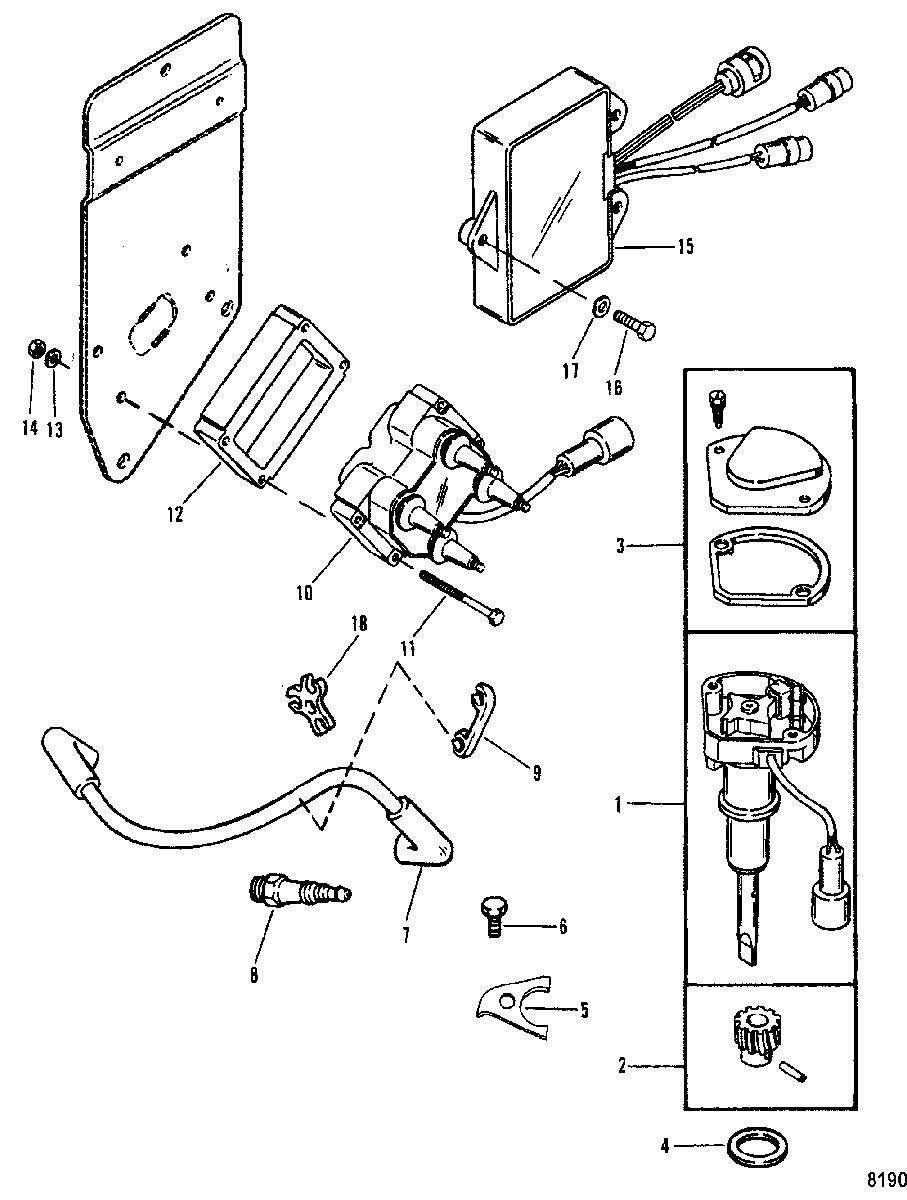

Digital Ignition Components для Mercruiser - 3.0LX GM 181 I/L4 1990-1995 0C856559 THRU 0F603999

  • №
    Артикул
    Название
  • 1
    18813T SENSOR, Motion
    SENSOR, Motion
  • 2
    43-814187 GEAR KIT
    GEAR KIT
  • 3
    814188 CAP KIT
    CAP KIT
  • 4
    27-87707 GASKET
    GASKET
  • 5
    72624 CLAMP
    CLAMP
  • 6
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 7
    84-816761Q13 SPARK PLUG WIRE KIT
    SPARK PLUG WIRE KIT
  • 8
    33-898264001 SPARK PLUG
    (3.0L)
    SPARK PLUG
    (3.0L)
  • 8
    33-816336Q SPARK PLUG
    (3.0LX)
    SPARK PLUG
    (3.0LX)
  • 9
    54676 RETAINER, Two Wire
    RETAINER, Two Wire
  • 10
    15071T COIL, Ignition
    COIL, Ignition
  • 11
    10-46367 SCREW, (.190-32 x 2.500)
    SCREW, (.190-32 x 2.500)
  • 12
    17561T SPACER
    SPACER
  • 13
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel
    WASHER, (.192 x .375 x .0312) Stainless Steel
  • 14
    11-61356 NUT, (#10-32) Reduced Hex
    NUT, (#10-32) Reduced Hex
  • 15
    18811T1 CONTROL ASSEMBLY, Ignition
    (3.0L)
    CONTROL ASSEMBLY, Ignition
    (3.0L)
  • 15
    18811T2 CONTROL ASSEMBLY, Ignition
    (3.0LX)
    CONTROL ASSEMBLY, Ignition
    (3.0LX)
  • 16
    10-815411 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 17
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 18
    32783 RETAINER, Three Wire
    RETAINER, Three Wire
