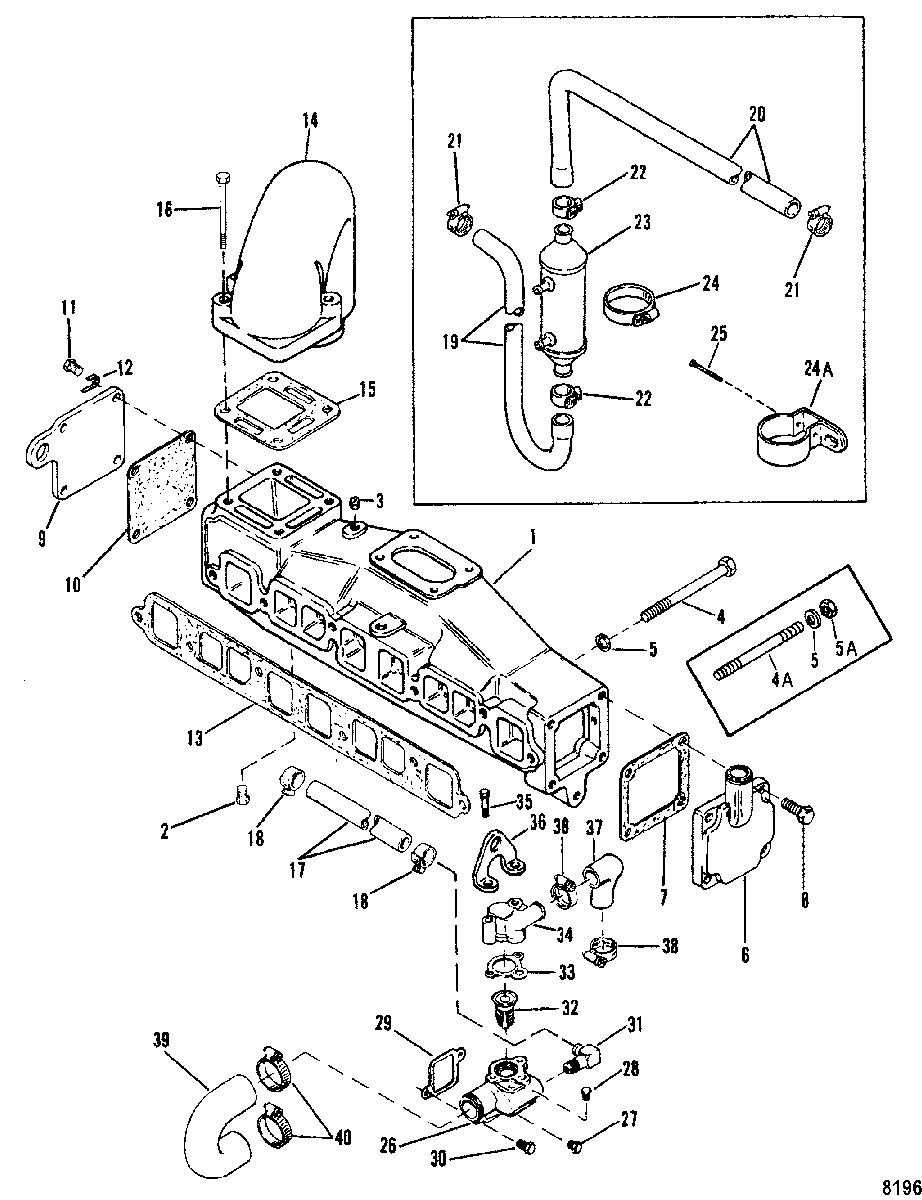

Exhaust Manifold and Water System(With End Caps) 3.0L Only для Mercruiser - 3.0LX GM 181 I/L4 1990-1995 0C856559 THRU 0F603999
-
№АртикулНазвание
-
1860235A03 MANIFOLD ASSEMBLY, ExhaustMANIFOLD ASSEMBLY, Exhaust
-
222-328022 PLUG, Pipe (.125-27)PLUG, Pipe (.125-27)
-
322-36382 FITTING, (.250-18 x .62) BrassFITTING, (.250-18 x .62) Brass
-
410-52143 SCREW, (.375-16 x 4.750)
(Old Design)SCREW, (.375-16 x 4.750)
(Old Design) -
512-20553 WASHER, (.406 x .734 x .063)
(Old Design)WASHER, (.406 x .734 x .063)
(Old Design) -
410-53728 SCREW, (.375-16 x 4.75)
(New Design)SCREW, (.375-16 x 4.75)
(New Design) -
4A16-8M2010364 STUD
(New Design)STUD
(New Design) -
512-20553 WASHER, (.406 x .734 x .063)
(New Design)WASHER, (.406 x .734 x .063)
(New Design) -
5A11-46335 NUT, (.375-24)
(New Design)NUT, (.375-24)
(New Design) -
660252A2 END CAP, Connector/FrontEND CAP, Connector/Front
-
727-480431 GASKETGASKET
-
810-35386 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
9805629A1 END CAP/LIFTING EYE, RearEND CAP/LIFTING EYE, Rear
-
1027-807218 GASKETGASKET
-
1110-824941 SCREW, (.312-18 x .750)SCREW, (.312-18 x .750)
-
1254-47483 J CLIPJ CLIP
-
1327-96429 GASKETGASKET
-
1412076A2 ELBOW ASSEMBLY, ExhaustELBOW ASSEMBLY, Exhaust
-
1527-997772 GASKETGASKET
-
1610-668631 SCREW, (.375-16 x 2.500)SCREW, (.375-16 x 2.500)
-
1732-8M0062634 HOSE (.75 Inch I.D.)
(With Out Power Steering)HOSE (.75 Inch I.D.)
(With Out Power Steering) -
1854-815504412 CLAMP, Worm Gear
(With Out Power Steering)CLAMP, Worm Gear
(With Out Power Steering) -
1932-815413 HOSE, Cooler to Drive UnitHOSE, Cooler to Drive Unit
-
2032-815412 HOSE, Cooler to HousingHOSE, Cooler to Housing
-
2154-815504220 CLAMP, Worm Gear
(With Power Steering)CLAMP, Worm Gear
(With Power Steering) -
2254-815504412 CLAMP, Worm Gear
(With Power Steering)CLAMP, Worm Gear
(With Power Steering) -
2399356A1 COOLER ASSEMBLY, Oil
(With Power Steering)COOLER ASSEMBLY, Oil
(With Power Steering) -
2454-815504336 CLAMP, Worm Gear, Old Design
(With Power Steering)CLAMP, Worm Gear, Old Design
(With Power Steering) -
24A65970T1 BRACKET, New Design
(With Power Steering)BRACKET, New Design
(With Power Steering) -
2510-41408 SCREW, (#10-32 x 1.50), New Design
(With Power Steering)SCREW, (#10-32 x 1.50), New Design
(With Power Steering) -
26861493A07 HOUSING ASSEMBLYHOUSING ASSEMBLY
-
2722-32803 PLUG, Pipe (.375-18) BrassPLUG, Pipe (.375-18) Brass
-
2822-328022 PLUG, Pipe (.125-27)PLUG, Pipe (.125-27)
-
2927-8146801 GASKETGASKET
-
3010-90059 SCREW, (.375-16 x .875)SCREW, (.375-16 x .875)
-
3010-90187 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
3122-807705 ELBOWELBOW
-
3259078 THERMOSTATTHERMOSTAT
-
3327-475901 GASKETGASKET
-
34861493A07 COVER ASSEMBLYCOVER ASSEMBLY
-
3510-79654 SCREW, (.312-18 x 2.380)SCREW, (.312-18 x 2.380)
-
3654-805628T LIFTING EYELIFTING EYE
-
3732-52481 HOSE, Housing to End Cap/ConnectorHOSE, Housing to End Cap/Connector
-
3854-815504220 CLAMP, Worm GearCLAMP, Worm Gear
-
3932-8M0071007 HOSE, Housing to Water PumpHOSE, Housing to Water Pump
-
4054-815504232 CLAMP, Worm Gear (2.50 Diameter)CLAMP, Worm Gear (2.50 Diameter)
