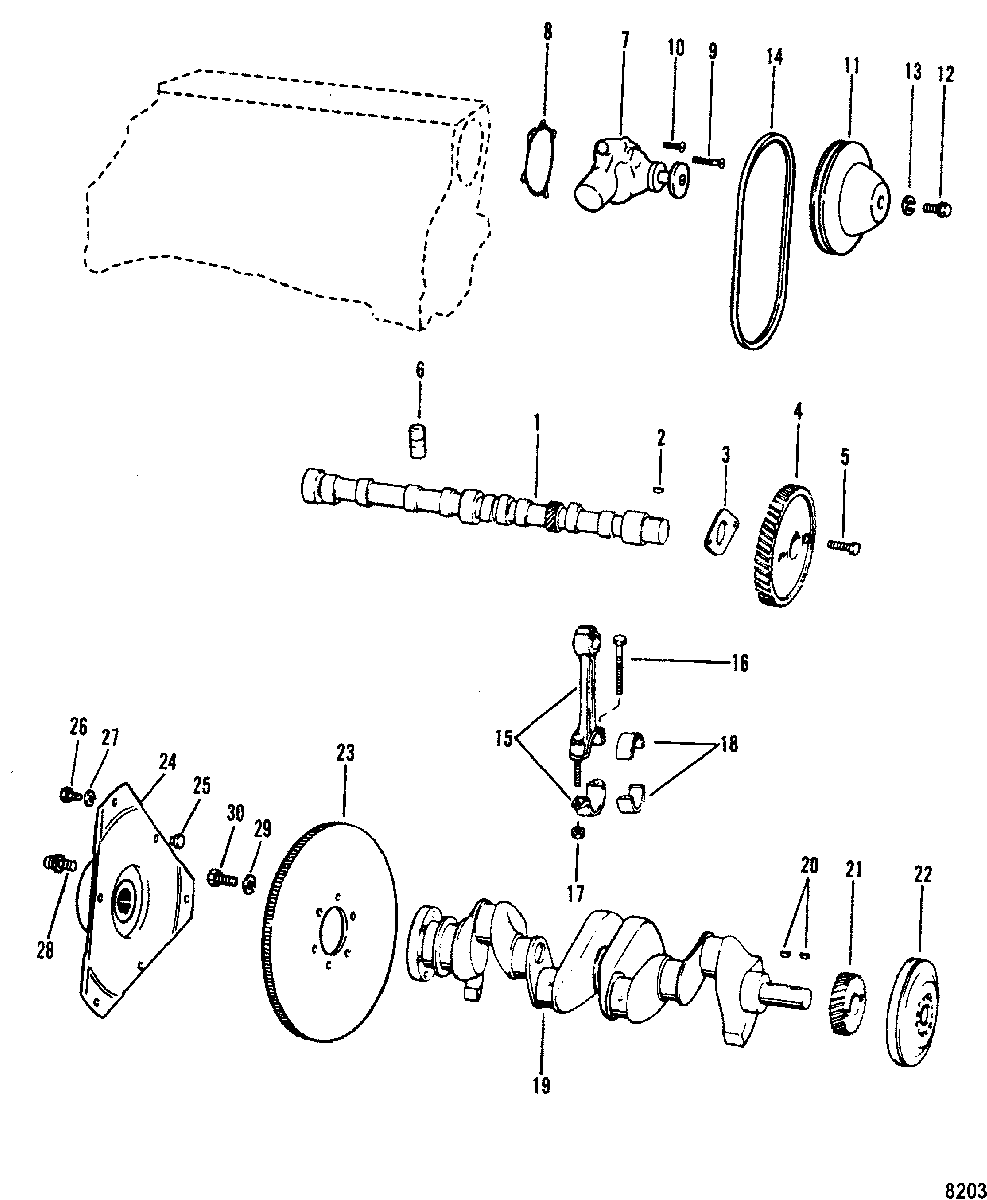

Crankshaft, Camshaft, Water Pump для Mercruiser - 3.0LX GM 181 I/L4 1990-1995 0C856559 THRU 0F603999

  • №
    Артикул
    Название
  • 1
    424-3864 CAMSHAFT
    CAMSHAFT
  • 2
    28-34466 KEY
    KEY
  • 3
    23-34469 BEARING
    BEARING
  • 4
    43-46745 GEAR
    GEAR
  • 5
    10-8M0040582 SCREW
    SCREW
  • 6
    72638 LIFTER
    LIFTER
  • 7
    46-8M0113733 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 8
    27-879150138 GASKET, Water Pump
    GASKET, Water Pump
  • 9
    10-34471 SCREW, (.312-18 x 1.500)
    SCREW, (.312-18 x 1.500)
  • 10
    10-34505 SCREW, (.312-18 x .875)
    SCREW, (.312-18 x .875)
  • 11
    52349 PULLEY
    (1 Groove)
    PULLEY
    (1 Groove)
  • 11
    73483T PULLEY
    (3 Groove)
    PULLEY
    (3 Groove)
  • 12
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 13
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 14
    57-64032Q1 V BELT
    (Use with 1 Groove Pulley)
    V BELT
    (Use with 1 Groove Pulley)
  • 14
    57-69143Q V BELT
    (Use With Three Groove Pulley)
    V BELT
    (Use With Three Groove Pulley)
  • 15
    613-3817T CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 16
    10-52269 BOLT
    BOLT
  • 17
    11-37493 NUT, (.375-24)
    NUT, (.375-24)
  • 18
    23-85701 BEARING
    (Pair - Standard)
    BEARING
    (Pair - Standard)
  • 18
    23-85702 BEARING
    (Pair - .001 USA)
    BEARING
    (Pair - .001 USA)
  • 18
    23-85703 BEARING
    (Pair - .002 USA)
    BEARING
    (Pair - .002 USA)
  • 18
    23-85704 BEARING
    (Pair - .010 USA)
    BEARING
    (Pair - .010 USA)
  • 18
    23-85705 BEARING
    (Pair - .020 USA)
    BEARING
    (Pair - .020 USA)
  • 19
    423-810842T CRANKSHAFT
    CRANKSHAFT
  • 20
    28-34466 KEY
    KEY
  • 21
    43-46743 TIMING GEAR
    TIMING GEAR
  • 22
    8M0086946 BALANCER, Harmonic
    BALANCER, Harmonic
  • 23
    200-8M0084188 FLYWHEEL
    SN# 0A000000 THRU 0D831100
    FLYWHEEL
    SN# 0A000000 THRU 0D831100
  • 23
    200-8M0084188 FLYWHEEL
    SN# 0D831101 THRU 0Z999999
    FLYWHEEL
    SN# 0D831101 THRU 0Z999999
  • 24
    12632A7 COUPLING ASSEMBLY, Engine
    SN# 0A000000 THRU 0F000000
    COUPLING ASSEMBLY, Engine
    SN# 0A000000 THRU 0F000000
  • 25
    269011 BUMPER, Rubber
    SN# 0A000000 THRU 0F000000
    BUMPER, Rubber
    SN# 0A000000 THRU 0F000000
  • 26
    10-14883 SCREW, (.375-16 x 1.12)
    SN# 0A000000 THRU 0F000000
    SCREW, (.375-16 x 1.12)
    SN# 0A000000 THRU 0F000000
  • 27
    12-20572 WASHER, (.390 x .750 x .093)
    SN# 0A000000 THRU 0F000000
    WASHER, (.390 x .750 x .093)
    SN# 0A000000 THRU 0F000000
  • 24
    12632A6 COUPLING ASSEMBLY, Engine
    SN# 0F000001 THRU 0Z999999
    COUPLING ASSEMBLY, Engine
    SN# 0F000001 THRU 0Z999999
  • 25
    269011 BUMPER, Rubber
    SN# 0F000001 THRU 0Z999999
    BUMPER, Rubber
    SN# 0F000001 THRU 0Z999999
  • 26
    10-14883 SCREW, (.375-16 x 1.12)
    SN# 0F000001 THRU 0Z999999
    SCREW, (.375-16 x 1.12)
    SN# 0F000001 THRU 0Z999999
  • 27
    12-20572 WASHER, (.390 x .750 x .093)
    SN# 0F000001 THRU 0Z999999
    WASHER, (.390 x .750 x .093)
    SN# 0F000001 THRU 0Z999999
  • 28
    22-74036 FITTING, Grease
    SN# 0F000001 THRU 0Z999999
    FITTING, Grease
    SN# 0F000001 THRU 0Z999999
  • 29
    13-39131 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 30
    10-845757 SCREW, (.437-20 x 1.00)
    SCREW, (.437-20 x 1.00)
