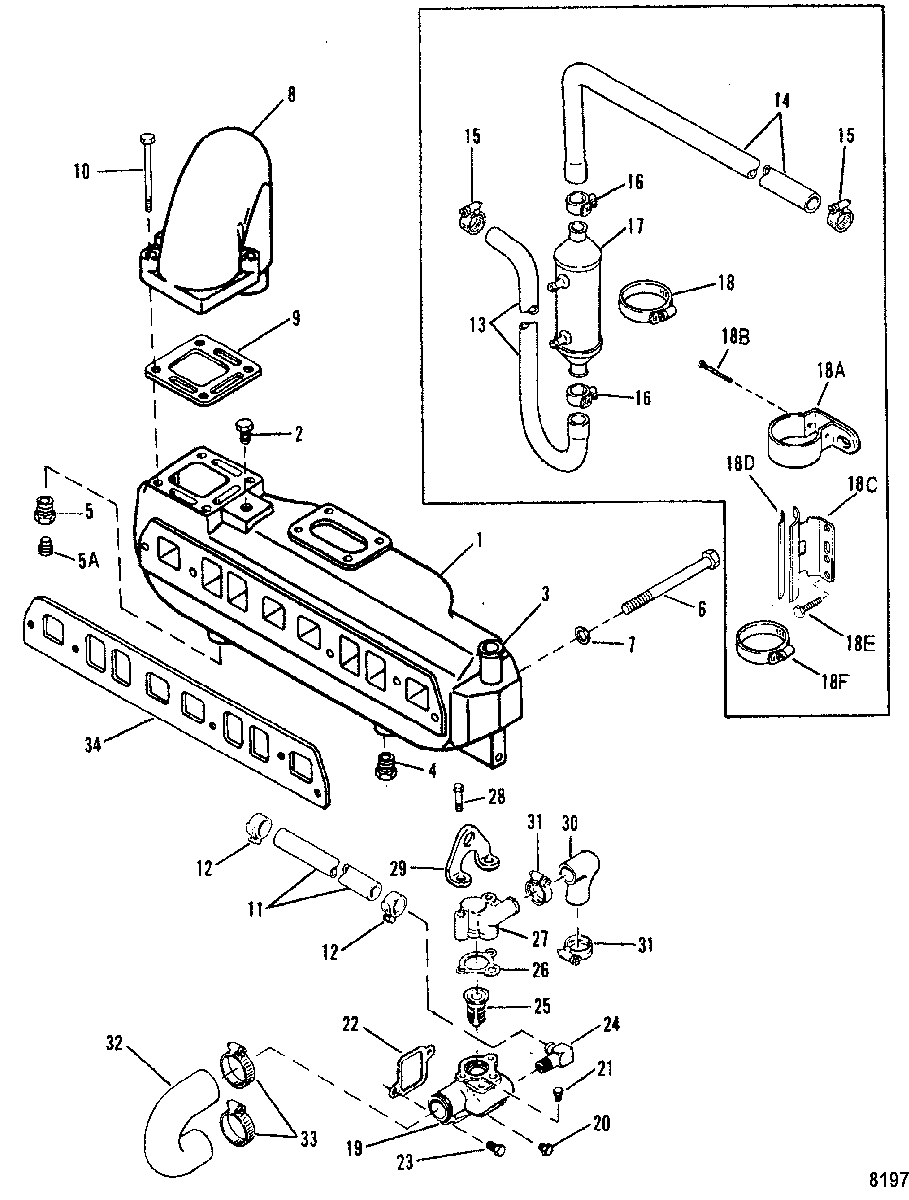

Exhaust Manifold and Water System(One Piece Manifold) для Mercruiser - 3.0LX GM 181 I/L4 1990-1995 0C856559 THRU 0F603999

  • №
    Артикул
    Название
  • 1
    860235A03 MANIFOLD ASSEMBLY, Exhaust
    (3.0L)
    MANIFOLD ASSEMBLY, Exhaust
    (3.0L)
  • 1
    815560A7 MANIFOLD ASSEMBLY, Exhaust
    (3.0LX ) SN# 0F426999 & Below
    MANIFOLD ASSEMBLY, Exhaust
    (3.0LX ) SN# 0F426999 & Below
  • 2
    22-36382 FITTING, (.250-18 x .62) Brass
    FITTING, (.250-18 x .62) Brass
  • 3
    23-52020 SLEEVE, Hose
    SLEEVE, Hose
  • 4
    22-416223 PLUG, (3/4-14)
    PLUG, (3/4-14)
  • 5
    22-15946 BUSHING
    BUSHING
  • 5A
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 6
    10-53728 SCREW, (.375-16 x 4.75)
    SCREW, (.375-16 x 4.75)
  • 6
    10-52143 SCREW, (.375-16 x 4.750)
    SCREW, (.375-16 x 4.750)
  • 7
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 8
    12076A2 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 9
    27-997772 GASKET
    GASKET
  • 10
    10-668631 SCREW, (.375-16 x 2.500)
    SCREW, (.375-16 x 2.500)
  • 11
    32-8M0062634 HOSE, Inlet (.75 Inch I.D.)
    (With Out Power Steering)
    HOSE, Inlet (.75 Inch I.D.)
    (With Out Power Steering)
  • 12
    54-815504412 CLAMP, Worm Gear
    (With Out Power Steering)
    CLAMP, Worm Gear
    (With Out Power Steering)
  • 13
    32-815413 HOSE, Cooler to Drive Unit
    (With Power Steering)
    HOSE, Cooler to Drive Unit
    (With Power Steering)
  • 14
    32-815412 HOSE, Cooler to Housing
    (With Power Steering)
    HOSE, Cooler to Housing
    (With Power Steering)
  • 14
    32-806433 HOSE, Use With DHB Power Steering
    (With Power Steering)
    HOSE, Use With DHB Power Steering
    (With Power Steering)
  • 15
    54-815504220 CLAMP, Worm Gear
    (With Power Steering)
    CLAMP, Worm Gear
    (With Power Steering)
  • 16
    54-815504412 CLAMP, Worm Gear
    (With Power Steering)
    CLAMP, Worm Gear
    (With Power Steering)
  • 17
    99356A1 COOLER ASSEMBLY, Oil
    (With Power Steering)
    COOLER ASSEMBLY, Oil
    (With Power Steering)
  • 18
    54-815504336 CLAMP, Worm Gear, Old Design
    (With Power Steering)
    CLAMP, Worm Gear, Old Design
    (With Power Steering)
  • 18A
    65970T1 BRACKET, New Design #1
    (With Power Steering)
    BRACKET, New Design #1
    (With Power Steering)
  • 18B
    10-41408 SCREW, (#10-32 x 1.50), New Design #1
    (With Power Steering)
    SCREW, (#10-32 x 1.50), New Design #1
    (With Power Steering)
  • 18C
    805546A2 BRACKET, New Design #2
    (With Power Steering)
    BRACKET, New Design #2
    (With Power Steering)
  • 18D
    772233 PAD, New Design #2
    (With Power Steering)
    PAD, New Design #2
    (With Power Steering)
  • 18E
    10-816585 SCREW, (.375-18 x .875), New Design #2
    (With Power Steering)
    SCREW, (.375-18 x .875), New Design #2
    (With Power Steering)
  • 18F
    54-815504232 CLAMP, Worm Gear (2.50 Diameter), New Design #2
    (With Power Steering)
    CLAMP, Worm Gear (2.50 Diameter), New Design #2
    (With Power Steering)
  • 19
    861493A07 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 20
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 21
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 22
    27-8146801 GASKET
    GASKET
  • 23
    10-90059 SCREW, (.375-16 x .875)
    SCREW, (.375-16 x .875)
  • 23
    10-90187 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 24
    22-807705 ELBOW
    ELBOW
  • 25
    59078 THERMOSTAT
    THERMOSTAT
  • 26
    27-475901 GASKET
    GASKET
  • 27
    861493A07 COVER ASSEMBLY
    COVER ASSEMBLY
  • 28
    10-79654 SCREW, (.312-18 x 2.380)
    SCREW, (.312-18 x 2.380)
  • 29
    54-805628T LIFTING EYE
    LIFTING EYE
  • 30
    32-52481 HOSE
    HOSE
  • 30
    32-806993 HOSE, Use With DHB Power Steering
    HOSE, Use With DHB Power Steering
  • 31
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 32
    32-8M0071007 HOSE, Housing to Water Pump
    HOSE, Housing to Water Pump
  • 33
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 34
    27-96429 GASKET
    (3.0L)
    GASKET
    (3.0L)
  • 34
    27-815528 GASKET
    (3.0LX)
    GASKET
    (3.0LX)
