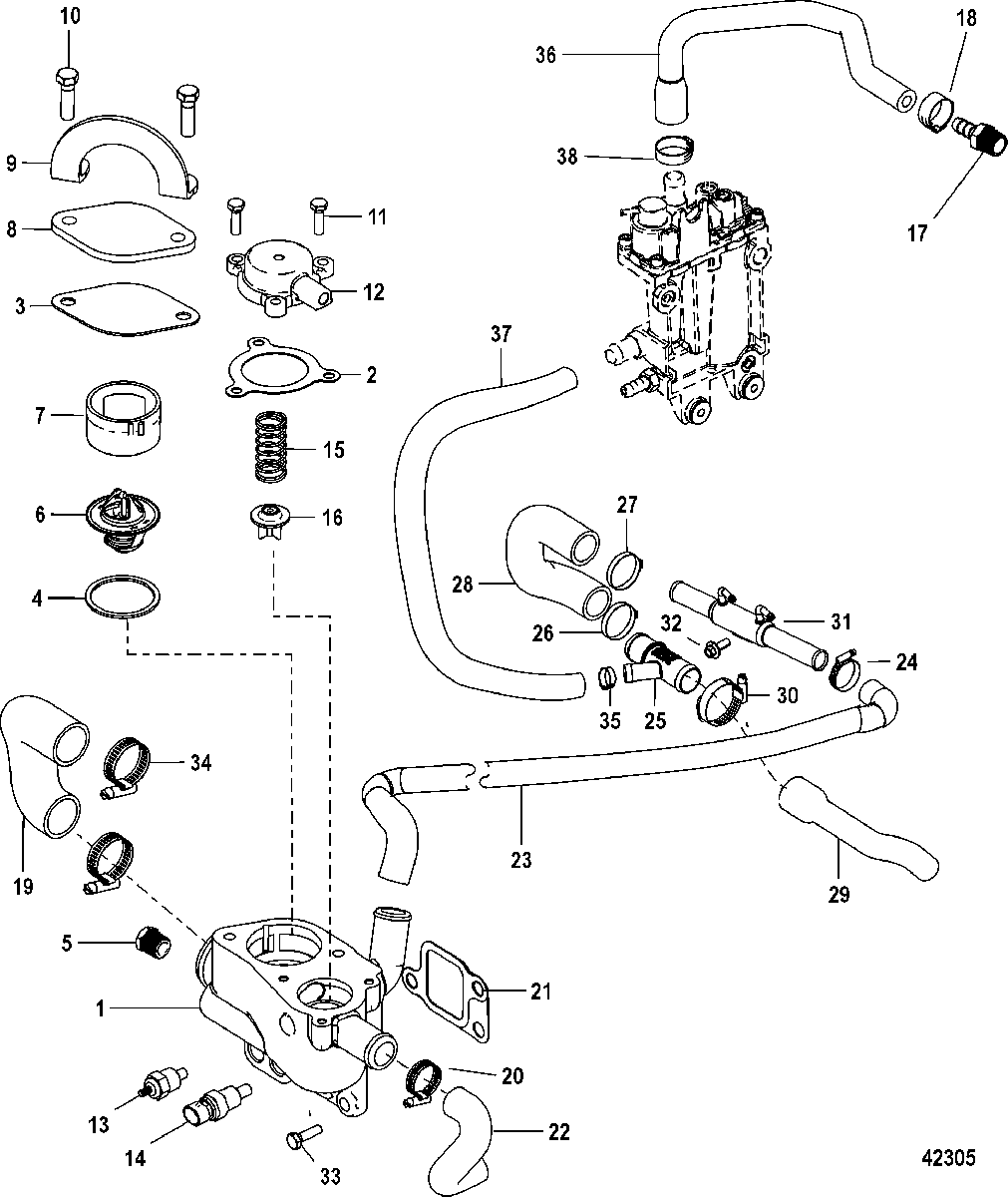

Standard Cooling System, Raw Water with Power Steering для Mercruiser - 3.0L MPI EC 1A072812 & Up

  • №
    Артикул
    Название
  • 1
    879288T11 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 2
    27-8M2010475 GASKET, Poppet Cover
    GASKET, Poppet Cover
  • 3
    27-331792 GASKET
    GASKET
  • 4
    27-806871 GASKET
    GASKET
  • 5
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 6
    8M0109441 THERMOSTAT, 71DegreeC (160 Degree F)
    THERMOSTAT, 71DegreeC (160 Degree F)
  • 7
    23-806922 SLEEVE
    SLEEVE
  • 8
    17494A1 COVER KIT
    COVER KIT
  • 9
    12552 LIFTING EYE
    LIFTING EYE
  • 10
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 11
    10-28668 SCREW, (.250-20 x .875) Stainless Steel
    SCREW, (.250-20 x .875) Stainless Steel
  • 12
    8M2003831 CAP, Thermostat
    CAP, Thermostat
  • 13
    806490T SENDER
    SENDER
  • 14
    805218T SENSOR
    SENSOR
  • 15
    24-42996 SPRING, (Stainless Steel)
    SPRING, (Stainless Steel)
  • 16
    8M2010186 POPPET
    POPPET
  • 17
    22-70834 CONNECTOR, (.375-18) Straight - Brass
    CONNECTOR, (.375-18) Straight - Brass
  • 18
    54-815504210 CLAMP, Worm Gear (16-27 mm)
    CLAMP, Worm Gear (16-27 mm)
  • 19
    32-8M0071007 HOSE
    HOSE
  • 20
    54-815504216 CLAMP, (25 - 40 mm)
    CLAMP, (25 - 40 mm)
  • 21
    27-8M2004290 GASKET, Thermostat Housing
    GASKET, Thermostat Housing
  • 22
    32-8M2004355 HOSE, Housing to Manifold
    HOSE, Housing to Manifold
  • 23
    32-8M2004352 HOSE, Cooler to Thermostat
    HOSE, Cooler to Thermostat
  • 23
    861783 HOSE, Cooler Bypass
    Without Power Steering
    HOSE, Cooler Bypass
    Without Power Steering
  • 24
    54-815504224 CLAMP, (32 - 50 mm)
    CLAMP, (32 - 50 mm)
  • 24
    54-806616 CLAMP, Without Power Steering
    CLAMP, Without Power Steering
  • 25
    22-862993 FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb, Drain
    FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb, Drain
  • 26
    54-8M2000353 CLAMP
    CLAMP
  • 27
    54-888988007 CLAMP, (42.5 mm)
    CLAMP, (42.5 mm)
  • 28
    32-8M2001715 HOSE, Bypass tee to cooler
    HOSE, Bypass tee to cooler
  • NS
    772234 PAD
    PAD
  • 29
    32-8M2001714 HOSE, To Transom
    HOSE, To Transom
  • 30
    54-815504224 CLAMP, (32 - 50 mm)
    CLAMP, (32 - 50 mm)
  • 31
    8M0063119 COOLER, Power Steering
    COOLER, Power Steering
  • 32
    10-816585 SCREW, (.375-18 x .875)
    SCREW, (.375-18 x .875)
  • 33
    10-90059 SCREW, (.375-16 x .875), With Power Steering
    SCREW, (.375-16 x .875), With Power Steering
  • 33
    10-90187 SCREW, (.375-16 x 1.250), With Power Steering
    SCREW, (.375-16 x 1.250), With Power Steering
  • 33
    10-90059 SCREW, (.375-16 x .875), Without Power Steering
    SCREW, (.375-16 x .875), Without Power Steering
  • 34
    54-815504232 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 35
    54-8M2000353 CLAMP
    CLAMP
  • 36
    32-8M2004468 HOSE, To Exhaust Elbow
    HOSE, To Exhaust Elbow
  • 37
    32-8M2001665 HOSE, To Fitting
    HOSE, To Fitting
  • 38
    54-815504105 CLAMP, Worm Gear (12 - 20 mm)
    CLAMP, Worm Gear (12 - 20 mm)
