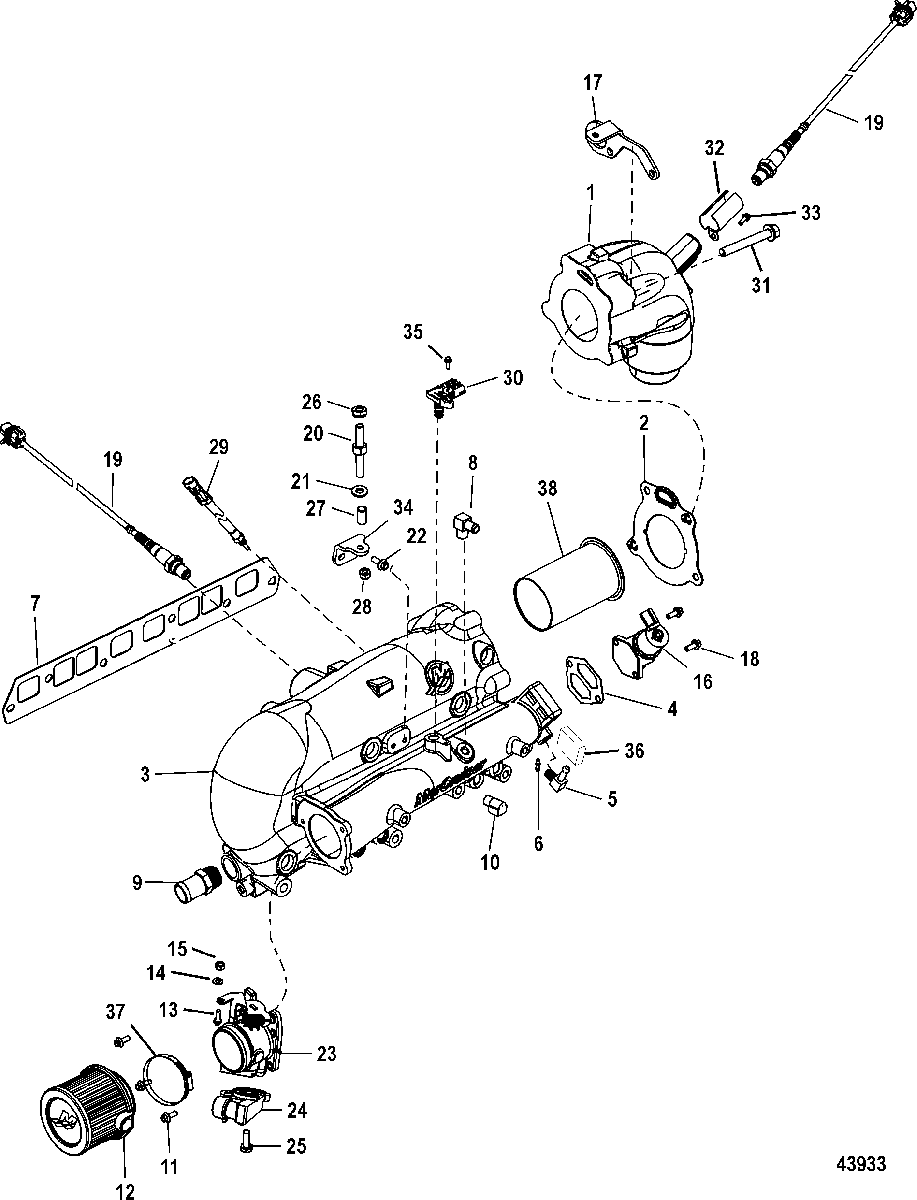

Intake/Exhaust Manifold and Throttle Body для Mercruiser - 3.0L MPI EC 1A072812 & Up

  • №
    Артикул
    Название
  • 1
    8M0104206 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 2
    27-8M2004209 GASKET
    GASKET
  • 3
    8M0104205 MANIFOLD ASSEMBLY
    MANIFOLD ASSEMBLY
  • 4
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 5
    22-54090 ELBOW
    ELBOW
  • 6
    22-805598 FITTING, (.1875) Barb
    FITTING, (.1875) Barb
  • 7
    27-815528 GASKET
    GASKET
  • 8
    22-8M2015190 FITTING, Elbow
    FITTING, Elbow
  • 9
    22-866725 FITTING, Straight (.750-14)
    FITTING, Straight (.750-14)
  • 10
    22-46982 FITTING, (90 Degree)
    FITTING, (90 Degree)
  • 11
    10-8175051 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 12
    866699T FLAME ARRESTOR
    FLAME ARRESTOR
  • 13
    16-805526 STUD, (.250-28 x 1.540)
    STUD, (.250-28 x 1.540)
  • 14
    12-20533 WASHER
    WASHER
  • 15
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 16
    862998 VALVE, Idle Air
    VALVE, Idle Air
  • 17
    8M2005638 LIFTING EYE
    LIFTING EYE
  • 18
    10-8175051 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 19
    8M2003959 SENSOR, Oxygen
    SENSOR, Oxygen
  • 20
    16-8M0113178 STUD, (.250-28 x 2.00)
    STUD, (.250-28 x 2.00)
  • 21
    12-20533 WASHER
    WASHER
  • 22
    10-816928 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 23
    879288T09 THROTTLE BODY ASSEMBLY
    THROTTLE BODY ASSEMBLY
  • 24
    8M0125617 SENSOR, Position
    SENSOR, Position
  • 25
    10-8M0009542 SCREW KIT, (M5 x 17)
    SCREW KIT, (M5 x 17)
  • 26
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 27
    23-31866 SPACER, (.256 x .313 x .625)
    SPACER, (.256 x .313 x .625)
  • 28
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 29
    885342002 SENSOR ASSEMBLY, Temperature
    SENSOR ASSEMBLY, Temperature
  • 30
    879150T19 SENSOR
    SENSOR
  • 31
    10-865982019 SCREW, (3/8 - 16 X 2.75) Hex
    SCREW, (3/8 - 16 X 2.75) Hex
  • 32
    8M2004597 BRACKET, Cover, Oxygen Sensor
    BRACKET, Cover, Oxygen Sensor
  • 33
    10-8M2007128 SCREW, (1/4-20) Hex Flange
    SCREW, (1/4-20) Hex Flange
  • 34
    8M2001644 BRACKET, Throttle Cable
    BRACKET, Throttle Cable
  • 35
    10-8M2008409 SCREW, (#8-32) Hex Flange Head
    SCREW, (#8-32) Hex Flange Head
  • 36
    35-865266 FILTER
    FILTER
  • 37
    54-815504244 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 38
    879288T18 CATALYST
    CATALYST
