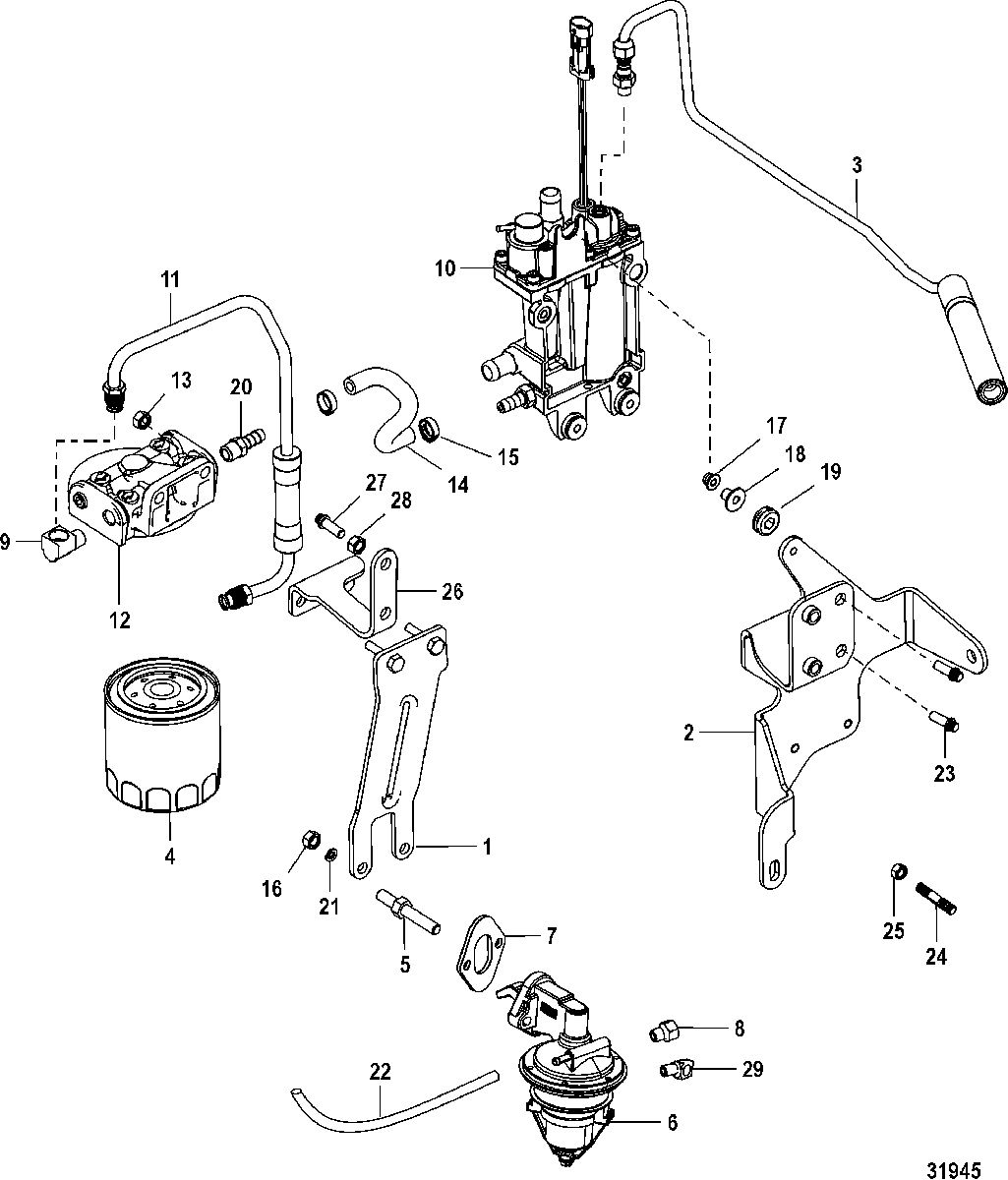

Fuel Supply System для Mercruiser - 3.0L MPI EC 1A072812 & Up

  • №
    Артикул
    Название
  • 1
    865974 BRACKET, Filter Base
    BRACKET, Filter Base
  • 2
    8M2001661 BRACKET, Fuel Module
    BRACKET, Fuel Module
  • 3
    32-8M2001730 LINE, Fuel, Fuel pump to fuel rail
    LINE, Fuel, Fuel pump to fuel rail
  • 4
    35-866594K01 FILTER, Fuel - Spin On
    FILTER, Fuel - Spin On
  • 5
    16-866199 STUD
    STUD
  • 6
    8M0073435 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 7
    27-8M0108647 GASKET
    GASKET
  • 8
    22-33821 CONNECTOR
    CONNECTOR
  • 9
    22-93385 FITTING, (90 Degree)
    FITTING, (90 Degree)
  • 10
    866596T01 MODULE, Fuel Pump
    MODULE, Fuel Pump
  • 11
    32-8M0045996 LINE, Fuel
    SN# 1A607644 & Up
    LINE, Fuel
    SN# 1A607644 & Up
  • 11
    32-8M0045996 LINE, Fuel
    SN# 1A607645 & Up
    LINE, Fuel
    SN# 1A607645 & Up
  • 12
    805373T19 BASE ASSEMBLY, Fuel Filter
    BASE ASSEMBLY, Fuel Filter
  • 13
    11-82670811 NUT, (.312-24)
    NUT, (.312-24)
  • 14
    32-8M2013947 HOSE, Filter to Module
    HOSE, Filter to Module
  • 15
    54-8M2001016 CLAMP, (18.5 mm)
    CLAMP, (18.5 mm)
  • 16
    11-68292 NUT, (.312-18)
    NUT, (.312-18)
  • 17
    11-892233 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 18
    23-856954 BUSHING
    BUSHING
  • 19
    25-834985 GROMMET
    GROMMET
  • 20
    22-8M2000805 FITTING
    FITTING
  • 21
    12-26825 WASHER, (.328 x .750 x .06)
    WASHER, (.328 x .750 x .06)
  • 22
    32-7381567 TUBING, (42.00 Inches Bulk), Vent
    Cut to 30 Inch Length
    TUBING, (42.00 Inches Bulk), Vent
    Cut to 30 Inch Length
  • 23
    10-8M0113180 SCREW, (.375-16 x 1.00), Fuel Module Bracket to Shift Plate Bracket
    SCREW, (.375-16 x 1.00), Fuel Module Bracket to Shift Plate Bracket
  • 24
    16-8M2008929 STUD, (5/16-18 x 1.25)
    STUD, (5/16-18 x 1.25)
  • 25
    11-21908 NUT, (.312-18) Cad Plated
    NUT, (.312-18) Cad Plated
  • 26
    865975001 BRACKET, Filter Base, Secondary
    BRACKET, Filter Base, Secondary
  • 27
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 28
    11-82670811 NUT, (.312-24)
    NUT, (.312-24)
  • 29
    22-865908 FITTING, 1/4 Male to 3/8 Female, Inlet Fuel
    FITTING, 1/4 Male to 3/8 Female, Inlet Fuel
